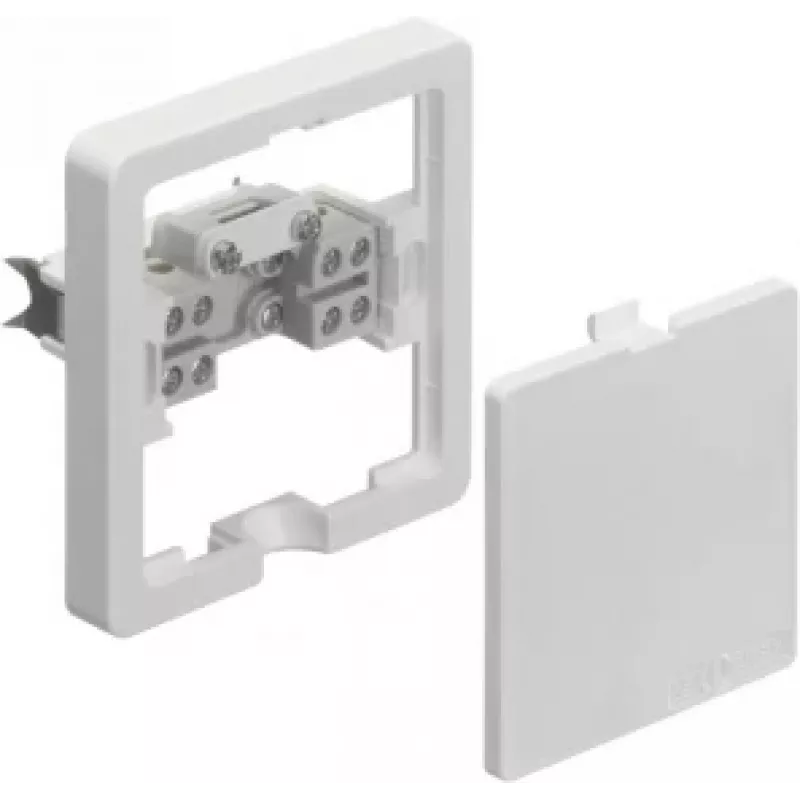

ABL SURSUM 2506110 presa Schuko da incasso bianco

Single Schuko socket outlet for flush-mounted installation, featuring integrated child protection and screw terminals for secure conductor connection up to 2.5 mm².

Advantages

The socket is made of halogen-free thermoplastic in polar white (RAL 9010) with a glossy finish, providing a clean look for residential and commercial spaces. Integrated child protection increases safety by preventing accidental contact with live parts.

Suitable for

• Residential electrical installations
• Commercial buildings
• Standard flush-mounted boxes

Key specifications

• Socket type: Schuko (Type F, CEE 7/3)
• Number of sockets: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Mounting type: Flush-mounted (Unterputz)
• Connection type: Screw terminals
• Terminal capacity: up to 2.5 mm² rigid conductors
• Material: Thermoplastic
• Colour: White (Polar White, RAL 9010)
• Surface finish: Glossy
• Child protection: Yes (integrated)
• IP protection class: IP20
• Halogen-free: Yes

Recommendations

Ideal for new installations or replacements where a reliable and safe Schuko socket is required.
