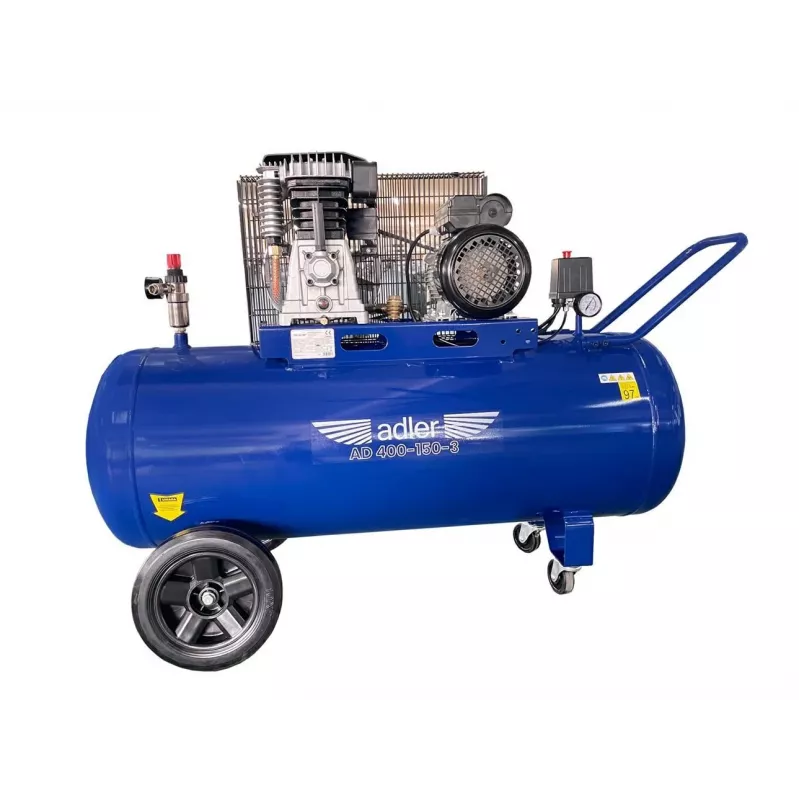

Adler 150L compressore ad aria a trasmissione a cinghia AD400-150-3 230V

For workshops and garages needing a dependable high-volume air supply, the Adler AD400-150-3 delivers 320 L/min effective air delivery from a 150 L tank. The oil-lubricated twin-cylinder pump is belt-driven by a 3 kW motor, reaching a maximum pressure of 10 bar. Two quick couplers allow simultaneous tool connection, and the wheeled design with swivel brakes provides mobility around the workspace.

Key specifications

• Tank capacity: 150 L
• Motor power: 3 kW (4 HP)
• Voltage: 230 V, 50 Hz
• Max operating pressure: 10 bar (145 PSI)
• Suction capacity: 400 L/min
• Effective air delivery: 320 L/min
• Pump type: Oil-lubricated piston, belt-driven
• Number of cylinders: 2
• Pump speed: 1450 rpm
• Noise level: 97 dB (LwA)
• Pressure gauges: 2 (tank & regulated pressure)
• Output connectors: 2 x quick coupler
• Mobility: 2 fixed wheels, 2 swivel with brake
• Safety features: Safety valve, thermal overload protection
• Drain valve: Yes (for condensate)
• Cylinder material: Cast iron

Why choose it

The 150 L tank provides a large air reserve, reducing pump cycling and ensuring stable pressure for demanding tools. Belt drive and cast iron cylinders contribute to durability, while the two quick couplers allow multiple tools to be connected without changing hoses.

Ideal use cases

• Automotive repair and tyre inflation
• Spray painting and sandblasting
• Operating air wrenches, ratchets, and hammers
• Workshop air supply for multiple tools

Good to know

The compressor operates at 97 dB (LwA); hearing protection is recommended. The oil-lubricated pump requires periodic oil level checks. The wheeled base with brakes allows secure positioning on flat surfaces.
