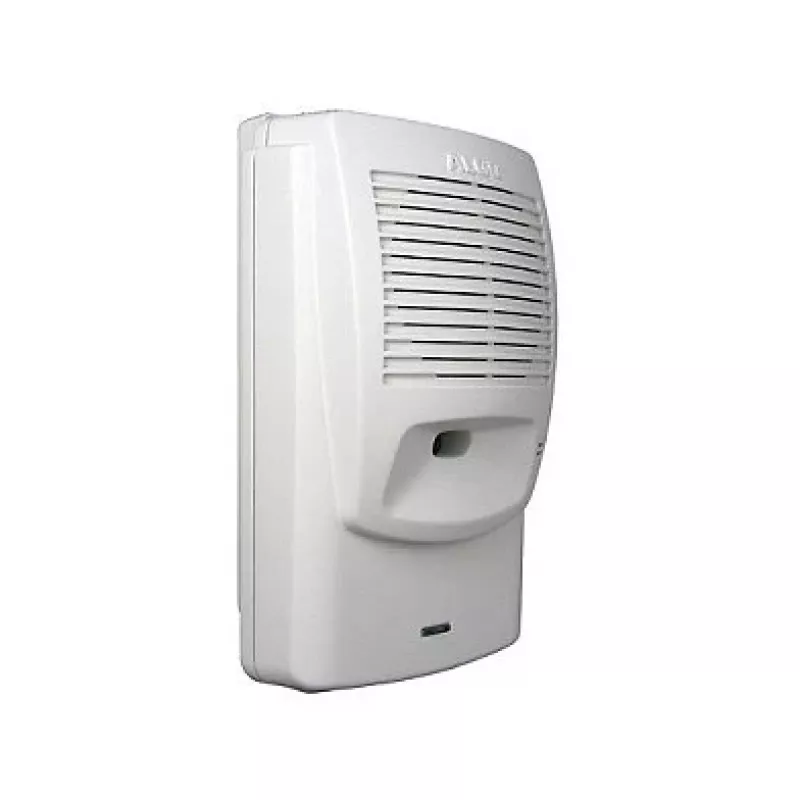

ALGO 8180 IP Audio Alerter – Adattatore SIP paging e scheduler con amplificatore 15W, PoE, multicast, programmazione campanelle

Delivering 15W RMS of clear, intelligible audio over your IP network, the ALGO 8180 IP Audio Alerter is a powerful SIP paging adapter and scheduler that integrates seamlessly into existing VoIP environments. With support for up to 16 SIP registrations, it handles paging, alerting, and background music with ease, while advanced features like multicast paging and bell scheduling (up to 1000 schedules) make it ideal for schools, warehouses, and offices.

Overview

The ALGO 8180 is a versatile IP audio endpoint designed for demanding communication needs. It connects via 10/100BASE-T Ethernet and can be powered by PoE (IEEE 802.3af Class 0) or a 48V DC supply, simplifying installation. The device supports wideband audio codecs including G.711, G.722, and G.729, ensuring clear and efficient voice transmission. Its web-based management interface and auto-provisioning capabilities facilitate easy deployment and configuration.

What stands out

• High-output 15W RMS Class D amplifier for driving 8-ohm speakers, providing clear audio even in noisy environments.
• Multicast support enables efficient one-to-many paging and background music distribution across the network.
• Flexible bell scheduling with up to 1000 schedules allows automated alerts for school bells, shift changes, or break reminders.
• Integrated relay output (Form C) and dry contact input expand integration options with door strikes, strobes, or other external systems.
• Robust security features including TLS, SRTP, and 802.1X ensure secure communications.

Technical details

• Product Type: SIP Paging Adapter & Scheduler
• Connectivity: 10/100BASE-T Ethernet
• Power Input: Power over Ethernet (PoE) IEEE 802.3af Class 0 or 48V DC
• Amplifier Output: 15W RMS Class D (8 Ohm speaker)
• Audio Codecs: G.711 (a-law, μ-law), G.722, G.729
• SIP Registrations: Up to 16 lines
• Multicast Support: Yes (Paging, Background Music)
• Bell Scheduling: Yes, up to 1000 schedules
• Relay Output: 1 x Form C (NO/NC)
• Auxiliary Audio Input: 1 x 3.5mm line-level
• Auxiliary Audio Output: 1 x 3.5mm line-level
• Input Trigger: 1 x Dry contact input
• Management Interface: Web-based, Auto-provisioning
• Supported Protocols: SIP (RFC 3261), RTP, RTCP, SRTP, DHCP, NTP, HTTP, HTTPS, TFTP, FTP, DNS, LLDP-MED, CDP
• Mounting Options: Wall or surface mount
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Security Features: TLS, SRTP, 802.1X
• Housing Material: ABS Plastic

Our verdict

The ALGO 8180 IP Audio Alerter is a robust and feature-rich solution for any organization needing reliable IP-based paging, alerting, and scheduling. Its high-output amplifier, extensive codec support, and flexible integration options make it a top choice for professional deployments.
