Alimentatore Akyga AK-B1-700BE 700 W

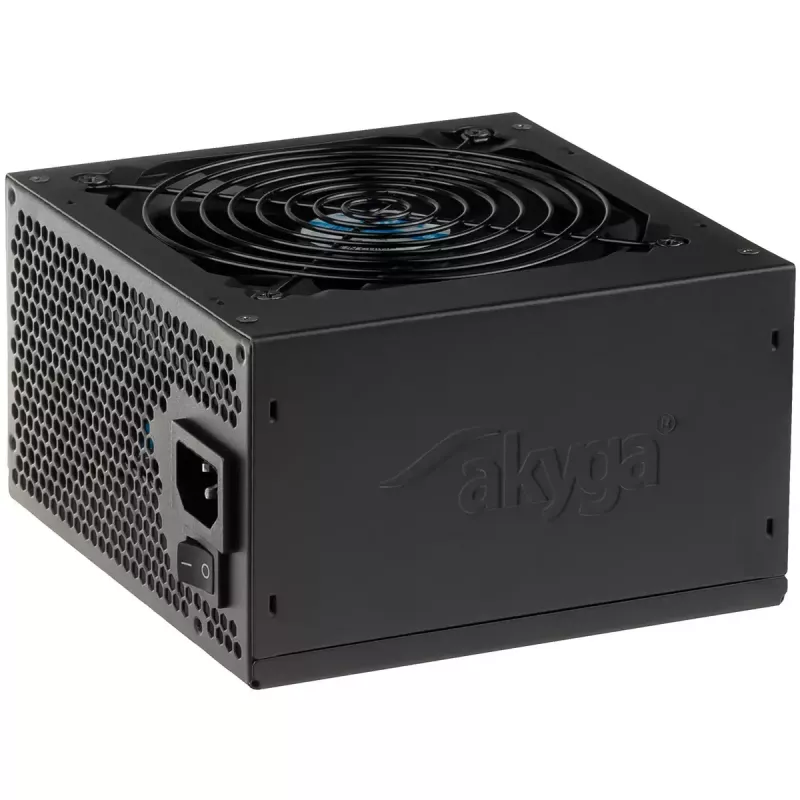

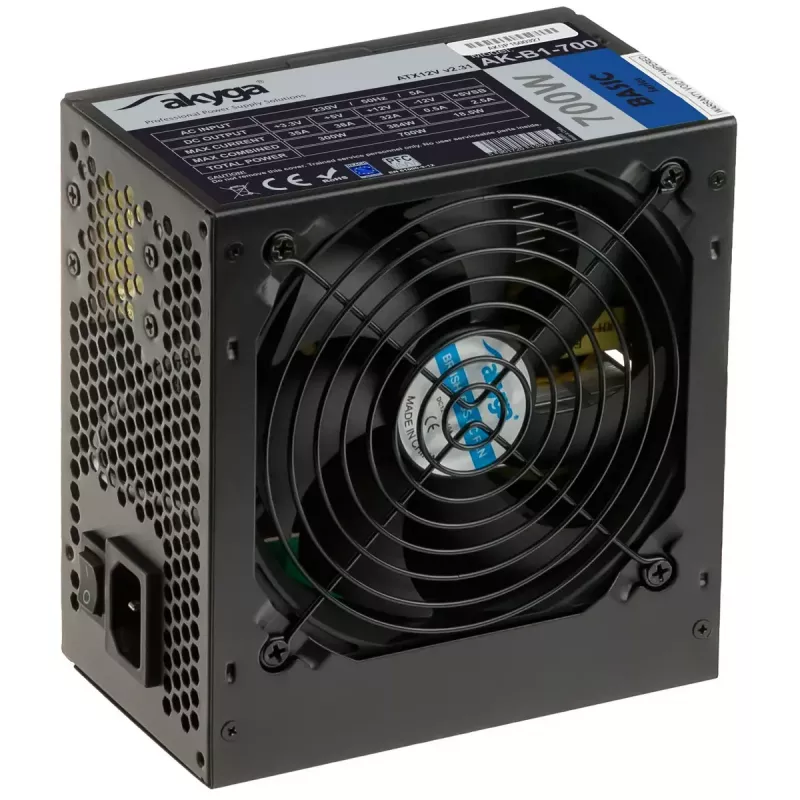

Akyga AK-B1-700BE is a Basic-series ATX power supply with a rated output of 700 W. Designed for desktop computers, the unit provides standard non-modular cabling and complies with ATX12V version 2.31. The PSU comes in black and includes a built-in 120 mm fan for cooling and a manual power switch for safe disconnection from the mains without unplugging the power cord.

Advantages

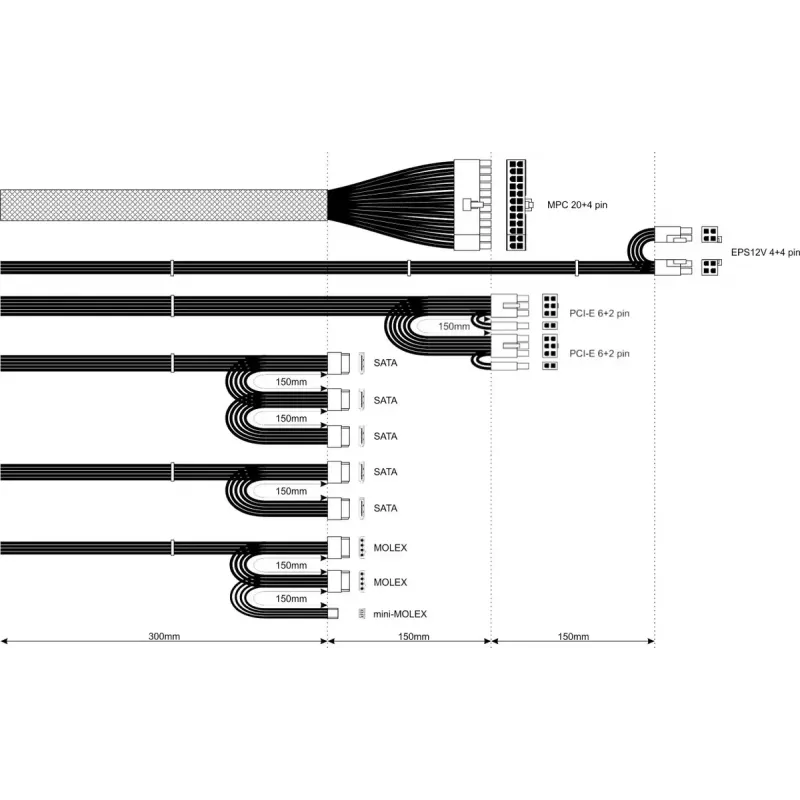

The power supply provides a stable 700 W output and includes a wide set of connectors: a universal 24-pin motherboard connector, EPS12V 4+4-pin, PCI-E 6-pin and 6+2-pin, mini-MOLEX, two MOLEX and five SATA connectors, allowing connection of common PC components. Built-in protections (OVP, OCP, OPP, OTP, SCP) and a PFC filter improve operational safety and reduce risk of component damage. Certification for CE, FCC and RoHS and an MTBF of 100,000 hours indicate compliance with safety and reliability standards.

Suitable for

• Office and home desktop PCs
• Basic multimedia and internet browsing systems
• Entry-level gaming rigs with single GPU
• Systems requiring multiple SATA drives and legacy MOLEX devices

Key specifications

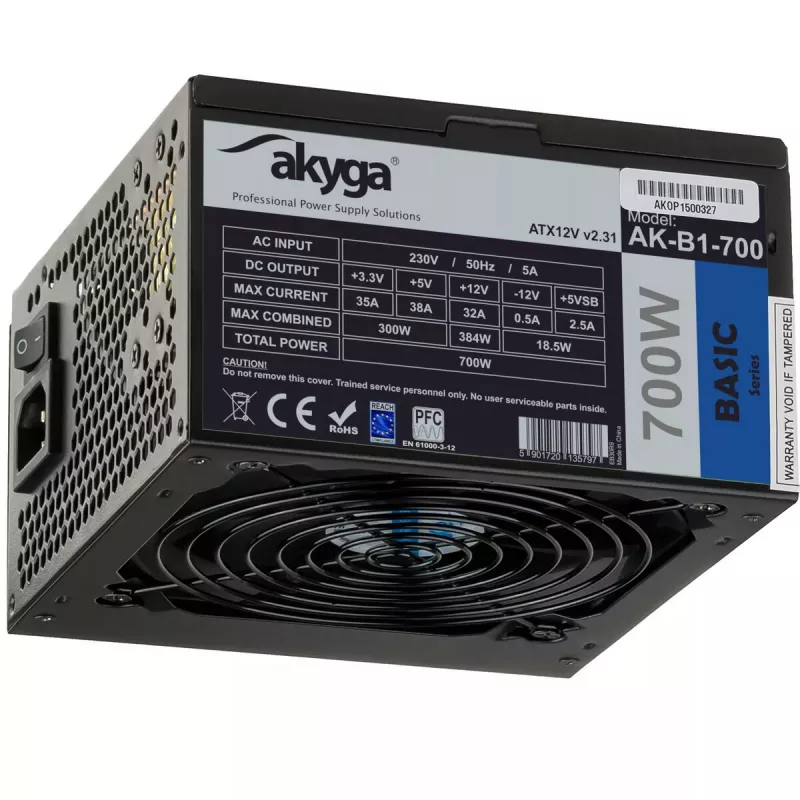

• Total power: 700 W
• Efficiency: 70%
• Motherboard connector: 24-pin ATX
• EPS connector: 4+4-pin
• PCI-E connectors: 6-pin and 6+2-pin
• Drives and peripherals: 5 × SATA, 2 × MOLEX, 1 × mini-MOLEX
• Fan diameter: 120 mm
• AC input: 230 V, 50 Hz
• Certifications: CE, FCC, RoHS
• MTBF: 100,000 hours
• Colour: Black
• Weight: 1.26 kg

How to use

Install the Akyga AK-B1-700BE into a compatible ATX computer case following standard PSU mounting procedures. Connect the 24-pin ATX cable to the motherboard, attach the EPS12V 4+4-pin to the CPU power header, and use the PCI-E and peripheral connectors for graphic cards, drives and accessories as required. Ensure the mains switch is off during installation, secure all connectors, and only then switch the unit on at the rear manual switch and the mains outlet.

Recommendations

Use this PSU in systems that match its power and connector set; avoid overloading beyond rated 700 W. Maintain adequate case ventilation for the 120 mm fan to operate efficiently and periodically check cables and connectors for secure seating. For safety and longevity, connect to a surge protector or UPS and follow local electrical regulations when installing.
