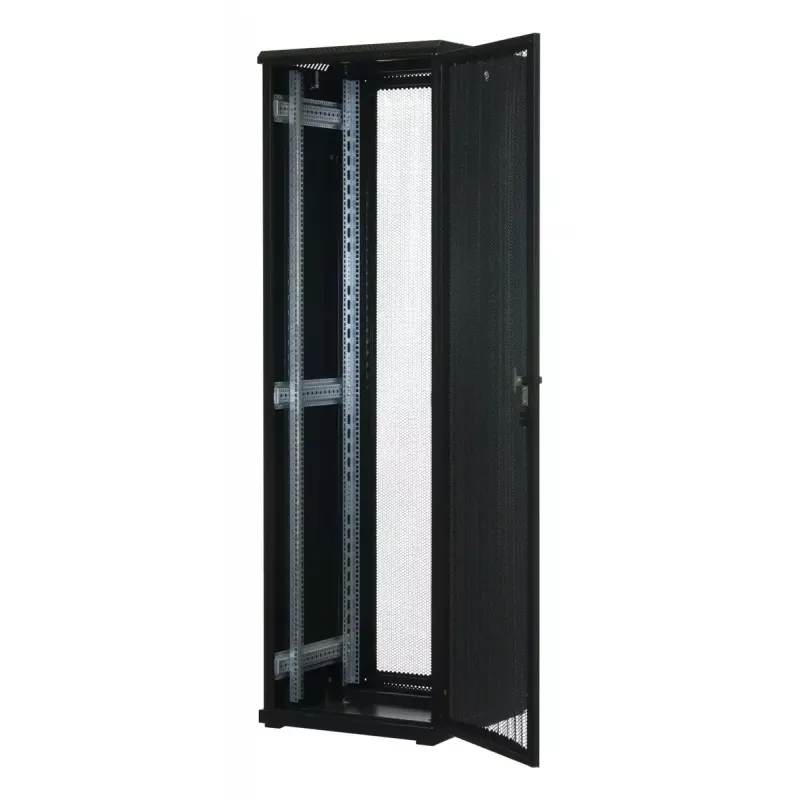

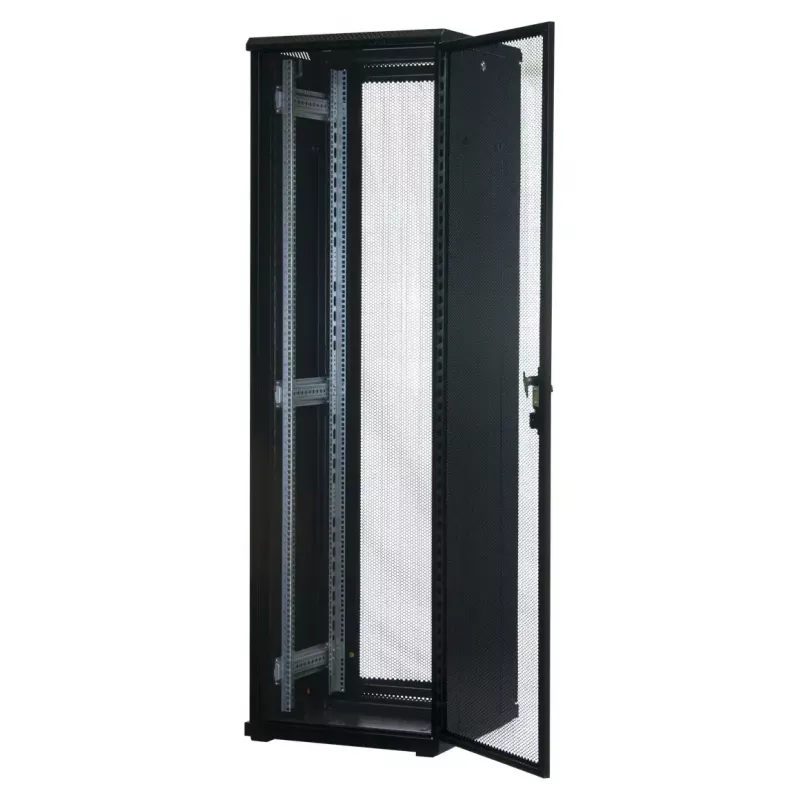

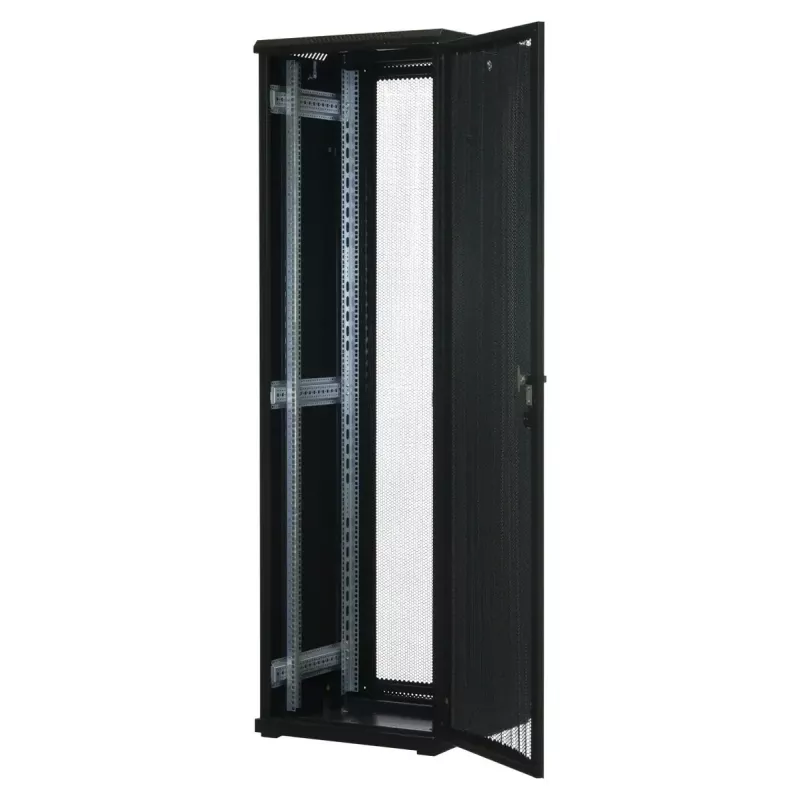

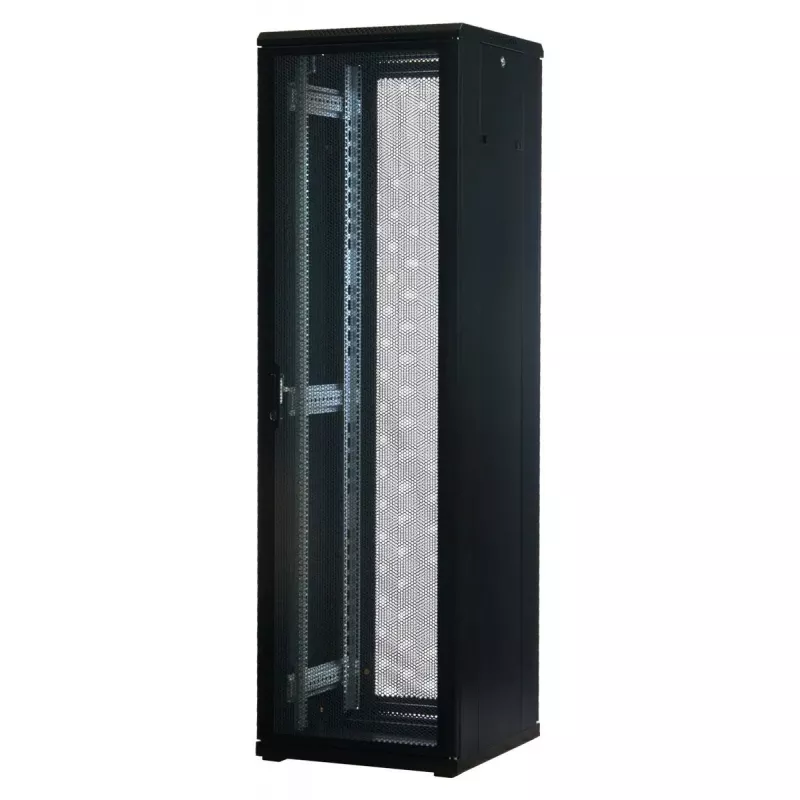

Armadio rack 42U 19" Rockstable RS19-6642PP porte a rete

The Rockstable RS19-6642PP 42U 19" server cabinet is designed for reliable equipment housing in data centers and IT rooms. It has mesh front and rear doors to optimise airflow and maintain security, galvanized mounting profiles with U-division markings and ESD protection, and a lockable rear steel door for convenient installation and maintenance. Detachable side walls, selectable door hinge direction, adjustable air shafts and integrated cable ducts support flexible cable management and access. The cabinet is delivered fully pre-assembled and is available with a wide range of compatible accessories.

Advantages

The cabinet provides high stability and security with a steel construction and a wide opening angle of at least 120° for easy component access. Mounting profiles are adjustable in depth and include U-Division markings for precise equipment mounting. Airflow is supported by mesh doors and manually adjustable air vents at top and bottom. Side walls and doors are removable and lockable, and the unit includes ESD protection on the mounting profiles.

Suitable for

• Data centres and server rooms
• Network equipment racks (switches, routers, patch panels)
• Storage of 19" rack-mount servers and appliances
• IT maintenance and service environments

Key specifications

• Rack units: 42U
• Form factor: 19" server cabinet
• Doors: mesh front and rear
• Material: steel with galvanized mounting profiles
• Load capacity: 800 kg
• Colour: black
• Side panels: removable
• Back and front doors: removable; hinge direction changeable (right or left)
• Cable management: integrated top and bottom cable ducts (covers optional)
• Airflow: adjustable air shafts at top and bottom; minimum 120° door opening angle
• ESD protection: mounting profiles with anti-static protection
• Delivery: fully pre-assembled
• Brand/model: Rockstable RS19-6642PP, EAN 4260714310895

How to use

Position the cabinet on a level surface and, if necessary, secure it according to local installation guidelines. Install 19" equipment using the galvanized mounting profiles and U-Division markings to align rack units; adjust the mounting depth as required. Route power and data cables through the integrated top and bottom cable ducts; install optional cover panels if needed. Use the removable side panels and the wide-opening mesh doors to access equipment for installation and maintenance. Adjust the air shafts to regulate airflow and close or open vents as required for thermal management. Lock doors and panels after installation to secure the equipment.

Recommendations

For best results in server and network environments, plan rack layouts to maintain clear airflow paths, distribute load evenly up to the 800 kg limit, and use compatible accessories from Rockstable for cable management and grounding. Verify ESD precautions when installing sensitive components and follow data centre cooling and safety guidelines.
