Scheda grafica AMD Radeon RX 6800 XT 16 GB GDDR6

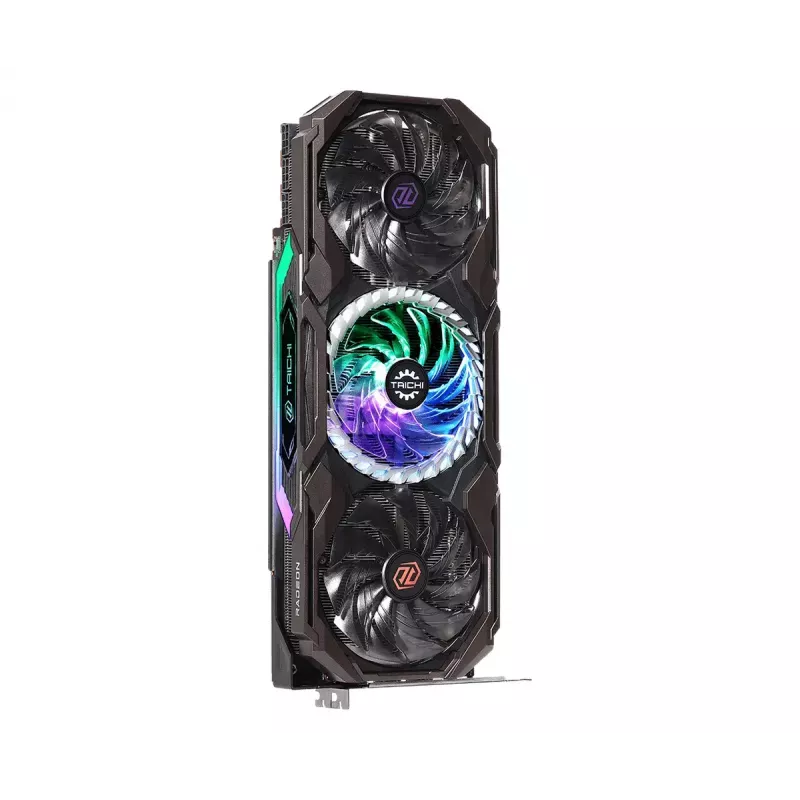

The ASRock Graphics Card AMD Radeon RX 6800 XT 16 GB GDDR6 combines the Radeon RX 6800 XT graphics processor with 16 GB of GDDR6 memory and a 256-bit memory bus to deliver high-resolution rendering and fast frame rates. Designed for demanding gaming and professional graphics workloads, the card supports a maximum resolution of 7680 x 4320 pixels and is compatible with DirectX 12.0 and OpenGL 4.6. The PCI Express 4.0 interface enables high-bandwidth communication with modern motherboards while a triple-fan cooling solution and reinforced metal frame maintain thermal stability and structural integrity.

Advantages

The 16 GB GDDR6 memory and 256-bit memory bus provide a large memory buffer and wide bandwidth for texture-heavy scenes and high-resolution displays. The Taichi 3X cooling system and Striped Axial Fans improve airflow and reduce operating temperatures while 0dB Silent Cooling pauses fans at low temperatures to minimize noise. An ARGB metal backplate and Polychrome SYNC compatibility allow customizable lighting that can be synchronized with supported ASRock motherboards. The reinforced metal frame reduces PCB flex for improved durability during installation and long-term use.

Suitable for

• High-resolution gaming at 1440p and 4K settings
• Content creation workflows including video editing and 3D rendering
• Multi-monitor setups and ultra-high-definition displays
• Systems requiring silent operation during light loads

Key specifications

• Graphics processor: Radeon RX 6800 XT
• Memory capacity: 16 GB GDDR6
• Memory bus width: 256 bit
• Interface: PCI Express 4.0
• Maximum supported resolution: 7680 x 4320 pixels

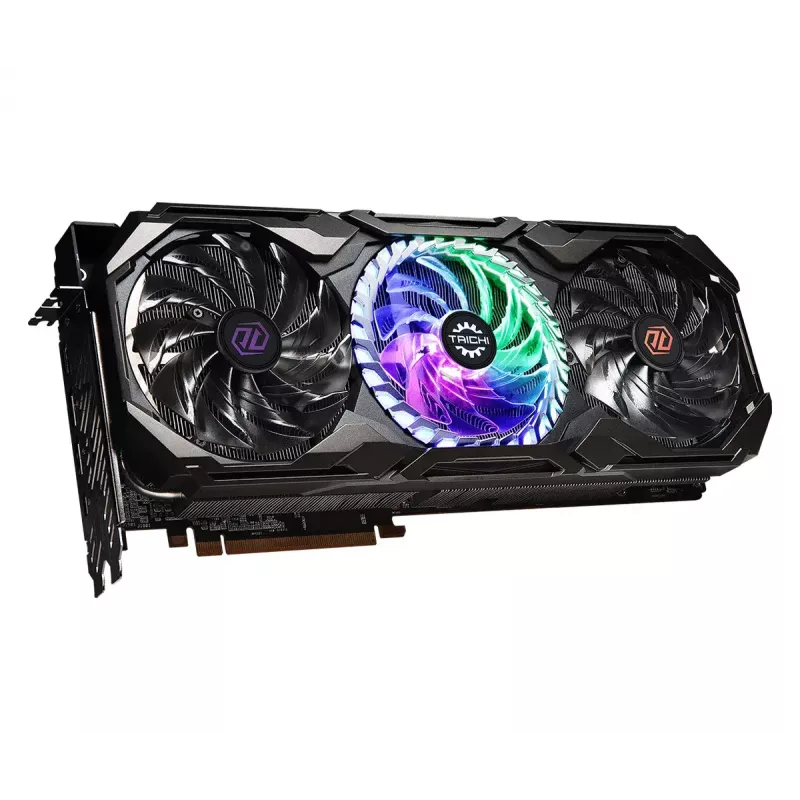

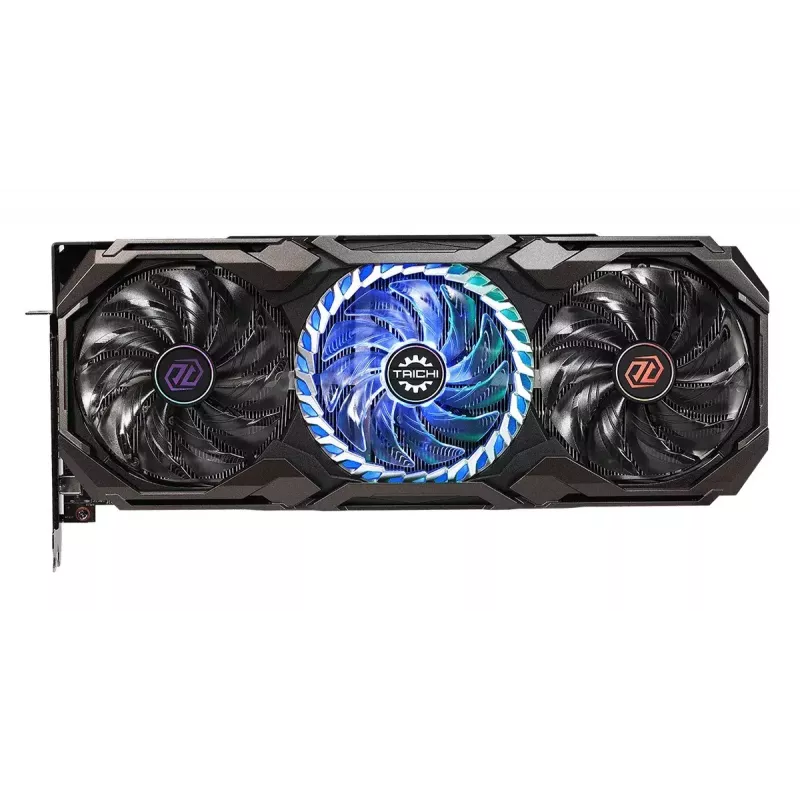

• Cooling: Taichi 3X triple-fan design with Striped Axial Fans and 0dB Silent Cooling

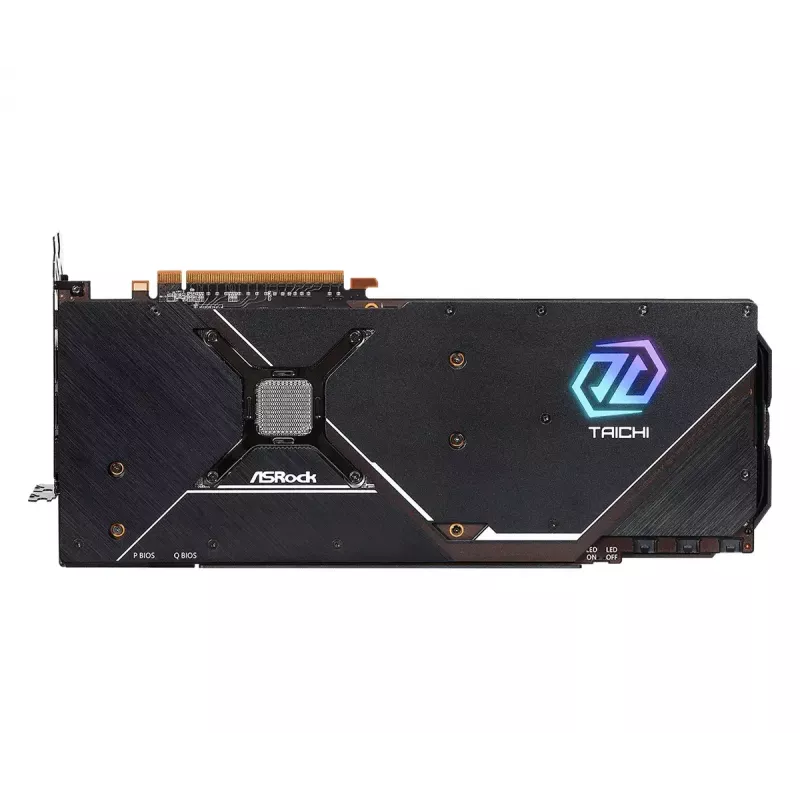

• Chassis features: ARGB metal backplate, reinforced metal frame
• Supported APIs: DirectX 12.0, OpenGL 4.6
• Weight: 1.815 kg

How to use

Install the card into a compatible PCI Express 4.0 x16 slot on a motherboard with sufficient physical clearance and power delivery. Connect any required auxiliary power cables according to the power specifications of the system and secure the card to the chassis using the mounting bracket. Install the latest AMD graphics drivers and, if desired, ASRock Polychrome SYNC software to configure ARGB lighting. After installation, monitor temperatures and fan behavior during initial use to verify the Taichi 3X cooling and 0dB Silent Cooling operate as expected.

Recommendations

For optimal thermal performance, ensure your PC case has adequate intake and exhaust airflow and avoid obstructing the fans. Use manufacturer drivers and firmware updates to maintain compatibility and stability. When using ARGB lighting synchronized across components, check motherboard compatibility with Polychrome SYNC to prevent conflicts. For long rendering or gaming sessions, monitor GPU temperatures and ensure the power supply can deliver stable output for peak loads.
