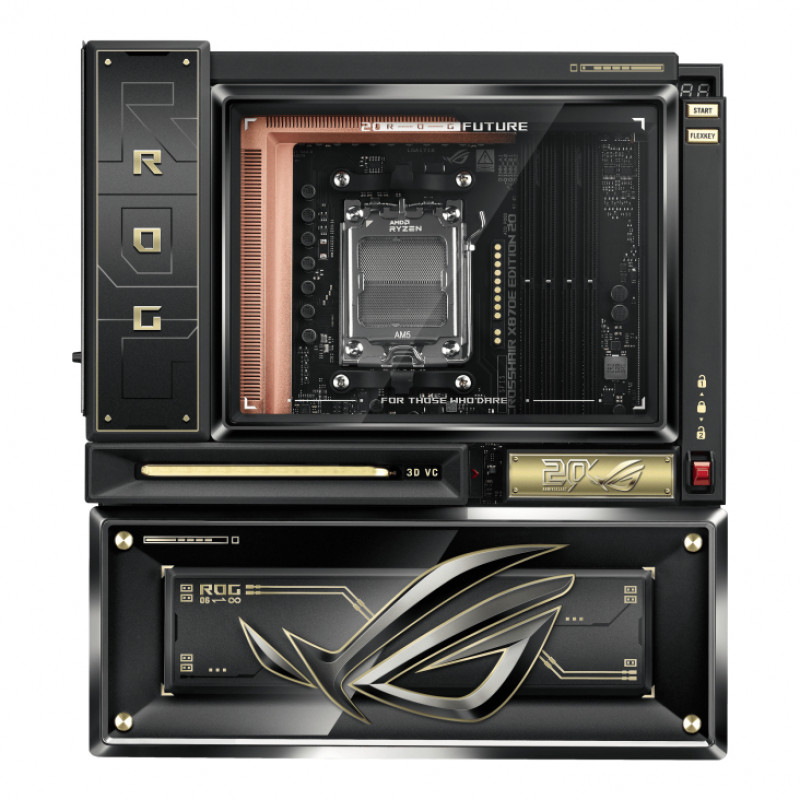

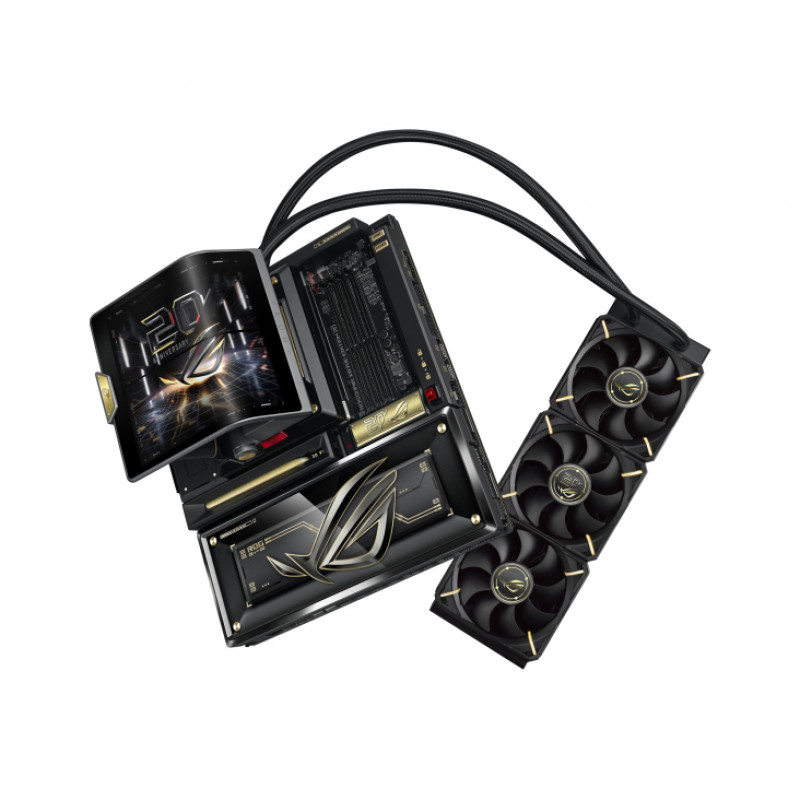

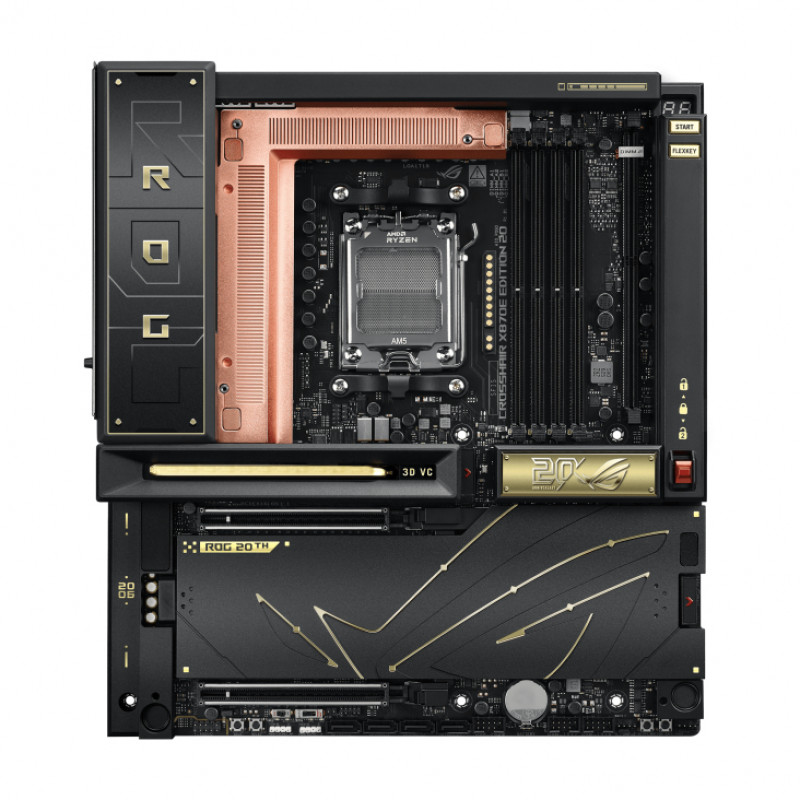

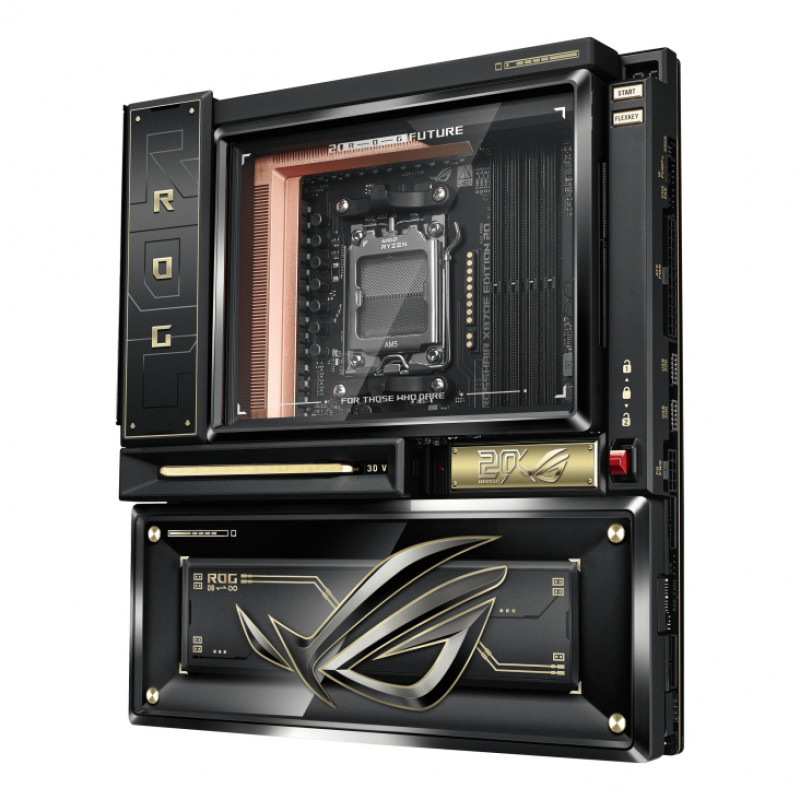

ASUS ROG CROSSHAIR X870E EDITION 20 scheda madre

The ASUS ROG CROSSHAIR X870E EDITION 20 is a flagship AMD X870E motherboard built for extreme overclocking and high-performance gaming. Its most compelling strength is the robust 20+2+2 power stage design, delivering clean, stable power to unleash the full potential of Ryzen 9000 series processors.

Advantages

Engineered for enthusiasts, this board features premium components including high-quality chokes and capacitors, ensuring durability under heavy loads. The advanced VRM cooling with large heatsinks and heatpipe keeps temperatures in check during intense sessions. DDR5 memory support with speeds up to 8000+ MHz (OC) and PCIe 5.0 slots for graphics and M.2 storage provide cutting-edge bandwidth. Exclusive ROG technologies like AI Overclocking, AI Cooling II, and Dynamic OC Switcher simplify tuning for maximum performance. The board also includes Wi-Fi 7, 5G Ethernet, and a rich rear I/O with USB4 ports for high-speed connectivity.

Suitable for

• Hardcore gamers seeking top-tier performance and stability
• Overclockers who demand precise power delivery and cooling
• PC builders creating a premium AMD Ryzen 9000 system
• Content creators needing high-speed storage and networking
• Enthusiasts wanting a feature-rich motherboard with future-proof connectivity

Key specifications

• Chipset: AMD X870E
• Socket: AM5 (supports Ryzen 7000/8000/9000 series)
• Memory: 4x DDR5 DIMM, up to 192GB, speeds up to 8000+ MHz (OC)
• Expansion slots: 2x PCIe 5.0 x16 (x16 or x8/x8), 1x PCIe 4.0 x16 (x4 mode)
• Storage: 5x M.2 slots (3x PCIe 5.0 x4, 2x PCIe 4.0 x4), 4x SATA 6Gb/s
• Networking: Wi-Fi 7 (802.11be) 2x2, Bluetooth 5.4, 1x Realtek 5G Ethernet, 1x Intel 2.5G Ethernet
• Rear USB: 2x USB4 (40Gbps, Type-C), 1x USB 10Gbps Type-C, 8x USB 10Gbps Type-A, 2x USB 5Gbps Type-A
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
• Form factor: ATX (30.5cm x 24.4cm)
• Special features: AI Overclocking, AI Cooling II, Dynamic OC Switcher, Core Flex, PBO Enhancement, USB Wattage Watcher, Q-Release, M.2 Q-Latch, BIOS FlashBack, Clear CMOS, Start button, FlexKey, Q-Code, Q-LED

Recommendations

Pair this motherboard with a Ryzen 9 9950X or Ryzen 7 9800X3D, a high-end air cooler or 360mm AIO, and DDR5-6000 CL30 memory for an optimal balance of performance and stability. Ensure your case supports ATX and has good airflow for the VRM heatsinks. Update to the latest BIOS for full Ryzen 9000 support and enable EXPO profiles for memory overclocking.
