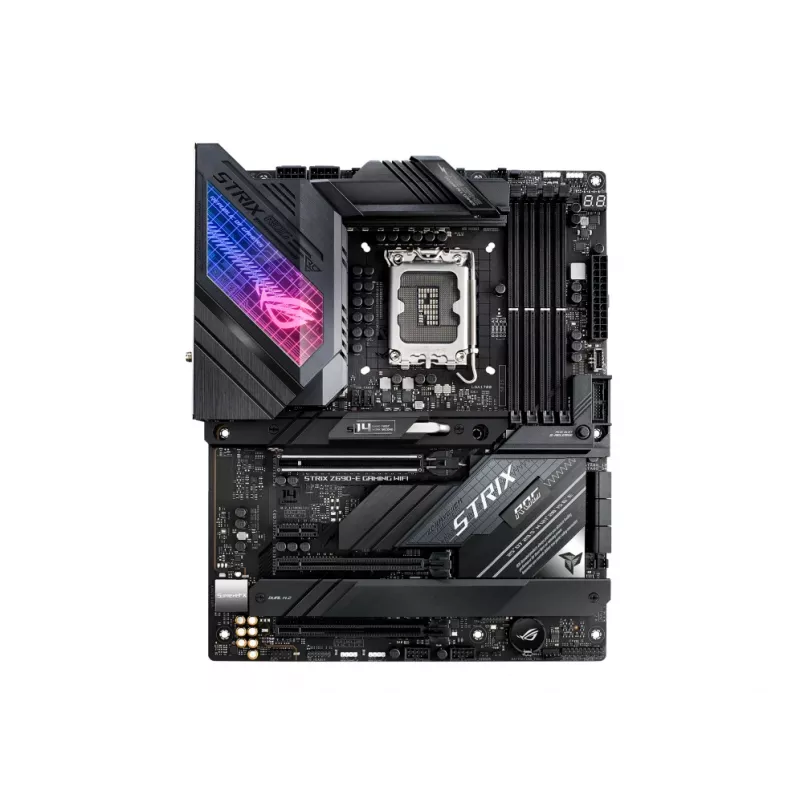

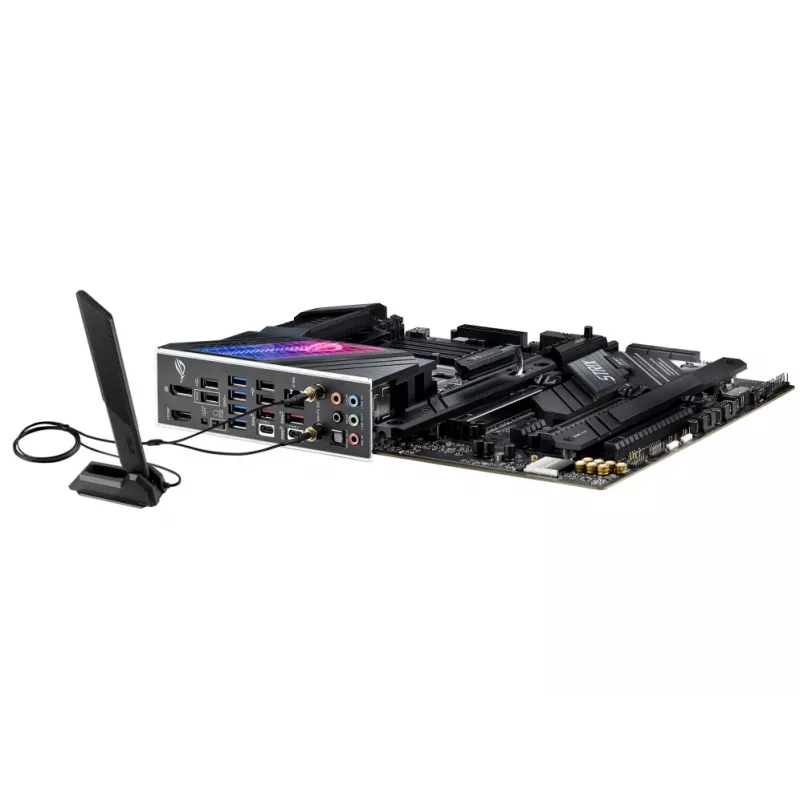

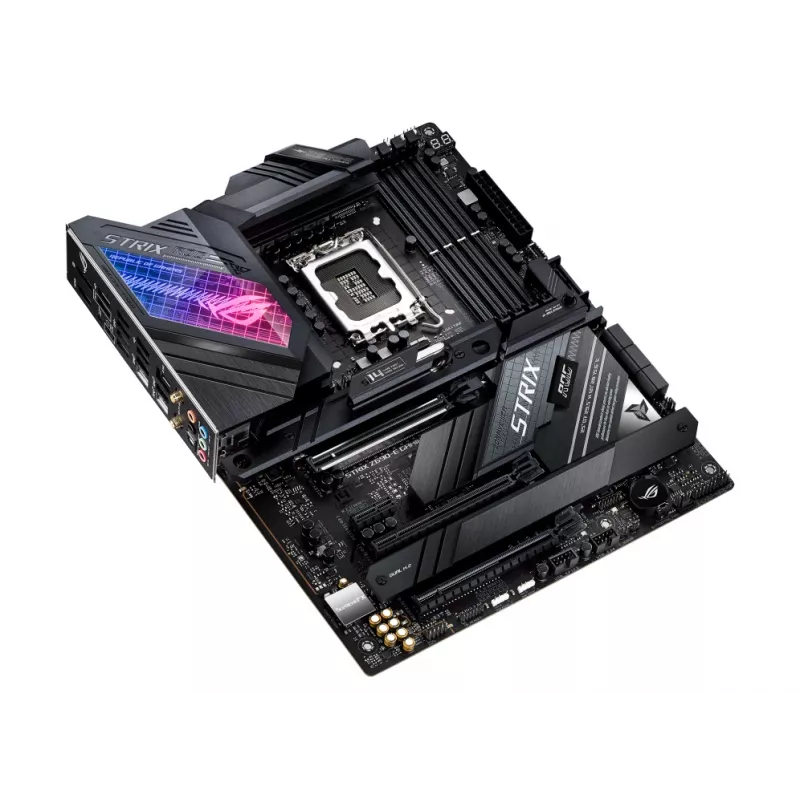

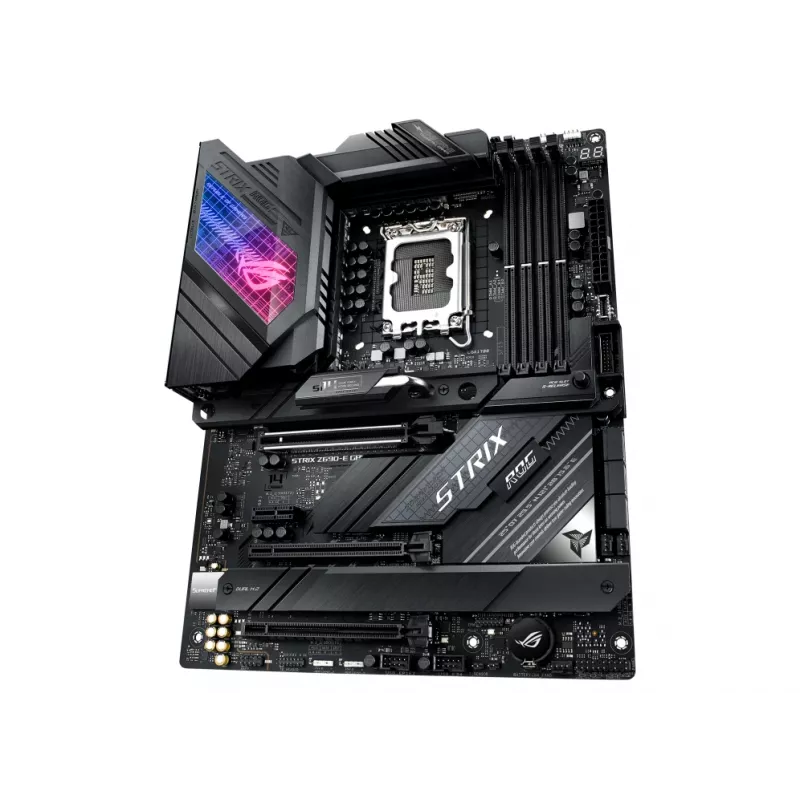

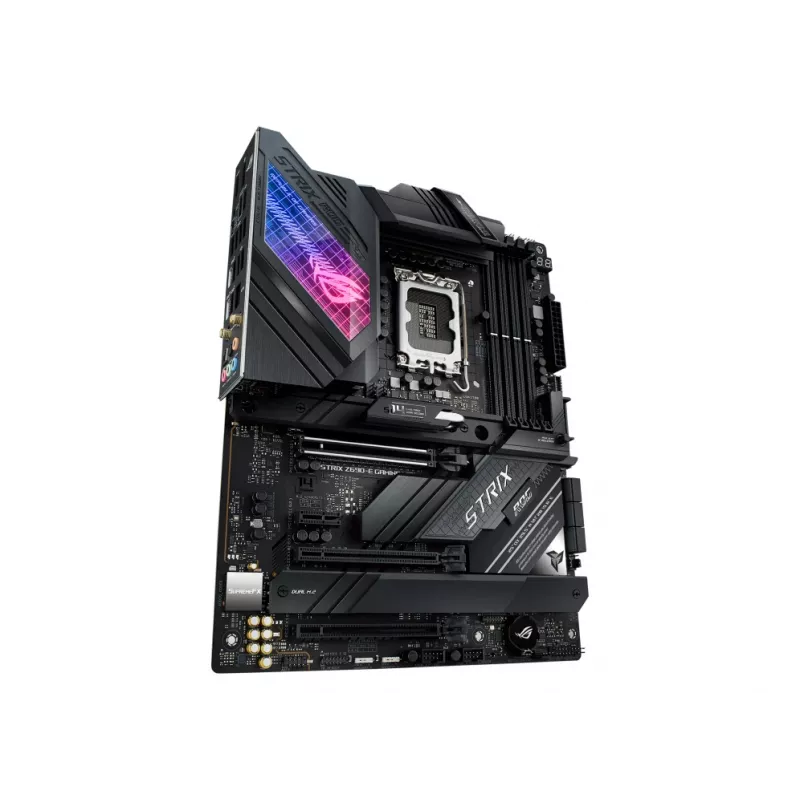

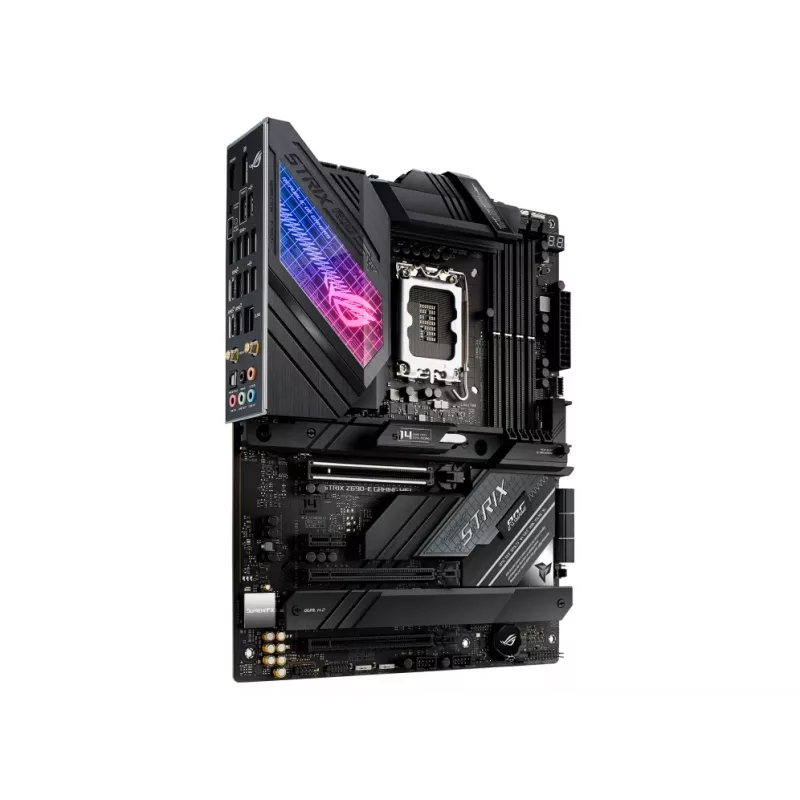

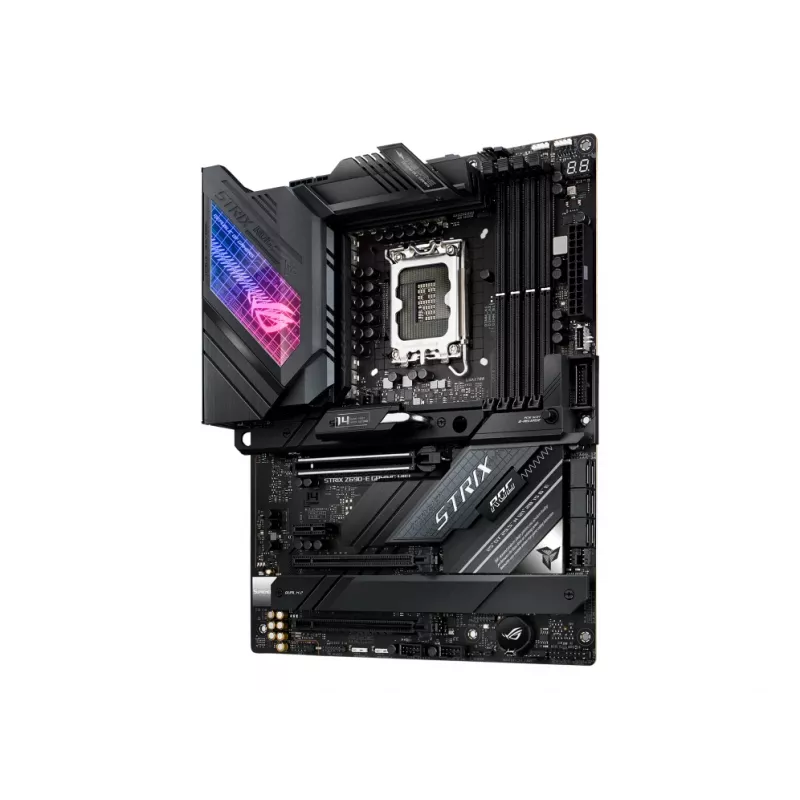

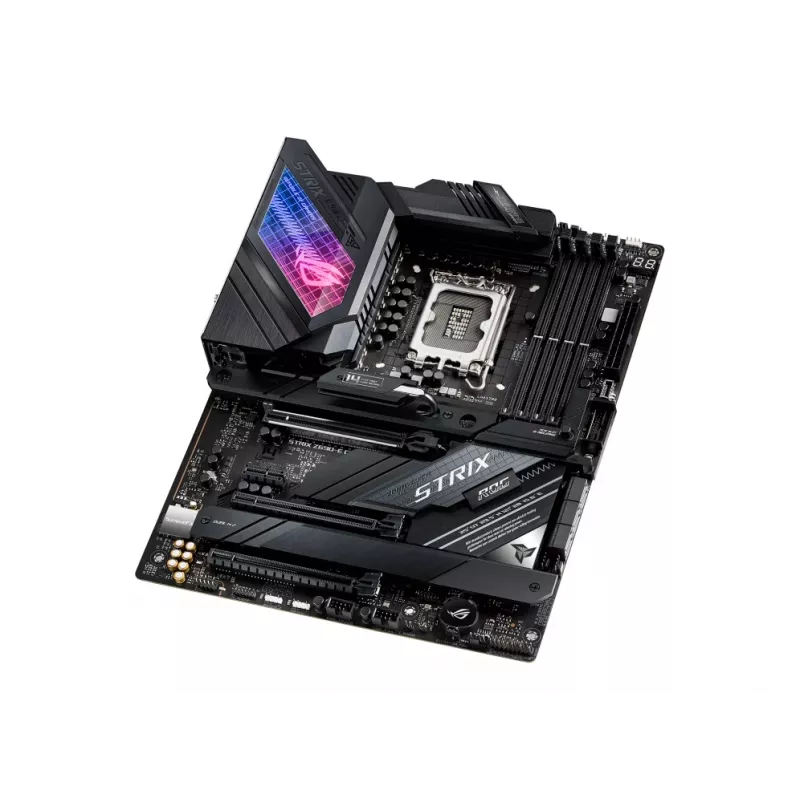

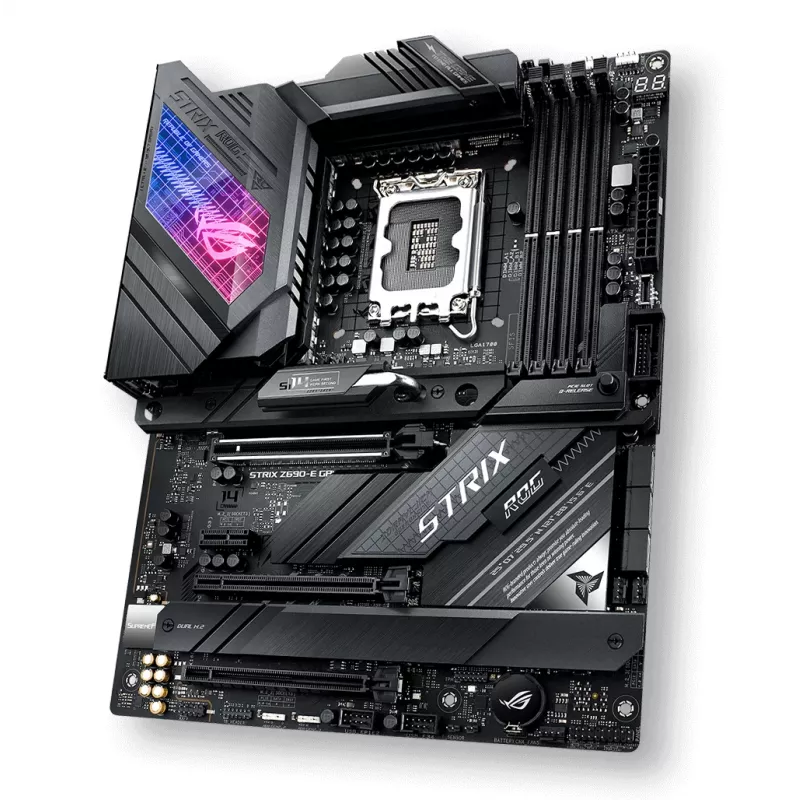

Name: ASUS ROG STRIX Z690-E GAMING WIFI Intel Z690 LGA 1700 ATX
Brand: ASUS
SKU: 27337
Price: 658.65 EUR
Availability: OutOfStock

ASUS ROG STRIX Z690-E GAMING WIFI Intel Z690 LGA 1700 ATX

ASUS ROG STRIX Z690-E GAMING WIFI Intel Z690 LGA 1700 ATX

0 recensioni • Scrivi una recensione

658,65 €

ROG STRIX Z690-E GAMING WIFIROG Strix Z690-E Gaming WiFi puts 12th Gen Intel® Core™ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your... Leggi di più

Qtà

Esaurito

Aggiungi alla lista dei desideri Confronta questo prodotto

Stock EsauritoNon disponibile Codice 27337 Marca ASUS Modello 90MB18J0-M0EAY0 Garanzia 2 anni

Spedizioni e resi

Anteprima rapida

Scheda madre ASRock B650 Steel Legend WiFi — AMD B650, socket AM5, ATX, DDR5, 4x DIMM, 192 GB, Wi‑Fi 6E, LAN 2,5 Gb

191,36 €

IVA esclusa:156,85 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Socket AM5 ATX

361,83 €

IVA esclusa:296,58 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre ASUS PRIME H610M-A WIFI D4 — Intel H610, LGA1700, micro ATX, DDR4, 2x DIMM, Wi‑Fi 5, Bluetooth 5.0, 2x M.2, HDMI 2.1, DP 1.4

103,85 €

IVA esclusa:85,13 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

ASUS PRIME B760-PLUS D4 Intel B760 LGA 1700 ATX

126,46 €

IVA esclusa:103,65 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre ASRock X870 Riptide WiFi — ATX, AMD X870, Socket AM5, DDR5, 4 DIMM, 256 GB, Wi‑Fi 7, 2,5GbE

236,37 €

IVA esclusa:193,75 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre MSI MAG X870E TOMAHAWK WIFI — AMD X870E, Socket AM5, ATX, 4x DDR5 DIMM, 4x M.2, Wi‑Fi, 5Gb Ethernet

362,61 €

IVA esclusa:297,22 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre MSI MAG B850 TOMAHAWK MAX WIFI — AMD B850, socket AM5, ATX, DDR5, 4×M.2, Wi-Fi 7, LAN 5Gb, audio 7.1

294,26 €

IVA esclusa:241,19 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX

512,41 €

IVA esclusa:420,01 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

ASRock B850 LiveMixer WiFi scheda madre ATX

202,29 €

IVA esclusa:165,81 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

GIGABYTE B760 DS3H GEN5 scheda madre - supporta CPU Intel Core 14ª gen, VRM digitale 8+2+1 fasi, fino a 5600 MHz DDR5, 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 2x2

100,43 €

IVA esclusa:82,32 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

ROG STRIX Z690-E GAMING WIFI
ROG Strix Z690-E Gaming WiFi puts 12th Gen Intel® Core™ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.

POWER DESIGN
Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.

Integrated I/O Cover & VRM Heatsinks
Two thick VRM heatsinks connected by a heat pipe and bonded to a pre-mounted metal I/O shield provide ample surface area and mass to handle the power needs of high-performance 12th Gen Intel processors.

Thermal Pads
High-grade thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.

M.2 Combo-Sink
An M.2 heatsink with a direct-contact heat pipe delivers ample surface area, enabling optimal running temperatures for PCIe 5.0 M.2 NVMe drives, even when airflow is restricted.

Two M.2 Backplates
The integrated M.2 backplate help ensure that high-performance drives deliver peak performance, even when airflow is restricted.

Two M.2 Heatsinks
The M.2 heatsinks keep the M.2 SSDs at optimum operating temperature for consistent performance and reliability.

TWO-WAY AI NOISE CANCELATION
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*A splitter cable is necessary when using a 3.5 mm headset.

AI OVERCLOCKING
ROG AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.

Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.

AI COOLING
ASUS AI Cooling technology automatically manages and controls motherboard-connected fans to ensure optimal settings based on current system load and temperature.

AI NETWORKING
The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technologies to ensure faster and smarter network optimization.

PCIe Performance
With one PCIe 5.0 M.2 slot delivering twice the speed of PCIe 4.0, two additional slots with PCIe 4.0, and two more 4.0 slots available on the bundled ROG Hyper M.2 Card, ROG Strix Z690-E Gaming WiFi leverages mighty CPU and chipset bandwidth to deliver the latest data transfers, Intel NVM Express® RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs.

WIFI 6E (802.11 AX)
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z690-E Gaming WiFi, SupremeFX features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.

UNDENIABLY ROG STRIX
A specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, a pattern of grids and slashes, touches of mirror finish, and a leather ROG logo deliver a variety of carefully crafted surface textures. Last but not least, a distinctive lighting pattern built into the M.2 Combo-Sink finishes off a colorful tour of the ROG worldview.

PCIE SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

CERTIFIED COMPATIBILITY
ROG Strix motherboards undergo an extensive certification program to ensure compatibility with the widest range of components and devices. Our Qualified Vendor List (QVL) provides a reference for identifying guaranteed-compatible components and memory.

ASUS AIO coolers are also compatible with a wide variety of CPUs, up to and including 12th Gen Intel processors, giving you ultimate flexibility to cool the CPU that fits your needs.

THE ROG STRIX ECOSYSTEM AWAITS
Level up your game with ROG Strix. Enjoy complementary aesthetics, control and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

5-WAY OPTIMIZATION
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

TPU INSIGHT

The TurboV Processing Unit (TPU) provides AI Suite 3 with the intelligence needed to automatically fine-tune voltages, monitor system stats, and adjust overclocking settings.

EPU GUIDANCE

With the Energy Processing Unit (EPU), you’ll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.

FAN XPERT 4

Fan Expert 4 provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Control is also possible via the award-winning ROG UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks.

Punti salienti

Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C®
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
PC ATX Intel Z690 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
HDD & SSD M.2, SATA RAID support
BIOS type: UEFI AMI 256 Mbit
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2

Specifiche

Altezza

110 mm

Bluetooth

Yes

Canali di memoria

Dual-channel

Canali di uscita audio

7.1 channels

Cavi inclusi

SATA

Chip audio

Realtek ALC4080

Chipset scheda madre

Intel Z690

Codice Sistema Armonizzato (HS)

84733020

Colore del prodotto

Black

Compatibilità ECC

Non-ECC

Componente per

Connettore audio del pannello frontale

Yes

Connettore di alimentazione 12V

Yes

Connettore di alimentazione ATX (24 pin)

Yes

Connettore di alimentazione EPS (8 pin)

Yes

Connettore di alimentazione ventola

Yes

Connettore TPM

Yes

Connettore ventola CPU

Yes

Connettori USB 2.0

Connettori USB 3.2 Gen 1 (3.1 Gen 1)

Connettori USB 3.2 Gen 2 (3.1 Gen 2)

Connettori USB 3.2 Gen 2x2

Dimensione memoria BIOS

256 Mbit

Driver inclusi

Yes

Ethernet LAN

Yes

Famiglia chipset scheda madre

Intel

Formato scheda madre

ATX

Header pin LED RGB

Yes

Header Thunderbolt

Ingresso linea

Yes

Ingresso microfono

Yes

Interfacce delle unità di archiviazione supportate

M.2, SATA

Larghezza

305 mm

Livelli RAID

0, 1, 5, 10

Memoria interna massima

192 GB

Memoria unbuffered

Yes

Numero di connettori COM

Numero di connettori per ventole case

Numero di connettori SATA

Numero di connettori SATA II

Numero di connettori SATA III

Numero di porte DisplayPort

Numero di porte DVI-D

Numero di porte DVI-I

Numero di porte HDMI

Numero di porte mSATA

Numero di porte PS/2

Numero di porte USB 2.0

Numero di porte USB 3.2 Gen 1 (3.1 Gen 1) Type-A

Numero di porte USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Numero di porte USB 3.2 Gen 2 (3.1 Gen 2) Type-A

Numero di porte USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Numero di porte USB 3.2 Gen 2x2 Type-C

Numero di porte USB4 Gen 2x2

Numero di porte USB4 Gen 3x2

Numero di porte VGA (D-Sub)

Numero di slot di memoria

Numero di slot M.2 (M)

Peso

1.54 kg

Porta di uscita S/PDIF

Yes

Porte Ethernet LAN (RJ-45)

Produttore del processore

Intel

Profondità

244 mm

Scheda grafica integrata

Serie di processori compatibili

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G

Sistemi operativi Windows supportati

Windows 10, Windows 11

Slot Mini PCI Express

Slot Mini PCI Express (Gen 1.x)

Slot Mini PCI Express (Gen 2.x)

Slot Mini PCI Express (lunghezza intera)

Slot Mini PCI Express (mezza lunghezza)

Slot PCI

Slot PCI Express x1

Slot PCI Express x1 (Gen 2.x)

Slot PCI Express x1 (Gen 3.x)

Slot PCI Express x1 (Gen 4.x)

Slot PCI Express x16

Slot PCI Express x16 (Gen 2.x)

Slot PCI Express x16 (Gen 3.x)

Slot PCI Express x16 (Gen 3.x) in modalità dual x8/x8

Slot PCI Express x16 (Gen 4.x)

Slot PCI Express x16 (Gen 5.x)

Slot PCI Express x4

Slot PCI Express x4 (Gen 1.x)

Slot PCI Express x4 (Gen 2.x)

Slot PCI Express x4 (Gen 4.x)

Slot PCI Express x8

Slot PCI Express x8 (Gen 1.x)

Socket del processore

LGA 1700

Socket del processore supportati

LGA 1700

Standard Wi-Fi

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Standard Wi-Fi massimo supportato

Wi-Fi 6E (802.11ax)

Supporto RAID

Yes

Supporto tecnologia di elaborazione parallela

Not supported

Tipi di memoria supportati

DDR5-SDRAM

Tipi di unità di archiviazione supportate

HDD & SSD

Tipo di BIOS

UEFI AMI

Tipo di interfaccia Ethernet

2.5 Gigabit Ethernet

Tipo di slot di memoria

DIMM

Uscite cuffie

Velocità di clock della memoria supportate

6200,4800,5000,5200,5400,5600,5800,6000 MHz

Versione Bluetooth

5.2

Versione DisplayPort

1.4

Versione HDMI

2.1

Wi-Fi

Yes
