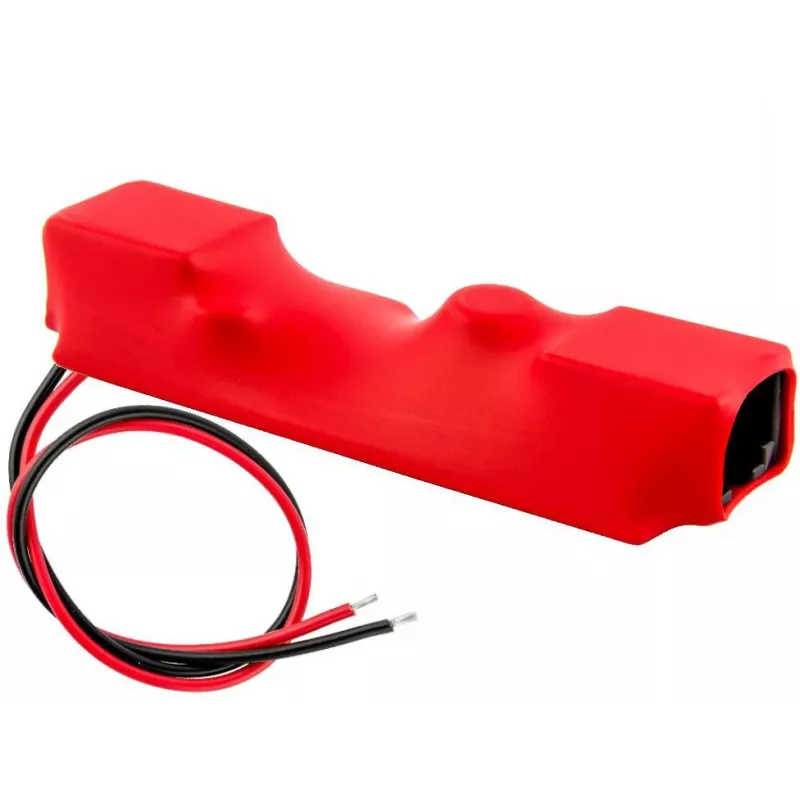

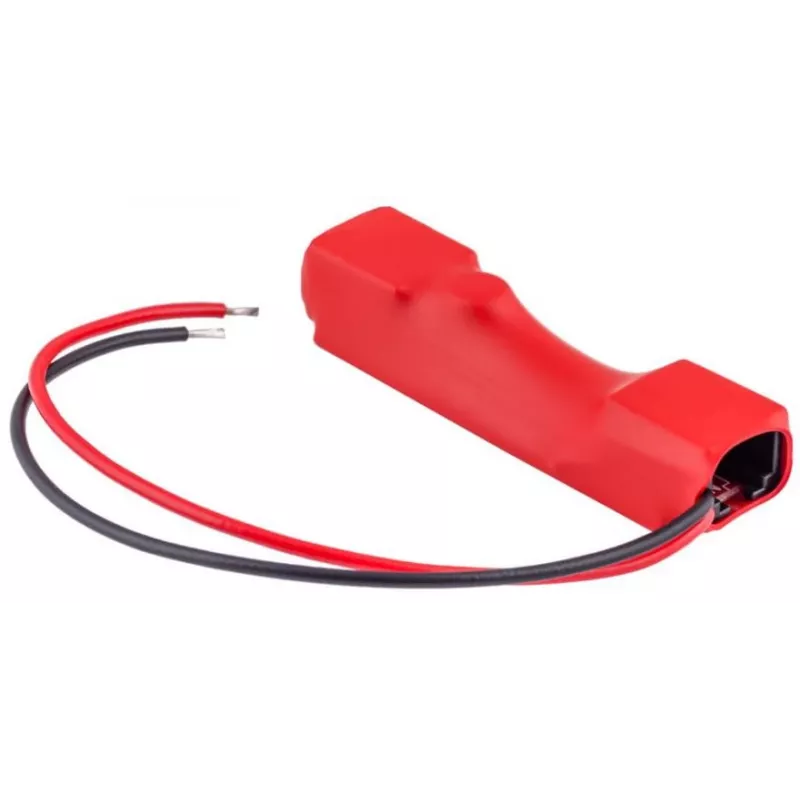

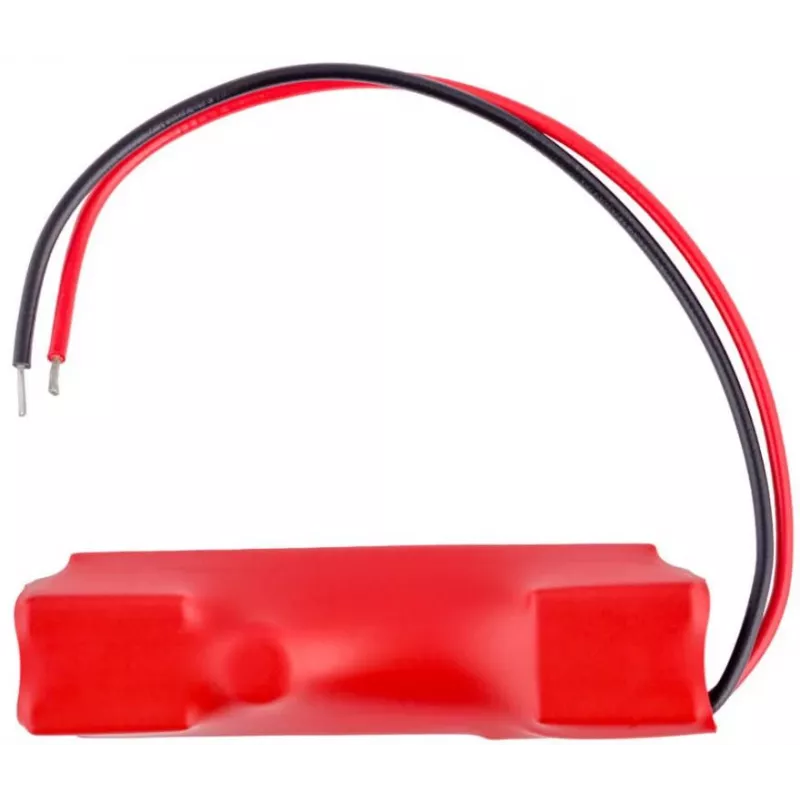

ATTE ASUC-15-482-HS convertitore di tensione PoE passivo, 48V 15W, ingresso 10-30V, montaggio a parete

The ATTE ASUC-15-482-HS is a high-quality Passive PoE Voltage Converter designed to boost input voltage from 10-30V DC to a stable 48V DC output, delivering up to 15W of power. Ideal for powering PoE devices over long distances or in areas with limited power sources, this converter ensures reliable performance with protection features including short circuit, overload, and reverse polarity protection. Its compact, wall-mountable ABS housing makes it easy to install in various environments.

Advantages

This PoE voltage converter offers a cost-effective solution for extending PoE reach and compatibility. With an efficiency greater than 85%, it minimizes power loss. The unit supports 10/100 Mbps data rates and uses power pins 4,5 (+) and 7,8 (-) for passive PoE. Its wide input voltage range and robust protection features ensure safe and stable operation even in demanding conditions.

Suitable for

• IP cameras and surveillance systems
• Wireless access points and bridges
• VoIP phones and other PoE-powered devices
• Remote installations where standard PoE is unavailable

Key specifications

• Product Type: PoE Voltage Converter
• PoE Standard: Passive PoE
• Input Voltage: 10-30V DC
• Output Voltage: 48V DC
• Max Output Power: 15W
• Max Output Current: 0.31A
• Data Rate Support: 10/100 Mbps
• Input Connector: DC Jack (2.1/5.5mm)
• Network Connectors: 2x RJ45 (Data In, PoE Out)
• PoE Power Pins: 4,5 (+) / 7,8 (-)
• Operating Temperature: -25°C to 65°C
• Protection: Short Circuit, Overload, Reverse Polarity (Input)
• Efficiency: >85%
• Housing Material: ABS Plastic
• Mounting: Wall Mountable
• LED Indicator: Power LED
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a compatible DC power supply (not included) and ensure proper ventilation. This converter is designed for indoor use only.
