Audac XMP44 sistema audio modulare professionale SourceCon

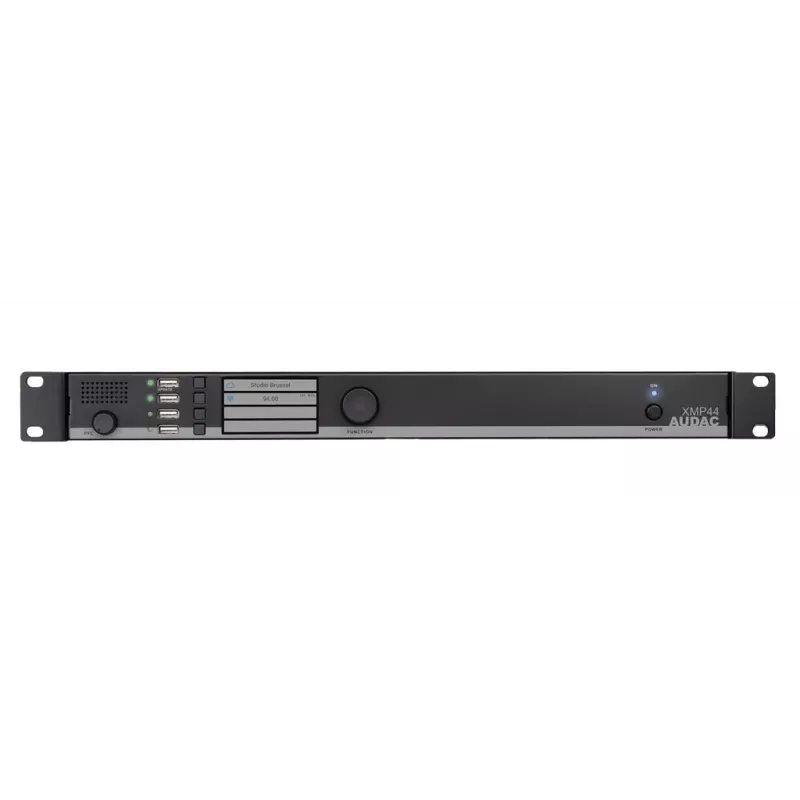

The Audac XMP44 is a professional modular audio matrix system designed for flexible and scalable audio distribution in commercial and institutional environments. As part of the SourceCon™ series, it features 4 slots for compatible input modules, allowing you to customize the system to your specific needs. The unit provides 4 stereo output zones via balanced 3-pin Euroblock connectors, ensuring high-quality signal transmission. With a frequency response of 20 Hz to 20 kHz (±3 dB), signal-to-noise ratio >90 dB, and THD+N <0.005%, the XMP44 delivers pristine audio performance. Control options include RS232, TCP/IP (Ethernet), front panel, and optional wall panels, making it easy to integrate into any control system. The 1U 19-inch rack-mountable steel chassis is built for durability and professional installation. Power supply is universal 100-240V AC, 50/60Hz, with a maximum power consumption of 60 W when fully loaded.

Advantages

The XMP44 offers unmatched flexibility with its modular SourceCon™ design, allowing you to mix and match input modules (sold separately) to suit any application. Its robust build quality and comprehensive control options make it ideal for permanent installations. The balanced outputs ensure noise-free audio over long cable runs, and the low distortion guarantees clear sound reproduction.

Suitable for

• Commercial audio systems in restaurants, bars, and retail stores
• Corporate boardrooms and conference facilities
• Educational institutions and lecture halls
• Houses of worship
• Any multi-zone audio distribution requiring flexible input sources

Key specifications

• System Type: Modular Audio Matrix System
• Number of SourceCon™ Slots: 4
• Output Zones/Channels: 4 (Stereo)
• Output Connectors: 3-pin Euroblock (Balanced)
• Frequency Response: 20 Hz - 20 kHz (±3 dB)
• Signal-to-Noise Ratio: > 90 dB (A-weighted)
• THD+N: < 0.005%
• Crosstalk: > 85 dB
• Control Options: RS232, TCP/IP (Ethernet), Front Panel, Optional Wall Panels
• Network Interface: RJ45 (Ethernet)
• Rack Mount Size: 1U (19-inch)
• Power Supply: 100-240V AC, 50/60Hz
• Max Power Consumption: 60 W (fully loaded)
• Compatible Module Type: SourceCon™
• Output Impedance: 50 Ω
• Input Impedance (Line): 10 kΩ
• Operating Temperature: 0°C ~ 40°C
• Chassis Material: Steel

Recommendations

For optimal performance, pair the XMP44 with Audac SourceCon™ input modules such as the XMP44-MIC (microphone) or XMP44-LINE (line). Use balanced cables for all audio connections to minimize interference. The system can be controlled via the front panel or integrated into a larger control system using RS232 or TCP/IP. For wall-mounted control, consider optional Audac wall panels.
