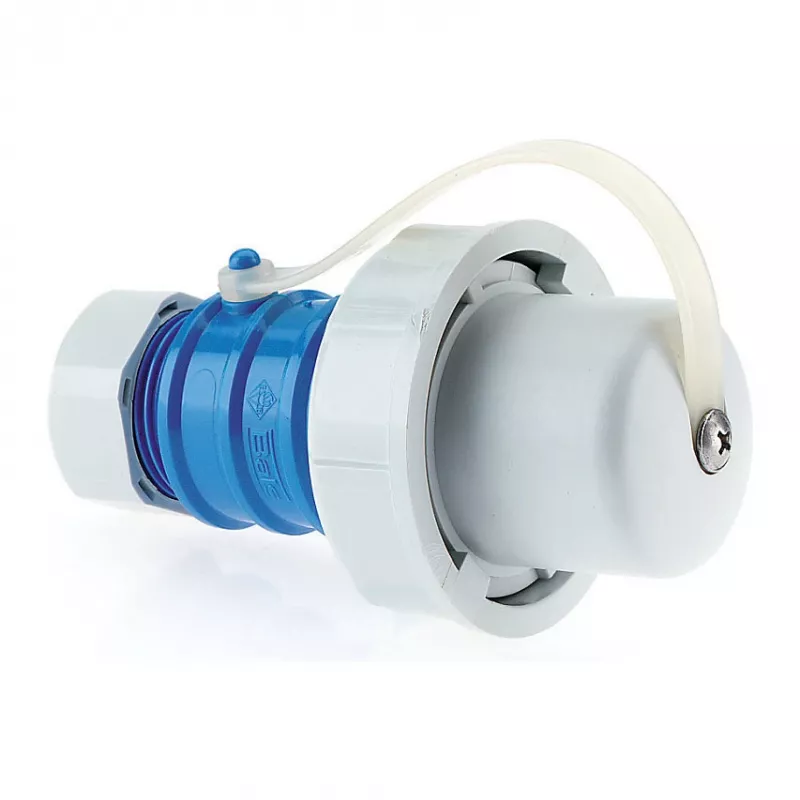

BALS spina Schuko 16A 250V 736 blu IP68 impermeabile

The BALS 736 Schuko plug delivers robust and reliable power connections even in the most challenging conditions. Engineered for complete protection against water and dust, this IP68-rated plug ensures a secure and waterproof installation, making it the go-to choice for outdoor power tools, industrial machinery, and permanent outdoor wiring.

Advantages

Pressure-watertight construction rated IP68 ensures full submersion resistance; durable polyamide housing withstands harsh environments; nickel-plated brass contacts offer corrosion resistance and low contact resistance; screw terminals enable secure and straightforward wiring; integrated cable gland with strain relief provides stress-free connections for cables from 6 mm to 13 mm.

Suitable for

• Outdoor and garden electrical equipment
• Industrial installations where moisture, dust, or splashing is present
• Camping, caravan, and marine applications
• High-pressure cleaning environments

Key specifications

• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Poles: 2P+E
• Connector type: Schuko (CEE 7/7)
• Ingress protection: IP68
• Cable diameter range: 6 – 13 mm
• Housing material: Polyamide (PA)
• Contact material: Nickel-plated brass
• Standards: DIN VDE 0620-1, IEC 60884-1
• Operating temperature: -25°C to +40°C
• Glow wire test: 850°C

Recommendations

Always ensure proper wiring and tighten the cable gland to preserve the IP68 rating. Use with compatible flexible rubber cables such as H07RN-F for optimal performance and safety.
