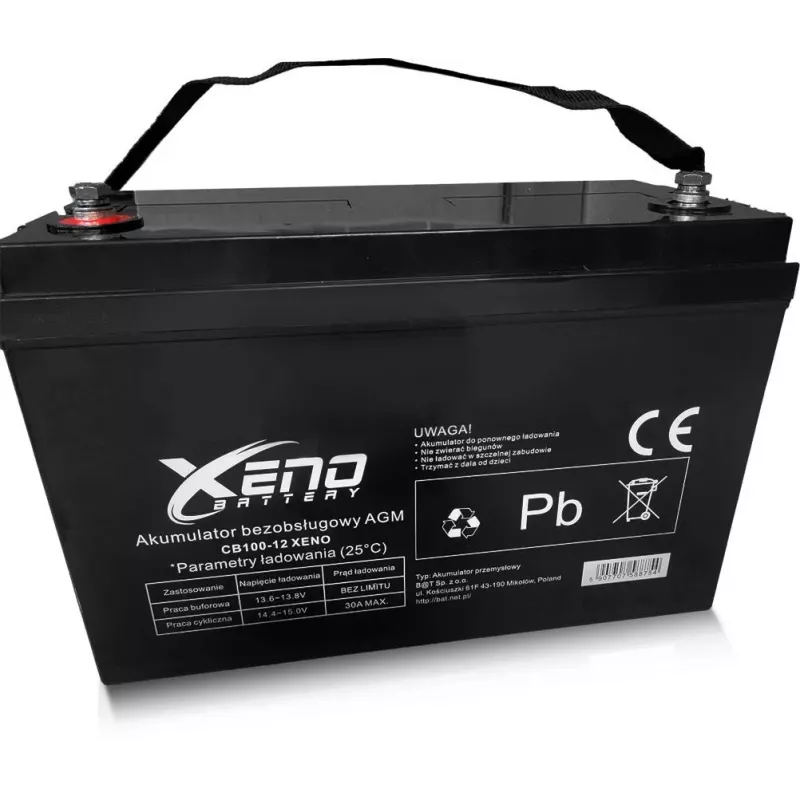

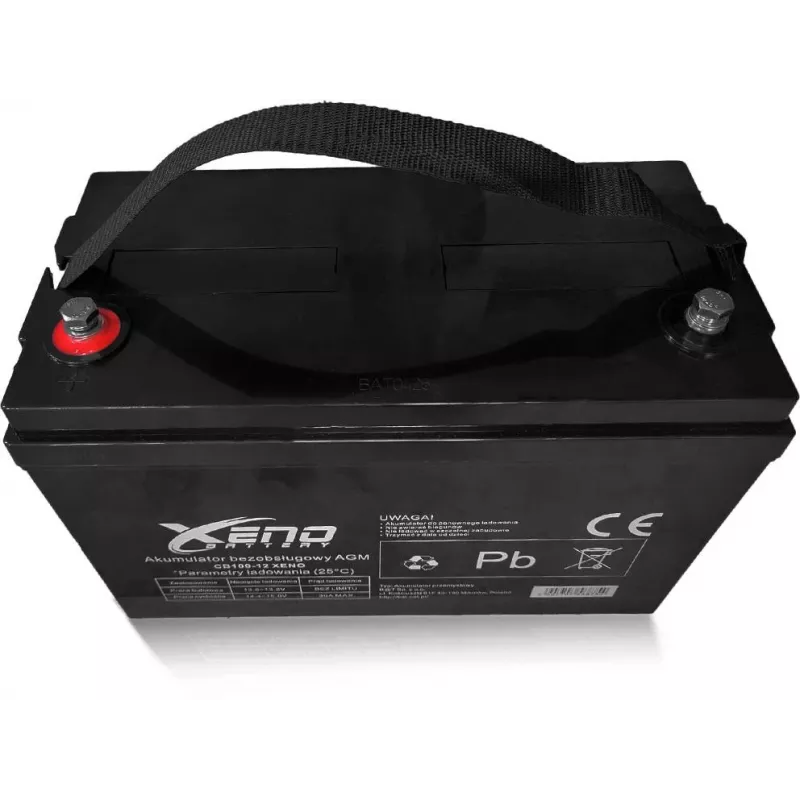

BAT Xeno Black 12V 100Ah AGM Batteria

The BAT Xeno Black 12V 100Ah is a high-performance AGM (Absorbent Glass Mat) battery designed for deep cycle applications. With a nominal capacity of 100Ah (C20) and a 10-year design life, it delivers reliable power for UPS, solar, marine, and RV systems. Its sealed, maintenance-free construction ensures safe operation in any orientation.

Advantages

This AGM battery offers exceptional cycle life (400 cycles at 50% DOD) and low self-discharge (less than 3% per month). The M8 bolt terminals provide secure connections, and the ABS plastic case resists impact and corrosion. With a maximum discharge current of 1000A (5s), it can handle high surge loads.

Suitable for

• Uninterruptible Power Supplies (UPS)
• Solar energy storage systems
• Marine and RV applications
• Emergency lighting and security systems
• Telecommunications backup

Key specifications

• Battery Type: AGM (VRLA)
• Nominal Voltage: 12V
• Nominal Capacity (C20): 100 Ah
• Design Life: 10 years (at 25°C)
• Cycle Life (50% DOD): ~400 cycles
• Terminal Type: M8 Bolt (T12)
• Max. Discharge Current (5s): 1000 A
• Max. Charge Current: 30 A
• Float Charge Voltage: 13.5V - 13.8V
• Cyclic Charge Voltage: 14.4V - 14.7V
• Internal Resistance: Approx. 4.5 mΩ
• Operating Temperature (Discharge): -20°C to 50°C
• Operating Temperature (Charge): -10°C to 50°C
• Self-Discharge Rate: <3% per month at 25°C
• Construction: Sealed, Valve Regulated Lead Acid (VRLA)
• Maintenance: Maintenance-Free
• Case Material: ABS Plastic

Recommendations

For optimal performance, use a compatible AGM battery charger with cyclic charge voltage of 14.4V-14.7V. Ensure proper ventilation and avoid deep discharges below 50% to maximize cycle life.
