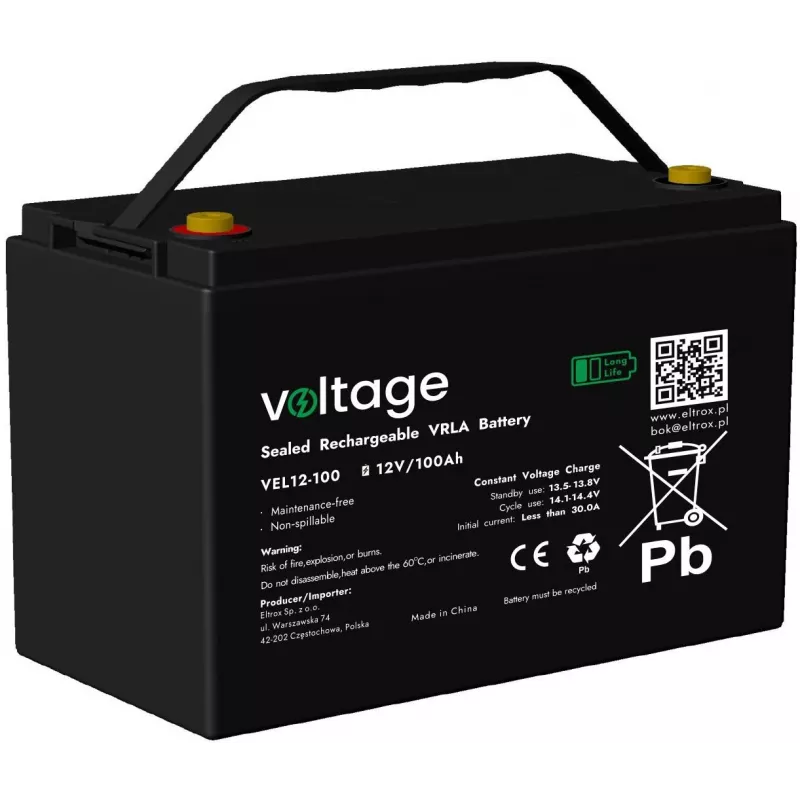

Batteria AGM VOLTAGE Long Life 12V 100Ah VEL12-100 (durata di progetto 15 anni)

The VOLTAGE VEL12-100 is a high-quality AGM (Absorbent Glass Mat) VRLA battery designed for long-life applications. With a nominal voltage of 12V and a capacity of 100Ah (C20), this maintenance-free battery offers a design life of 15 years at 20°C, making it ideal for critical backup power systems.

Advantages

This battery features a valve-regulated, spill-proof construction with immobilized electrolyte, ensuring safe operation in any orientation. Its low self-discharge rate (less than 3% per month) and high discharge current capability (up to 1000A for 5 seconds) provide reliable performance for demanding applications.

Suitable for

• UPS (Uninterruptible Power Supplies)
• Solar power systems
• Telecommunications equipment
• Emergency lighting
• Security systems

Key specifications

• Battery Type: AGM VRLA
• Nominal Voltage: 12V
• Nominal Capacity: 100Ah (C20)
• Design Life: 15 years (at 20°C)
• Terminal Type: M8 (T11)
• Internal Resistance: Approx. 4.5 mΩ
• Max. Discharge Current (5s): 1000A
• Max. Charge Current: 30A
• Float Charge Voltage: 13.5V - 13.8V (at 25°C)
• Cycle Use Voltage: 14.4V - 14.7V (at 25°C)
• Operating Temperature Range (Discharge): -20°C to 60°C
• Operating Temperature Range (Charge): -10°C to 50°C
• Container Material: ABS
• Maintenance: Maintenance-free

Recommendations

For optimal performance and longevity, use this battery in a well-ventilated area within the specified temperature range. Always follow manufacturer guidelines for charging and discharging.
