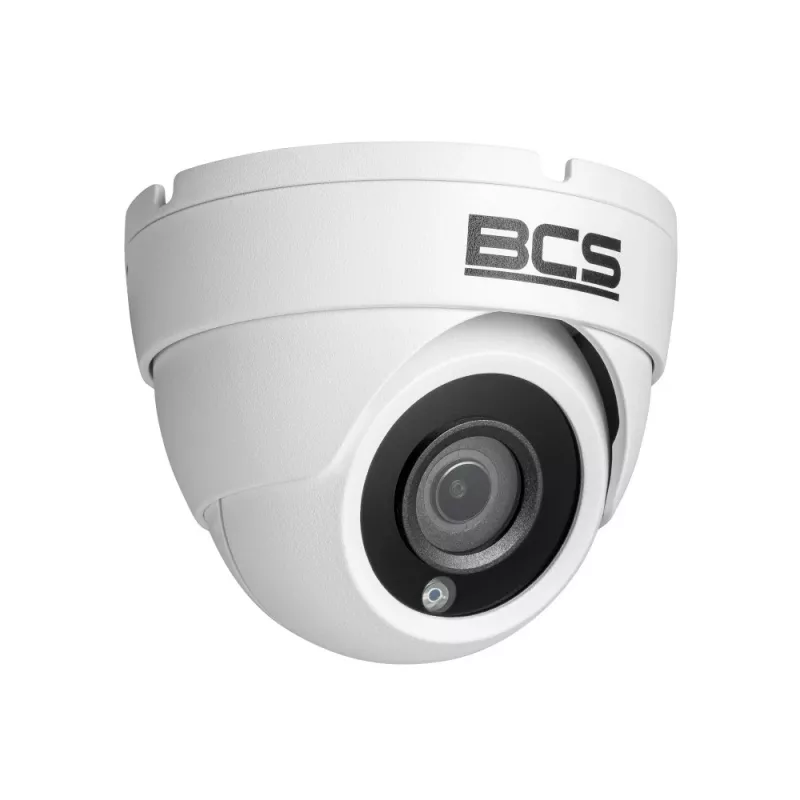

BCS-EA28FSR3(H2)(2) telecamera analogica HD 8MP

The BCS-EA28FSR3(H2)(2) is an 8MP analog HD camera from the BCS UNIVERSAL product line, featuring a dome design and support for HD-CVI, AHD, HD-TVI, and analog CVBS transmission standards. It is equipped with a 1/2.8'' Sony IMX415 CMOS sensor and a fixed 2.8 mm lens with F1.2 aperture.

Key features

• 8MP resolution (3840 × 2560 pixels)
• HD-CVI / AHD / HD-TVI / ANALOG CVBS transmission
• 1/2.8'' Sony IMX415 CMOS sensor with Progressive Scan
• Fixed 2.8 mm lens, F1.2 aperture, fixed focus and iris
• DWDR, BLC, 2D/3D DNR, auto/manual white balance, auto/manual gain control
• ICR mechanical IR filter, IR LED illumination up to 30 m
• Built-in microphone, 1 audio output
• IP66 weatherproof rating
• White housing

Specifications

• Brand: BCS
• MPN: EA28FSR3(H2)(2)
• Product line: BCS UNIVERSAL
• Camera type: Dome
• Resolution: 8 Mpx
• Sensor: 1/2.8'' Sony IMX415 CMOS
• Scanning system: Progressive Scan
• Chipset: FH8556H
• Pixels: 3840(H) × 2560(V)
• Lens: Fixed, 2.8 mm focal length, F1.2 aperture, fixed focus, fixed iris
• Sensitivity: 0.01 Lux (F1.2, AGC), 0 Lux (B/W, IR)
• White balance: Auto / manual (AWB)
• WDR: DWDR
• Backlight compensation: BLC / DWDR
• Shutter: Auto / manual, 1/30s ~ 1/10000s
• Gain control: Auto / manual (AGC)
• Noise reduction: 2D/3D DNR
• Resolutions: CVI: [email protected], 8M@15fps; TVI: [email protected], 8M@15fps; AHD: 8M@15fps; CVBS: PAL, NTSC
• Day/night: ICR, mechanical IR filter
• Illuminator type: IR LED
• Illumination distance: 30 m
• Microphone: Yes
• Audio output: 1
• Operation: OSD menu settings via BCS-XVR recorder
• Power supply: 12V DC
• Power consumption: Max 8W
• Housing colour: White
• IP rating: IP66
• Operating conditions: -20°C ~ +60°C, max 95% RH
• Dimensions: Ø94 × 80 mm
• Weight: 0.3 kg
