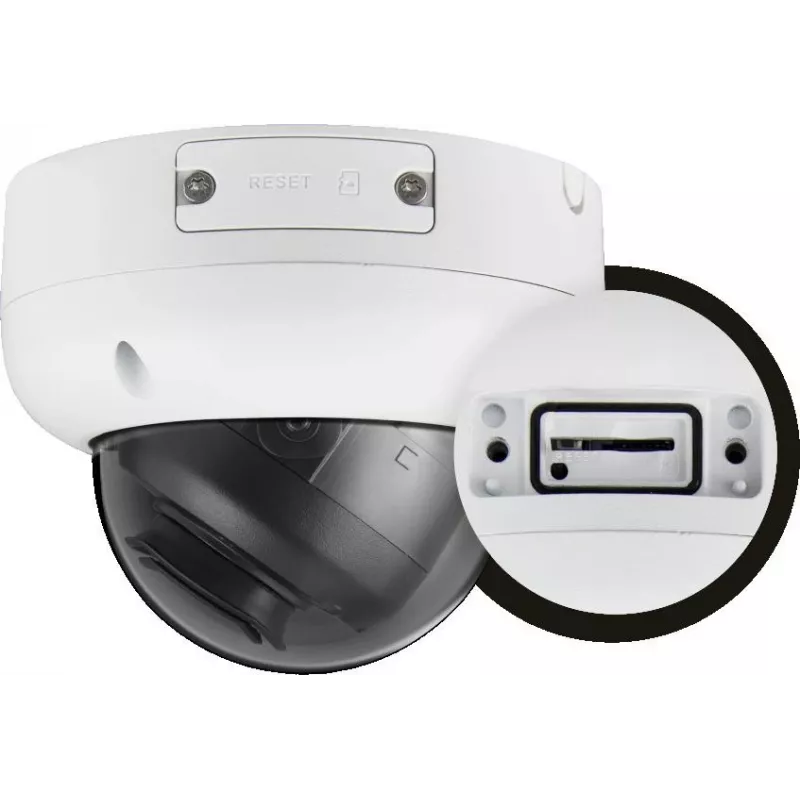

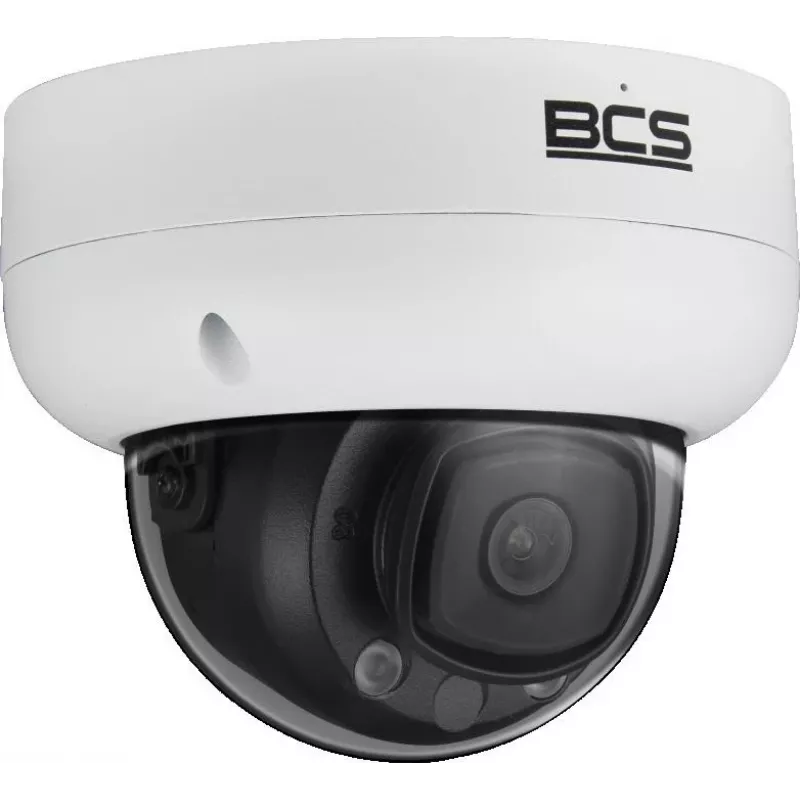

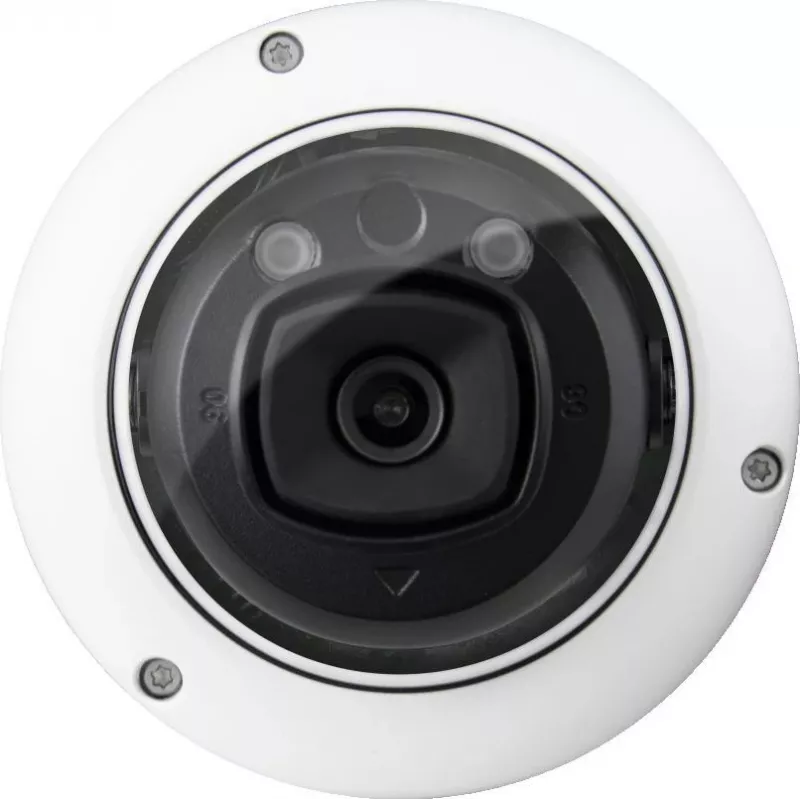

BCS Line IP telecamera vandal-proof BCS-L-DIP25FSR4-AI2 - 5 Mpx 2.8 mm

The BCS Line IP Vandal-Proof Camera BCS-L-DIP25FSR4-AI2 delivers high-definition surveillance with 5 Megapixel resolution and a 2.8 mm fixed lens. Designed for demanding environments, it features IK10 vandal resistance and IP67 weatherproofing, ensuring reliable operation indoors and outdoors. Advanced AI capabilities include perimeter protection and human/vehicle classification, making it an ideal choice for security applications.

Advantages

This camera offers exceptional image quality with 5MP resolution and 120dB True WDR for clear footage in challenging lighting. Smart IR provides up to 30 meters of night vision. The built-in microphone enables audio monitoring, while H.265+ compression reduces bandwidth and storage requirements. AI-powered analytics enhance security by detecting intrusions and filtering false alarms.

Suitable for

• Commercial and residential security
• Perimeter monitoring
• Retail stores and warehouses
• Office buildings and parking lots

Key specifications

• Sensor: 1/2.7" 5 Megapixel Progressive Scan CMOS
• Max Resolution: 2592 x 1944 (5Mpx)
• Lens: 2.8 mm fixed, F1.6
• Horizontal Viewing Angle: 103°
• IR Range: Up to 30 m (Smart IR)
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Frame Rate: 20fps@5Mpx, 25/30fps@4Mpx/3Mpx/1080p
• Minimum Illumination: 0.005 Lux (Color), 0 Lux (IR on)
• WDR: 120dB True WDR
• Audio: Built-in Microphone
• Local Storage: MicroSD card slot (up to 256GB)
• Power Supply: DC 12V, PoE (802.3af)
• Power Consumption: Max 5.5W
• IP Rating: IP67
• IK Rating: IK10
• Operating Temperature: -30°C to +60°C
• AI Features: Perimeter Protection (Intrusion, Tripwire), SMD Plus, Human/Vehicle Classification

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. This camera is ideal for upgrading existing analog systems to IP with advanced analytics.
