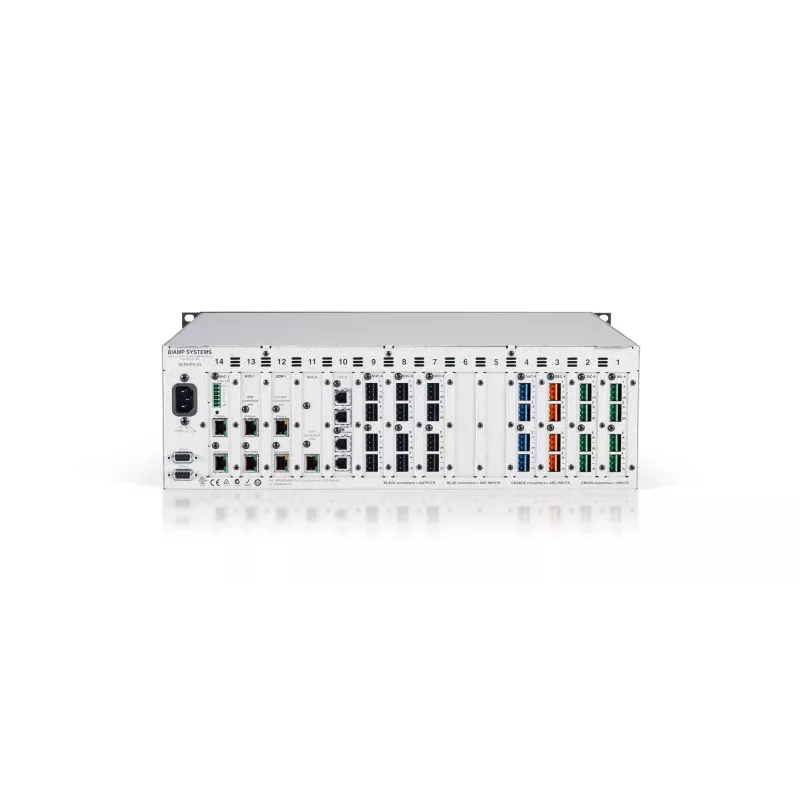

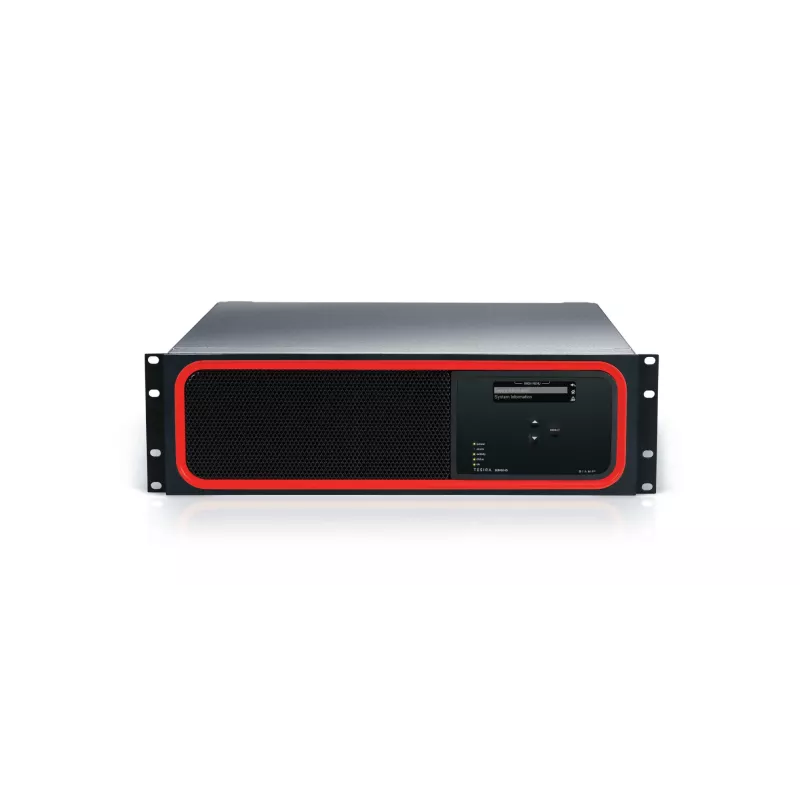

Biamp Tesira SERVER-IO AVB, 8000 Ω, 200 Ω, nero, metallizzato, rosso, 3U, OLED, 20–20000 Hz

The Tesira SERVER-IO is a digital network server. It is factory configured with one DSP-2 card and is capable of handling up to two additional DSP-2 cards. The SERVER-IO has capacity for up to three total audio networking cards per server. The combinations of networking cards may include one AVB-1 Audio Video Bridging network cards, up to two SCM-1 CobraNet network cards, and up to two DAN-1 Dante network cards in any configuration. The SERVER-IO can support up to 12 standard Tesira I/O cards for up to 48 channels of audio I/O (e.g. mic and line level, VoIP, and FXO telephone interface). The SERVER-IO can be used as a standalone device or with Tesira expanders to form a highly scalable audio network.

The Tesira SERVER-IO & Tesira SERVER-IO AVB comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Biamp Tesira SERVER-IO AVB. Input impedance: 8000 Ω, Output impedance: 200 Ω, Product colour: Black, Metallic, Red. Display type: OLED. Frequency range: 20 - 20000 Hz, Total Harmonic Distortion plus Noise (THD+N): 0.006%, Dynamic range: 108 dB. Supported network protocols: IEEE 802.1X. Power consumption (typical): 150 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
