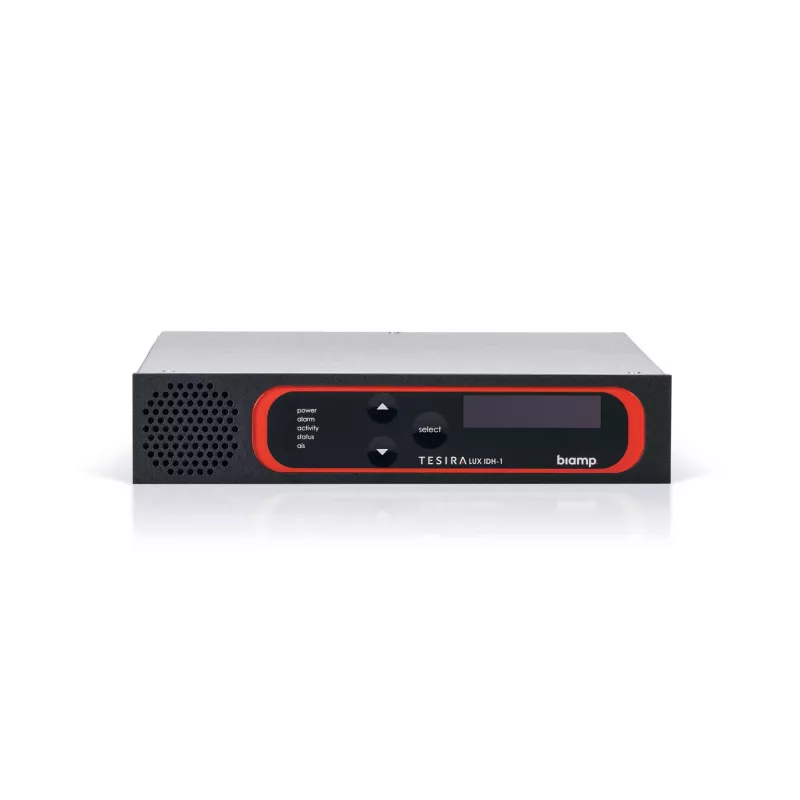

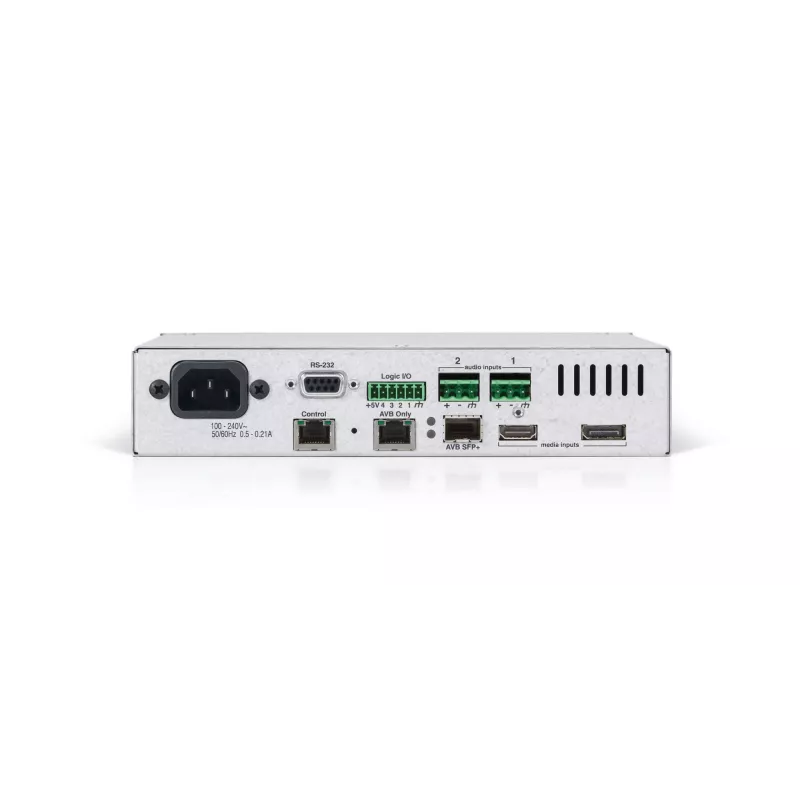

Biamp Tesira TesiraLUX IDH-1, 3840 x 2160 pixel, 60 fps, nero, terminale, SFP+, 216 mm

The TesiraLUX IDH-1 is an AVB/TSN enabled video encoder capable of transmitting video signals up to and including 4K60. The IDH-1 functions as a video server-class device in a Tesira media system and is configured through the Tesira configuration software.

Acting as an AVB talker, the IDH-1 fully integrates digital audio and video on a single network, allowing for simplified lip sync management and end-to-end network transit latencies of less than 1.5 frames. Multiple software-based options are available for managing bandwidth, including setting maximum resolution, frame rate floor, and/or a rate of compression. The AVB/TSN streams can be transmitted over 1Gb or 10Gb ports while control signals are managed via a separate 1Gb Ethernet port. The IDH-1 accepts 8 channels of PCM audio for embedding/de-embedding, and includes 2 mic/line level analog inputs.

The TesiraLUX IDH-1 can be used as a standalone device (paired with a TesiraLUX OH-1) or can be combined with other Tesira servers, expanders, endpoints, and controllers.

The complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Biamp Tesira TesiraLUX IDH-1. Maximum video resolution: 3840 x 2160 pixels, Maximum frame rate: 60 fps. Product colour: Black. Audio connector type: Terminal, Fiber optic connector: SFP+. Width: 216 mm, Depth: 264 mm, Height: 44 mm. Package width: 304.8 mm, Package depth: 457.2 mm, Package height: 127 mm
