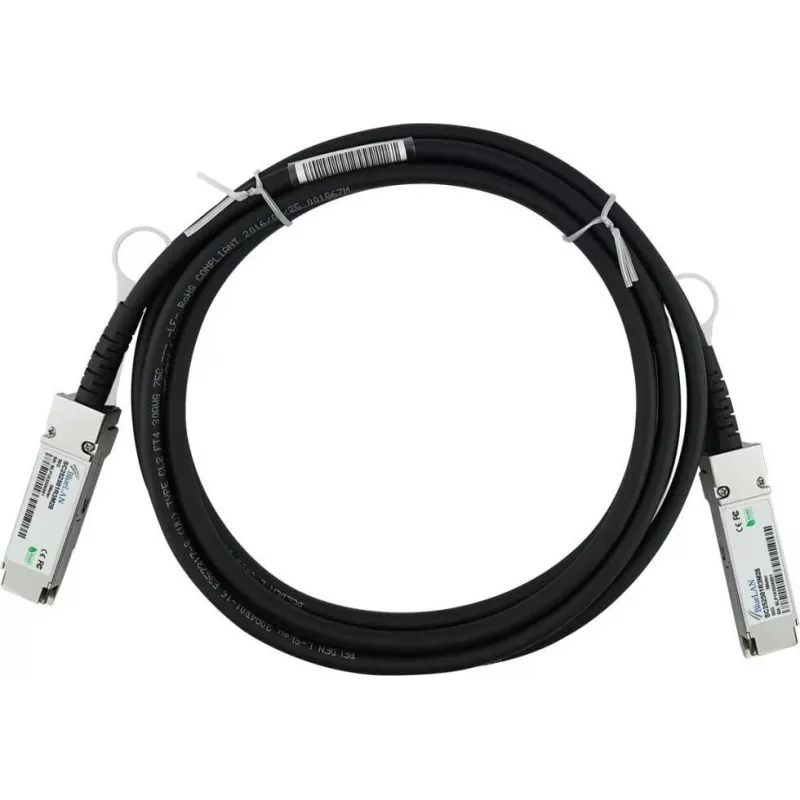

BLUELAN Cavo Direct Attach QSFP, 56G, Infiniband FDR, 28AWG, 3 metri (980-9I677-00L003-BL)

The BLUELAN 980-9I677-00L003-BL is a high-performance QSFP Direct Attach Cable (DAC) designed for reliable, high-speed data transmission in demanding networking environments. This passive copper cable is compatible with NVIDIA equipment and supports Infiniband FDR (Fourteen Data Rate) at 56 Gbps, making it ideal for high-performance computing (HPC) and data center interconnects.

Advantages

This cable offers a cost-effective and low-power solution for short-range connections, eliminating the need for separate transceivers. Its passive design ensures zero power consumption, while the 28 AWG construction provides flexibility and durability. Hot-pluggable QSFP connectors enable easy installation and maintenance.

Suitable for

• High-performance computing clusters
• Data center server and storage interconnects
• InfiniBand FDR networks
• 56 Gbps Ethernet applications (56GBASE-CR4)

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP to QSFP
• Data Rate: 56 Gbps
• Protocol: Infiniband FDR
• Cable Length: 3 Meters
• Wire Gauge: 28 AWG
• Transceiver Type: Passive Copper
• Form Factor: QSFP
• Hot-Pluggable: Yes
• Standard Compliance: SFF-8436
• Data Transfer Standard: 56GBASE-CR4

Recommendations

For optimal performance, ensure your network equipment supports QSFP interfaces and InfiniBand FDR or 56G Ethernet. This cable is a direct replacement for NVIDIA 980-9I677-00L003.
