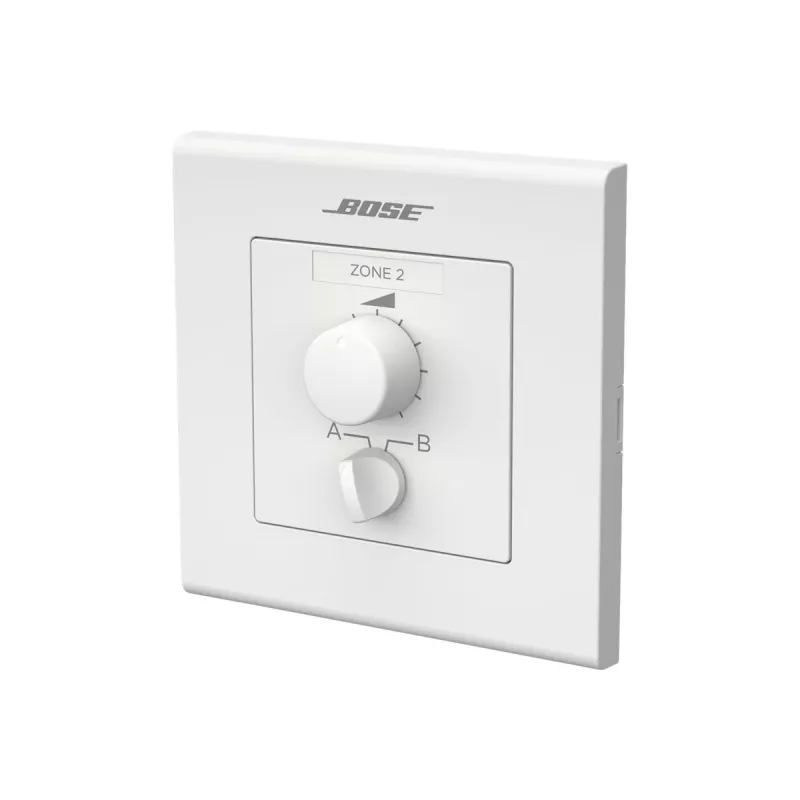

Bose ControlCenter CC-2 pannello di controllo zone cablato bianco

The Bose ControlCenter CC-2 Zone Controller is a wall-mounted control panel designed for commercial audio installations. It provides intuitive volume and source selection control for Bose FreeSpace, ControlSpace, and RoomMatch Utility systems. The CC-2 features a wired RJ-45 connection and is powered directly by the host Bose system via the ControlCenter bus, eliminating the need for external power supplies.

Advantages

Seamless integration with Bose commercial audio systems; simple, user-friendly interface with a rotary encoder for volume and a push-button for source A/B selection; LED indicators for active source; reliable wired connectivity using standard CAT 5/6 UTP cabling; compact design fits standard single-gang wall boxes (EU/UK 86x86mm).

Suitable for

• Restaurants and bars
• Retail stores
• Conference rooms
• Hotels and hospitality venues
• Any commercial space requiring zoned audio control

Key specifications

• Product Type: Wall-Mounted Zone Controller
• Control Functions: Volume, A/B Source Selection
• Connectivity: Wired (RJ-45)
• Cable Type: CAT 5/6 (UTP)
• Max Cable Length: 152 m (500 ft)
• Compatibility: Bose FreeSpace, ControlSpace, RoomMatch Utility systems
• Power Source: Powered by host Bose system via ControlCenter bus
• Mounting: Single-gang wall box (EU/UK standard 86x86mm)
• Color: White
• Controls: 1x Rotary Encoder (Volume), 1x Push-button (Source A/B)
• Indicators: 2x LED (Source A/B)
• Enclosure Material: ABS Plastic
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Relative Humidity: 95% non-condensing
• Input/Output Ports: 1x RJ-45 (ControlCenter bus)
• System Integration: Part of Bose ControlCenter series
• Application: Commercial audio installations

Recommendations

For optimal performance, use with Bose compatible amplifiers and processors. Ensure CAT 5/6 cabling does not exceed 152 meters. Ideal for multi-zone installations where centralized control is desired.
