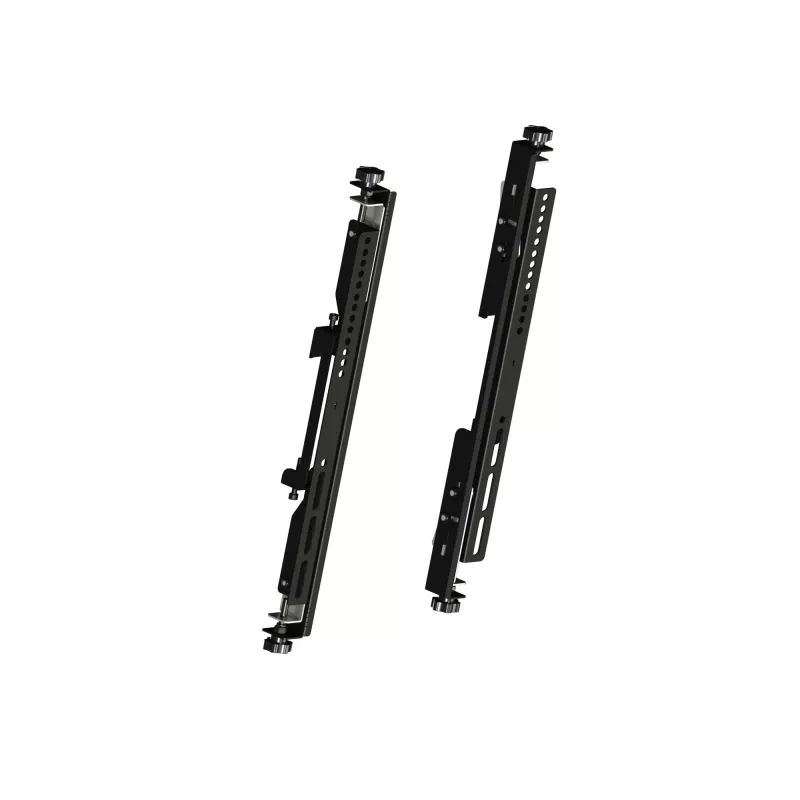

Braccio di montaggio per schermo piatto Multibrackets M Pro Series Micro-Adjustable Arms 400mm nero acciaio

The Multibrackets M Pro Series Micro-Adjustable Arms 400mm are modular steel components designed to be combined with a Pro Series installation to change, update and reconfigure mounting setups. These micro-adjustable arms provide fine tuning of a flat panel display position and are suitable for single-screen installations up to 65" with a maximum load of 30 kg.

Advantages

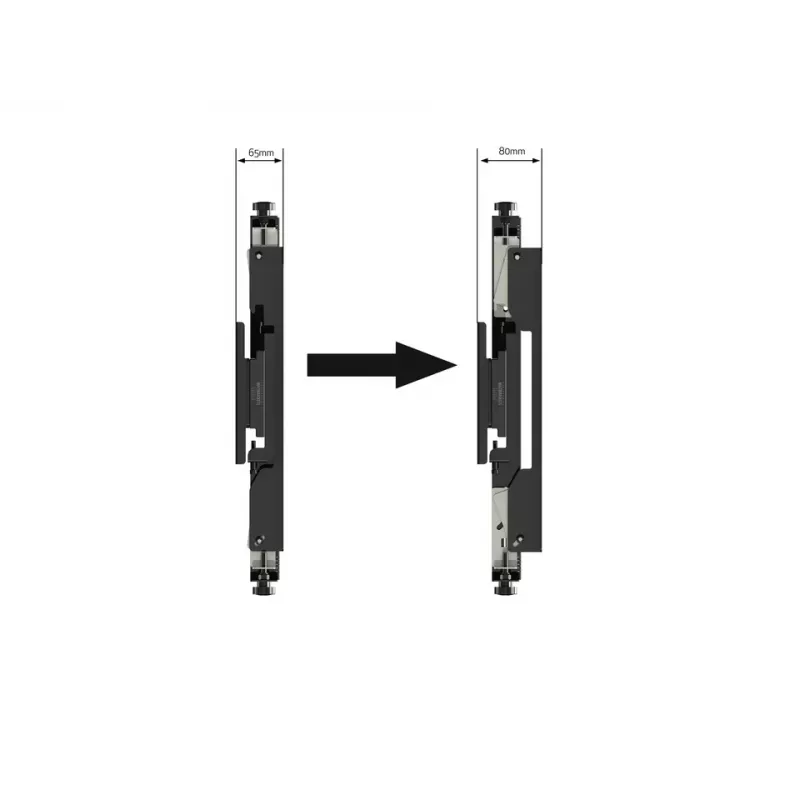

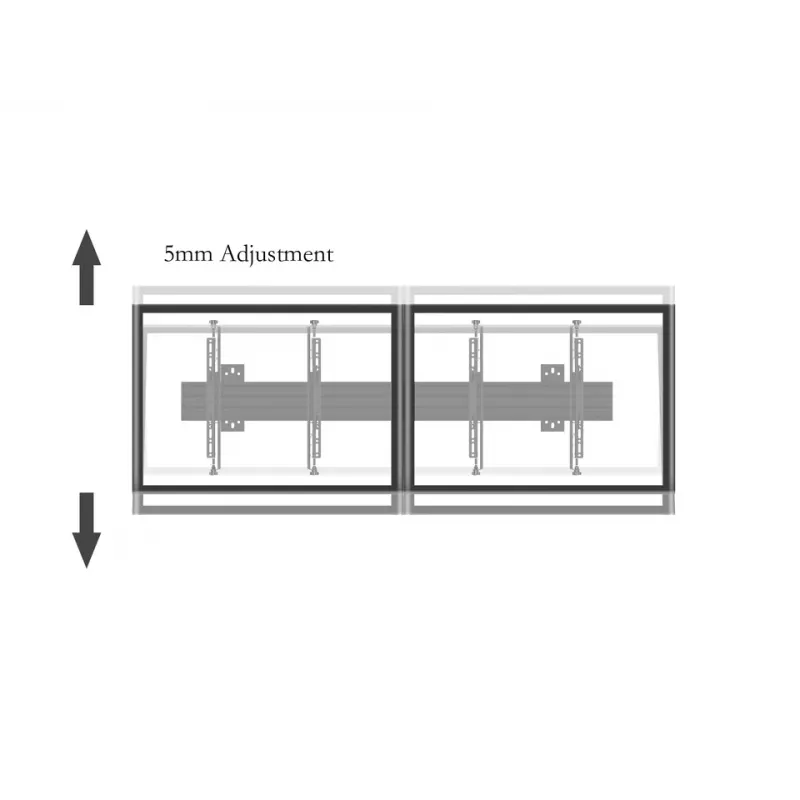

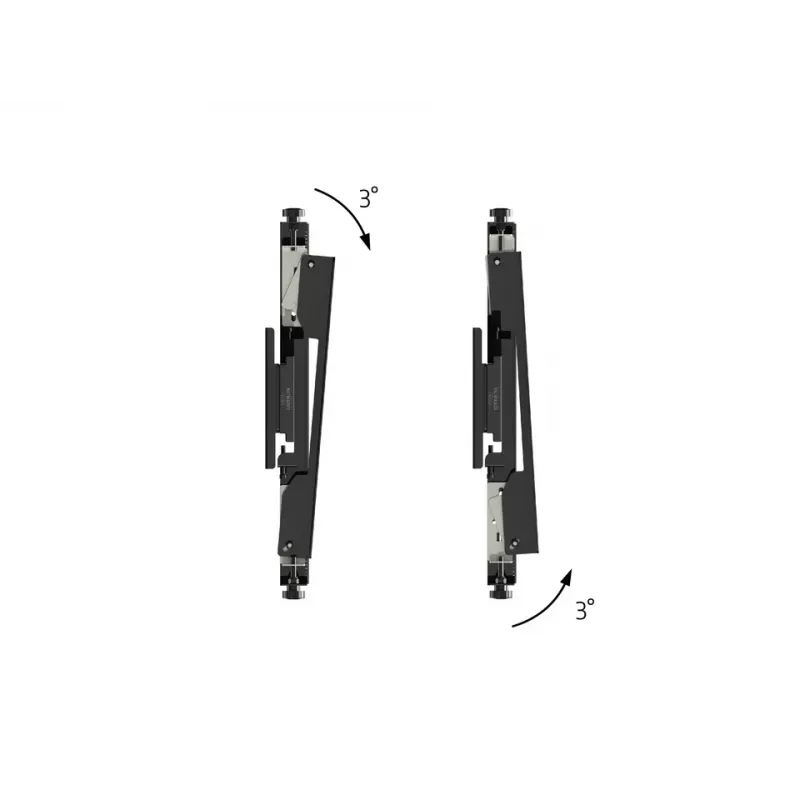

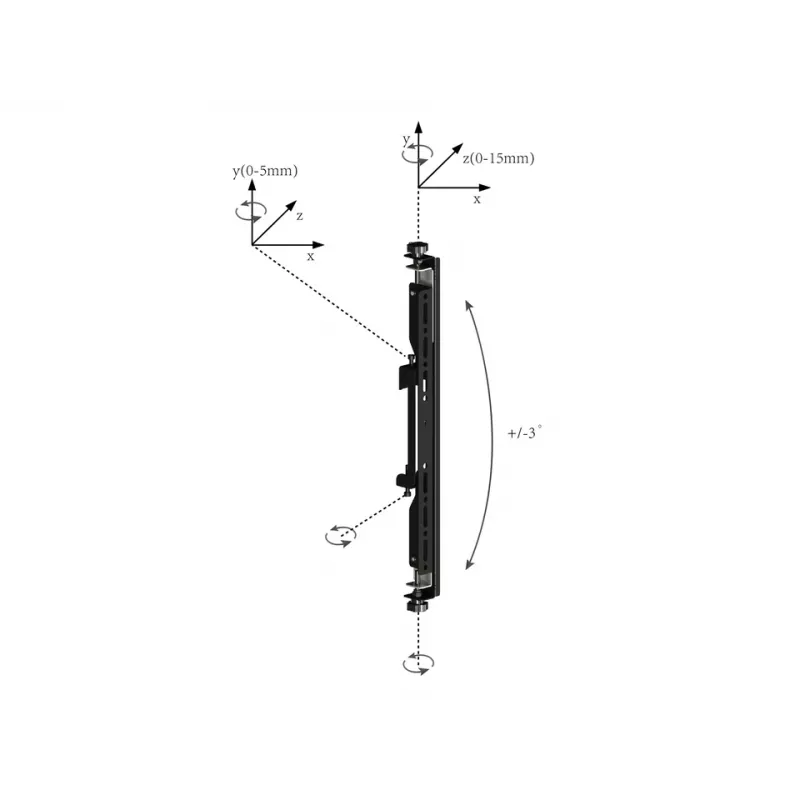

Constructed from steel for durability, the Micro-Adjustable Arms offer precise mechanical adjustments on three axes: a 0–5 mm y-axis shift, a 0–15 mm z-axis shift and a ±3° rotation. Their modular design allows integration into existing Multibrackets M Pro Series systems, enabling reconfiguration without replacing the whole mount. The black finish matches common AV and office environments.

Suitable for

Key specifications

How to use

Attach the Micro-Adjustable Arm to a compatible M Pro Series mounting plate or rail following Multibrackets’ installation instructions. Mount the display to the arm using the appropriate VESA interface and tighten fasteners to the specified torque. Use the y- and z-axis adjustment ranges and the small rotation allowance to fine-tune the screen position for optimal viewing alignment.

Recommendations

Verify the combined weight of display and accessories does not exceed the 30 kg capacity. Perform adjustments with the display supported to prevent sudden movement. For permanent installations, check fastener tightness periodically and follow Multibrackets’ design-protection and installation guidance.
