Bridge di rete Ubiquiti LiteBeam AC 5-Pack 5,150 – 5,875 GHz Wi-Fi 802.11ac

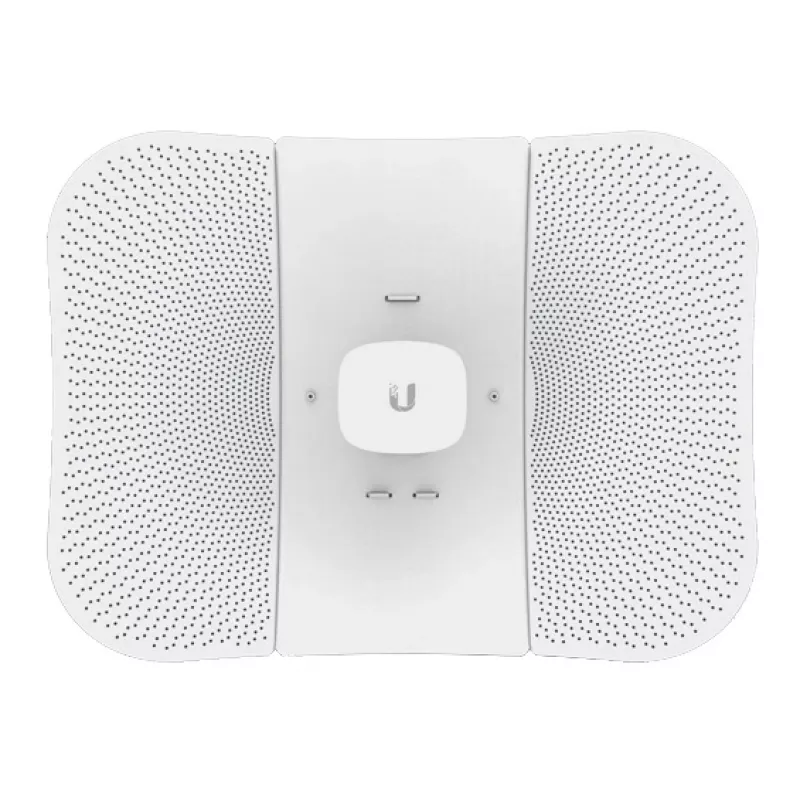

The Ubiquiti LiteBeam® AC is an ultra-lightweight airMAX ac CPE designed for long-distance point-to-point and point-to-multipoint wireless links in the 5.150–5.875 GHz band. It combines a high-gain directional 2x2 MIMO antenna (23 dBi) with airOS®8, offering a compact, tool-free three-axis alignment design and integrated management Wi‑Fi for simple mobile setup. The device supports a maximum data rate of 450 Mbit/s, WPA2 encryption and comes in a durable white plastic enclosure.

Advantages

The LiteBeam® AC delivers high-gain directional performance to improve range and noise rejection, while its lightweight, compact housing reduces shipping and installation complexity. An integrated management Wi‑Fi radio simplifies initial configuration from a smartphone, and upgraded ESD protection with separate azimuth and elevation adjustments enhances mounting reliability. airOS®8 adds airMAX ac protocol support and real‑time RF analytics for easier network management.

Suitable for

• Long-distance point-to-point wireless bridges
• Point-to-multipoint CPE connections in ISP and enterprise networks
• Backhaul links where compact, lightweight equipment is required

Key specifications

• Frequency band: 5.150 – 5.875 GHz
• Maximum data transfer rate: 450 Mbit/s
• Antenna gain: 23 dBi (directional, 2x2 MIMO)
• Encryption: WPA2
• Ethernet: 1 × RJ-45
• Weight: 0.98 kg
• Colour: White

How to use

Mount the LiteBeam® AC using the included hardware and align it using the three-axis adjustment for precise azimuth and elevation. Connect the unit to a PoE injector or compatible switch via the RJ-45 Ethernet port to power the device and establish network connectivity. Use the integrated management Wi‑Fi radio to access the airOS®8 setup interface from a mobile device and follow on-screen prompts to configure SSID, security (WPA2), and network mode. For best results, perform site surveys and use airView® RF analytics to select the optimal channel and verify signal quality.

Recommendations

For stable long-range links, ensure line-of-sight between endpoints, mount the device on a stable pole with correct grounding, and enable WPA2 encryption. Regularly monitor RF metrics in airOS®8 and adjust alignment as needed to maintain optimal throughput.
