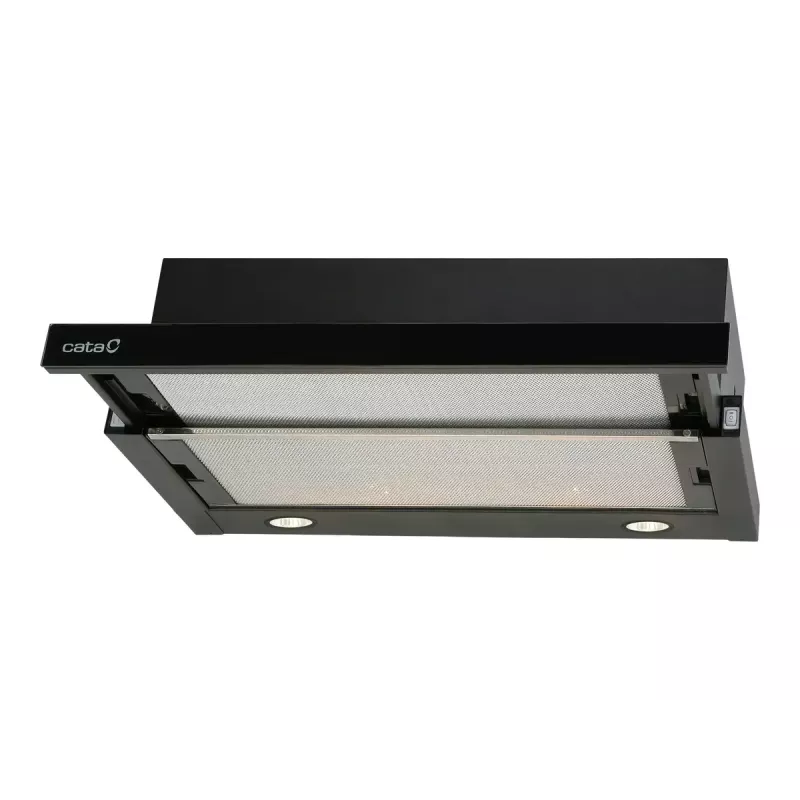

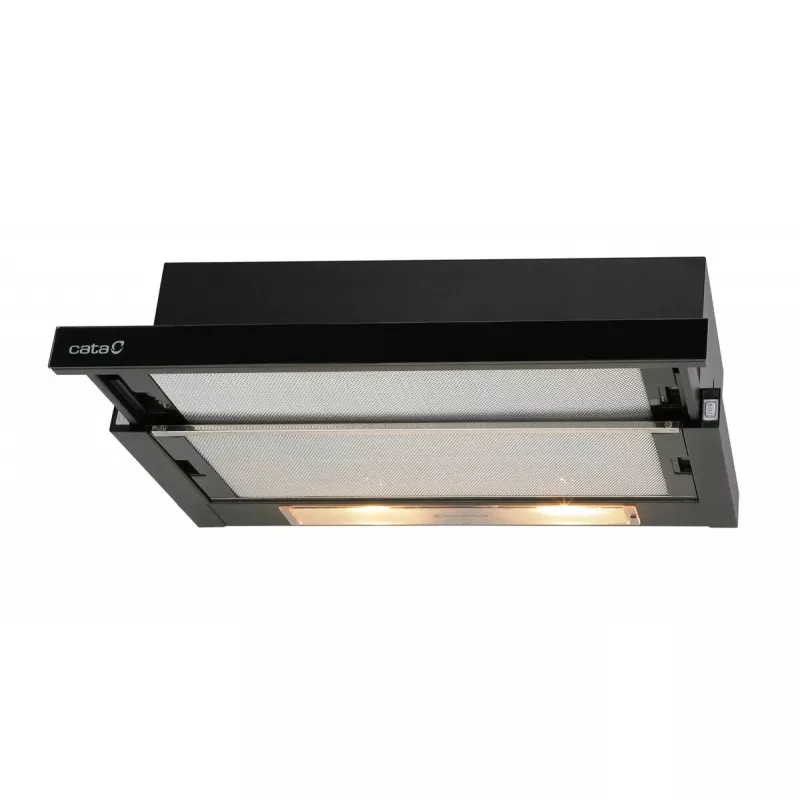

Cappa aspirante semincassata (estraibile) CATA TF 2003 GBK, 600 mm, 340 m³/h, nera

The CATA TF 2003 GBK is a semi built-in (pull out) extractor hood designed for domestic kitchens. With a 600 mm width and a maximum extraction capacity of 340 m³/h, this unit provides focused ventilation for typical cooking zones. The hood operates with a 100 W motor, uses ducted extraction via a Ø 120 mm outlet, and includes two metal grease filters and two integrated LED bulbs. Its compact profile (H 180 mm, D 440 mm) is suited for installation under wall cabinets while the black finish offers a discreet, modern appearance. Annual energy consumption is 112 kWh and the declared noise level at typical operation is 57 dB.

Advantages

The semi built-in pull-out design allows the hood to remain mostly concealed when not in use while providing an extended capture area during operation. Metal grease filters offer durable protection against grease and are washable for repeated use, reducing maintenance costs. LED lighting improves visibility over the cooking surface with low energy demand. Ducted extraction with a 120 mm outlet enables direct removal of cooking fumes to the outside for efficient air renewal.

Suitable for

• Standard domestic kitchens with a 600 mm cabinet space
• Homes where a concealed, pull-out hood is preferred
• Cooking areas requiring ducted extraction to the outside
• Users seeking low-maintenance metal grease filters and LED lighting

Key specifications

• Width: 600 mm
• Maximum extraction power: 340 m³/h
• Motor power: 100 W
• Noise level: 57 dB
• Type: Semi built-in (pull out)
• Grease filter: Metal, washable
• Lighting: 2 × LED bulbs
• Colour: Black

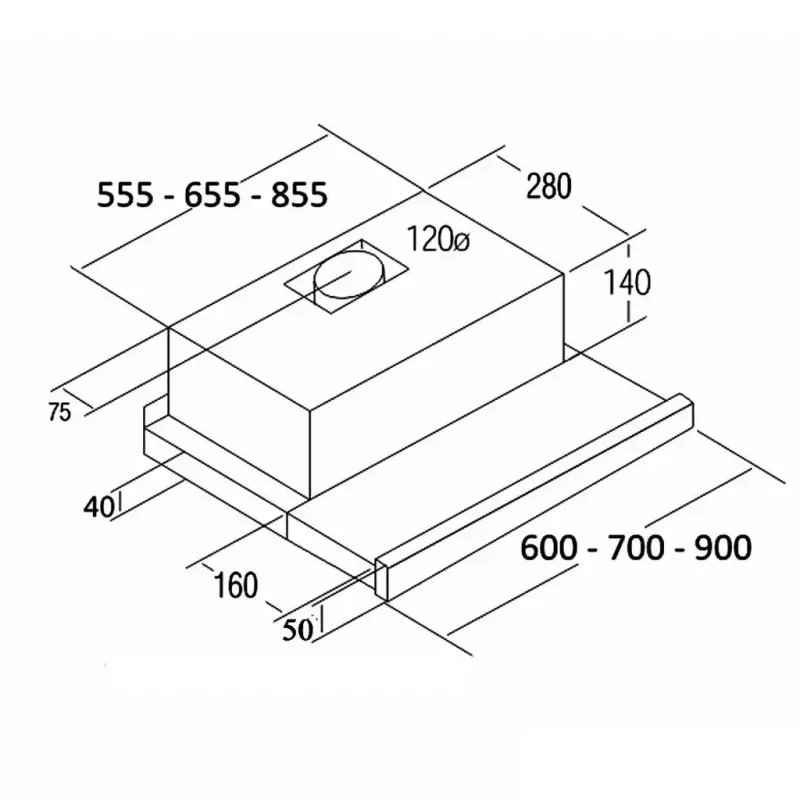

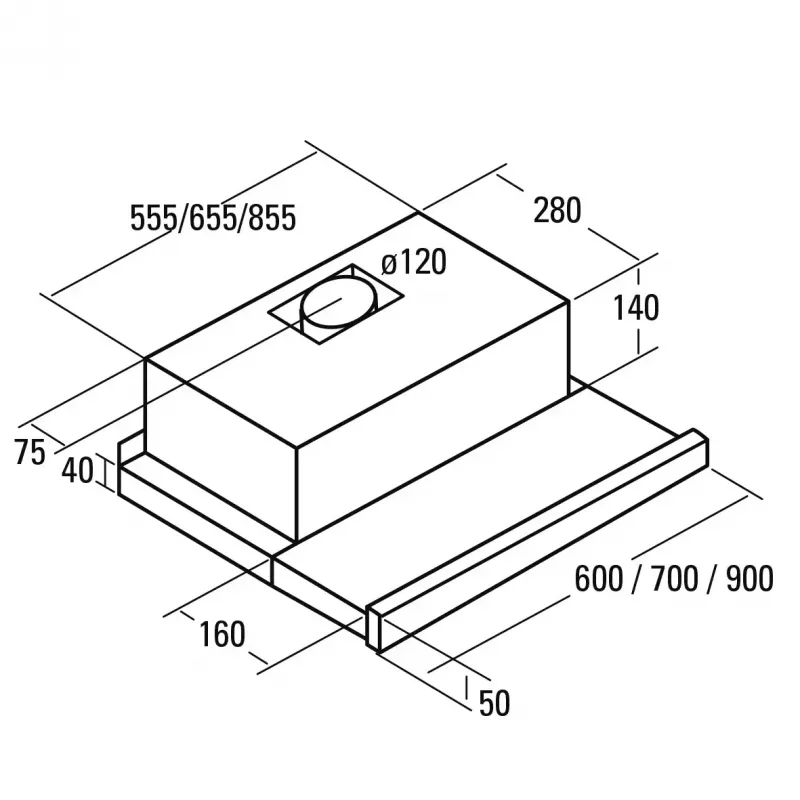

• Dimensions (H × D): 180 mm × 440 mm
• Exhaust outlet diameter: Ø 120 mm
• Annual energy consumption: 112 kWh

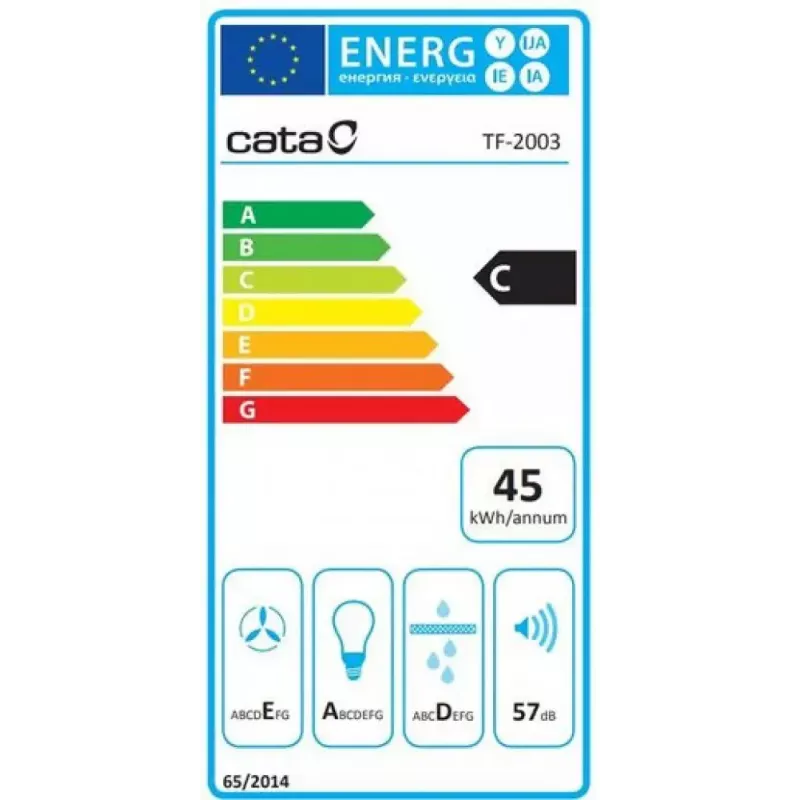

• Energy efficiency class: C

How to use

Install the CATA TF 2003 GBK into a 600 mm-wide cabinet space following the manufacturer’s mounting instructions and ensure correct connection to a 120 mm duct for external extraction. Slide the front panel out when cooking to increase the capture area and switch the fan speed appropriate to the intensity of cooking fumes. Use the integrated LED lights to illuminate the hob during preparation and cooking. Turn the hood off and slide the panel back in after the cooking has finished.

Recommendations

Clean the metal grease filters regularly according to usage intensity: typically every 1–2 months, or sooner with frequent frying. Wash filters in warm soapy water or a dishwasher if permitted by the manufacturer. Check the duct connection periodically for blockages and ensure the external vent is unobstructed. For quieter operation and improved energy use, select the lowest fan speed that effectively removes odors and steam.
