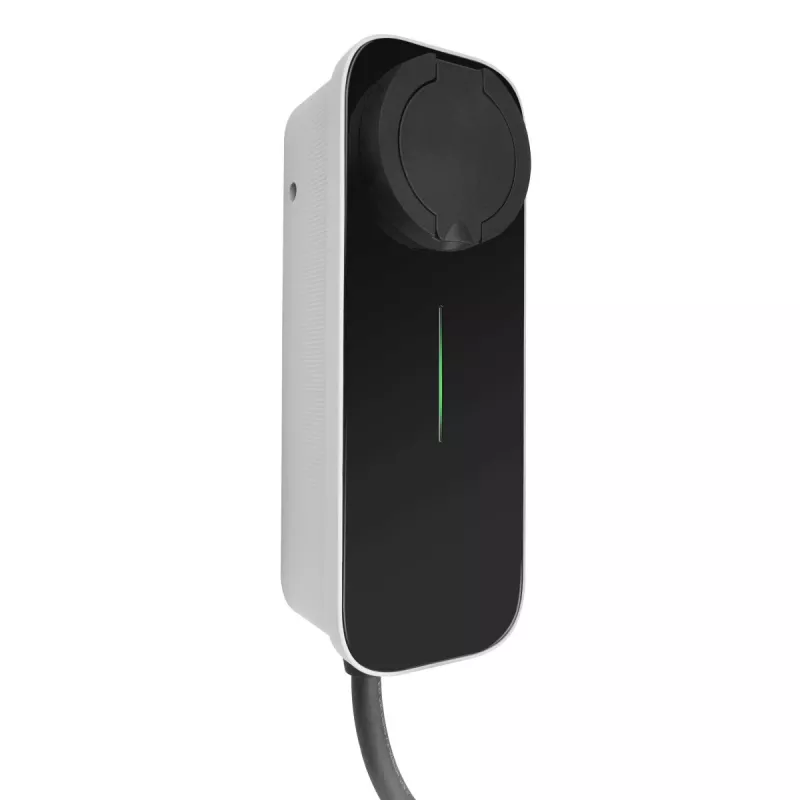

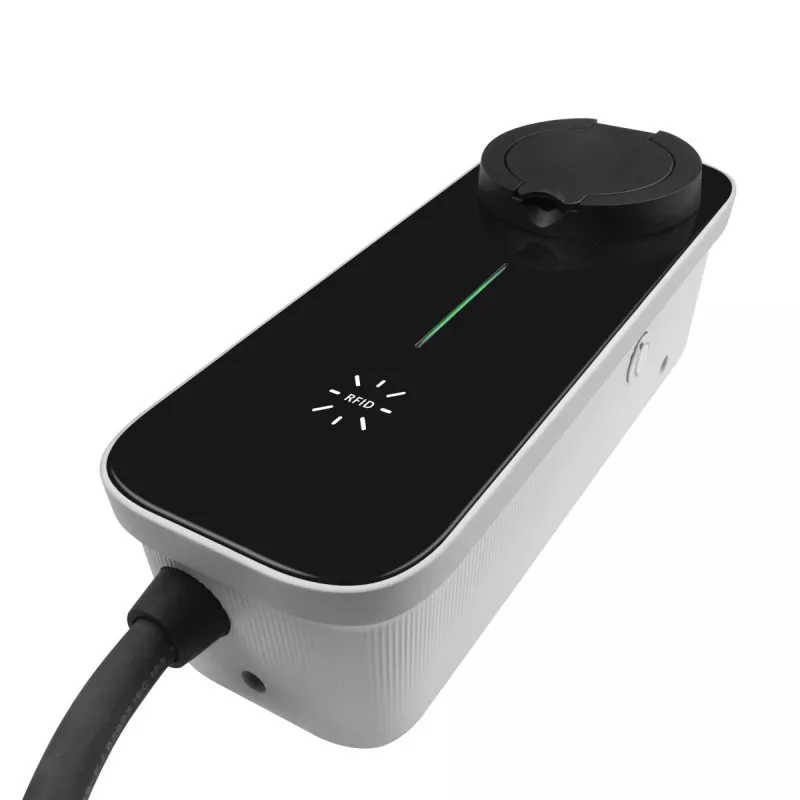

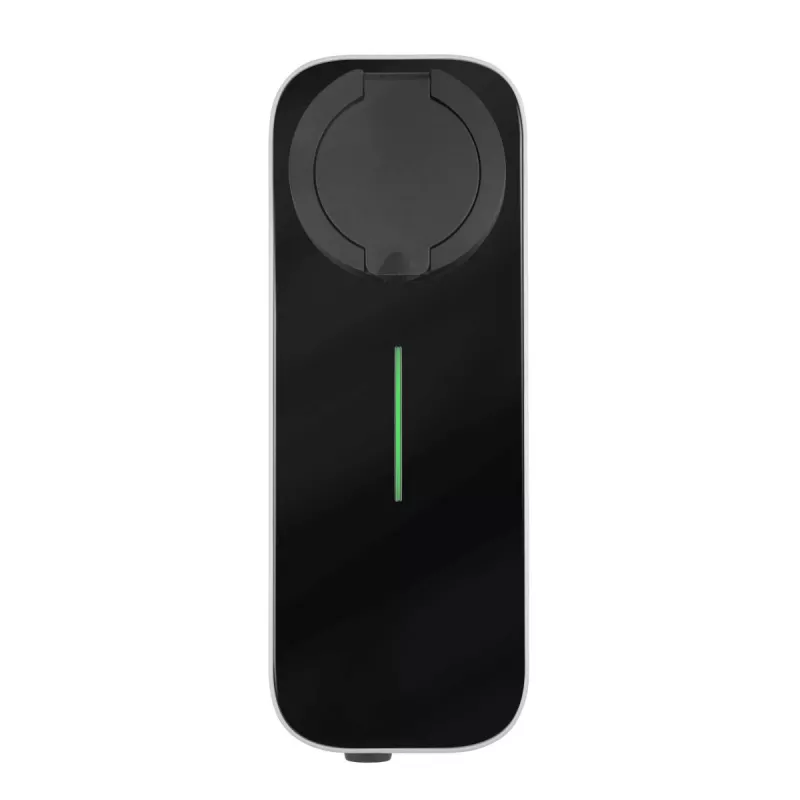

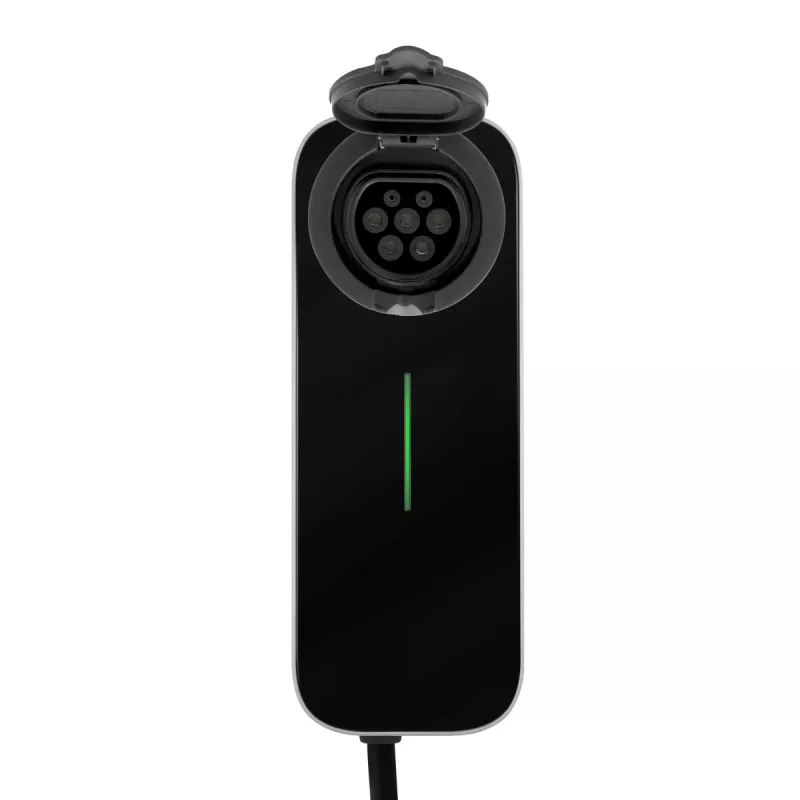

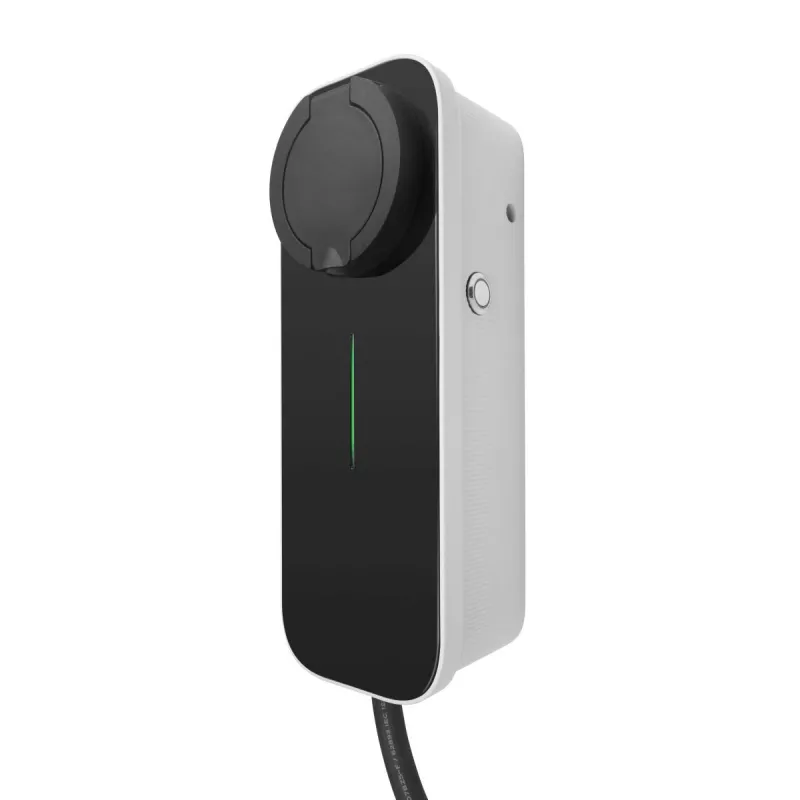

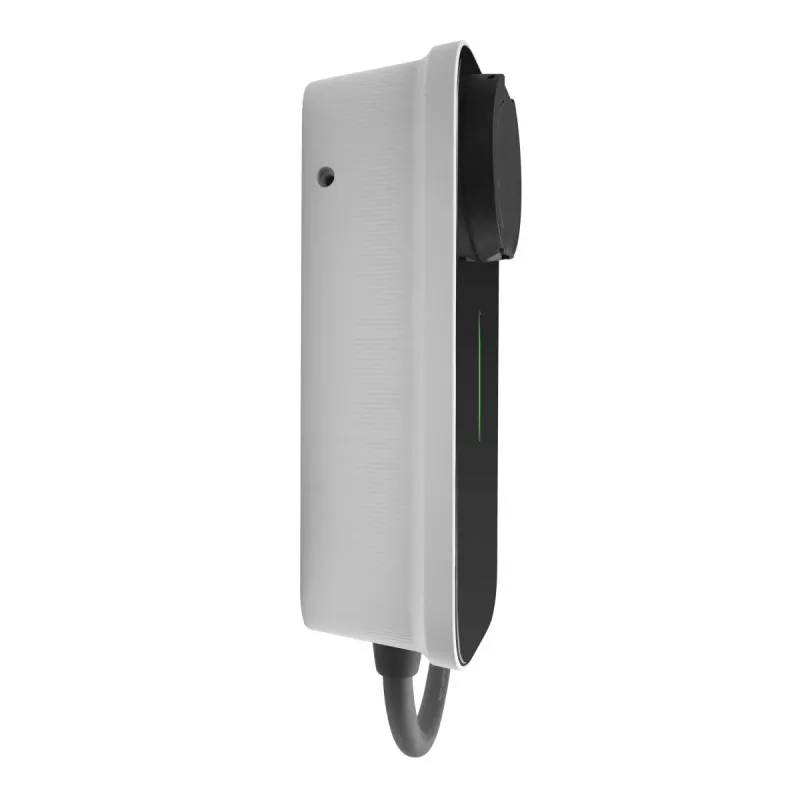

Caricabatterie EV Extralink BS30-BA-22KW-RFID stazione di ricarica 22kW RFID

The Extralink BS30-BA-22KW-RFID 22kW RFID Charging Station is a wall-mounted electric vehicle charger designed to deliver up to 22 kW of AC power for rapid charging of compatible EVs. Equipped with RFID authentication, the charger provides controlled access and basic user management, making it suitable for shared, commercial, and private installations. The unit is housed in a durable ABS+PC enclosure engineered to withstand varied weather conditions and continuous operation.

Advantages

The charger combines high charging power with RFID-based access control to prevent unauthorized use and simplify multi-user operation. Its compact wall-mounted design enables space-efficient installation while the robust housing offers resistance to environmental factors. Designed for straightforward installation and stable performance, the unit supports reliable energy delivery and reduced charging time compared with lower-power home chargers.

Suitable for

• Residential garages and home driveways where faster AC charging is needed
• Small businesses and workplaces providing employee charging
• Apartment buildings and shared parking areas requiring controlled access
• Commercial sites with moderate charging demand and user management

Key specifications

• Maximum AC charging power: 22 kW
• Authentication method: RFID card access
• Mounting type: wall-mounted
• Enclosure material: ABS+PC for weather resistance
• Intended use: AC charging of compatible electric vehicles
• Operation: continuous duty suitable for regular daily charging

How to use

Mount the charger on a suitable wall surface following local electrical codes and connect it to an appropriate AC supply by a qualified electrician. Assign authorized RFID cards to users as needed and present an authorized card at the reader to activate charging. Plug the vehicle charging cable or connector into the vehicle inlet after authentication; charging will start according to vehicle and charger communication. After charging completes, disconnect the connector and store it as recommended.

Recommendations

Install the charger in a location protected from direct physical impact and ensure the supply wiring and protective devices match the charger’s power rating. Use only compatible vehicle connectors and follow vehicle manufacturer guidance. Regularly inspect the enclosure and cable for damage, and have servicing performed by qualified technicians. For multi-user environments, maintain a record of issued RFID cards and revoke access when cards are lost.
