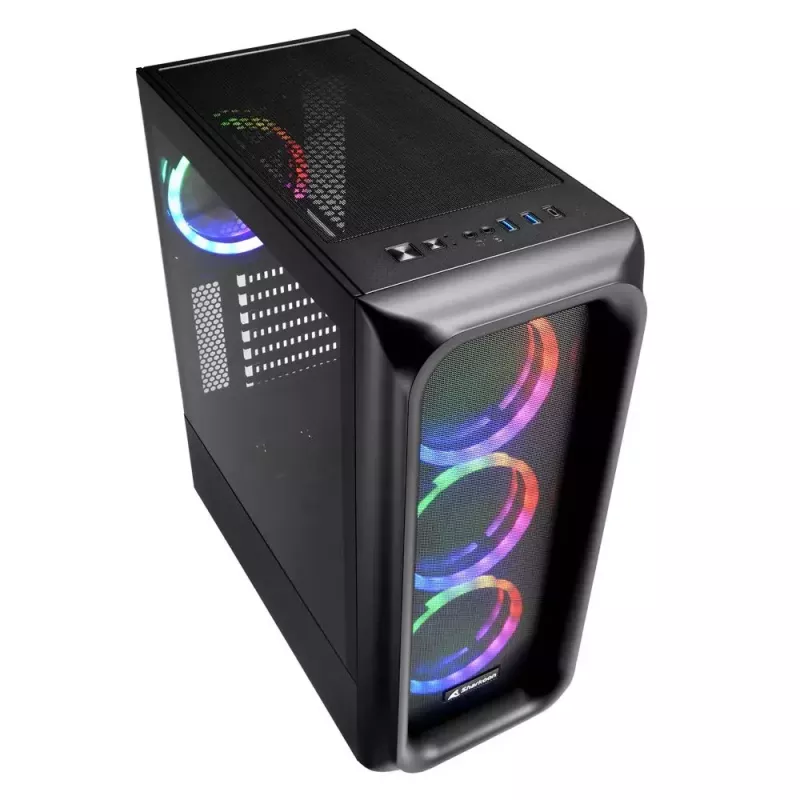

Case PC Sharkoon TK5M RGB ATX Desktop nero

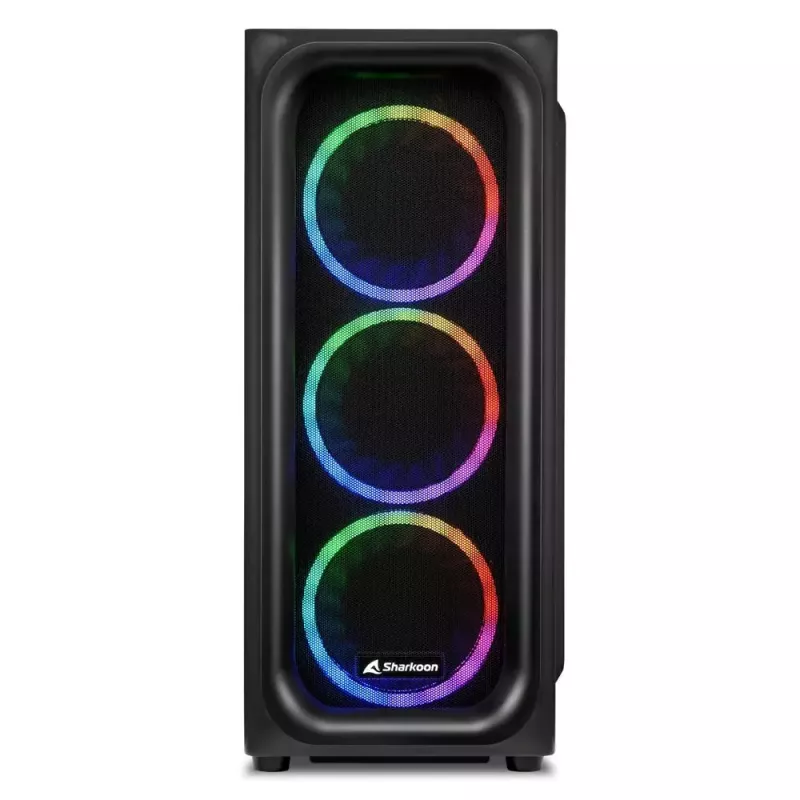

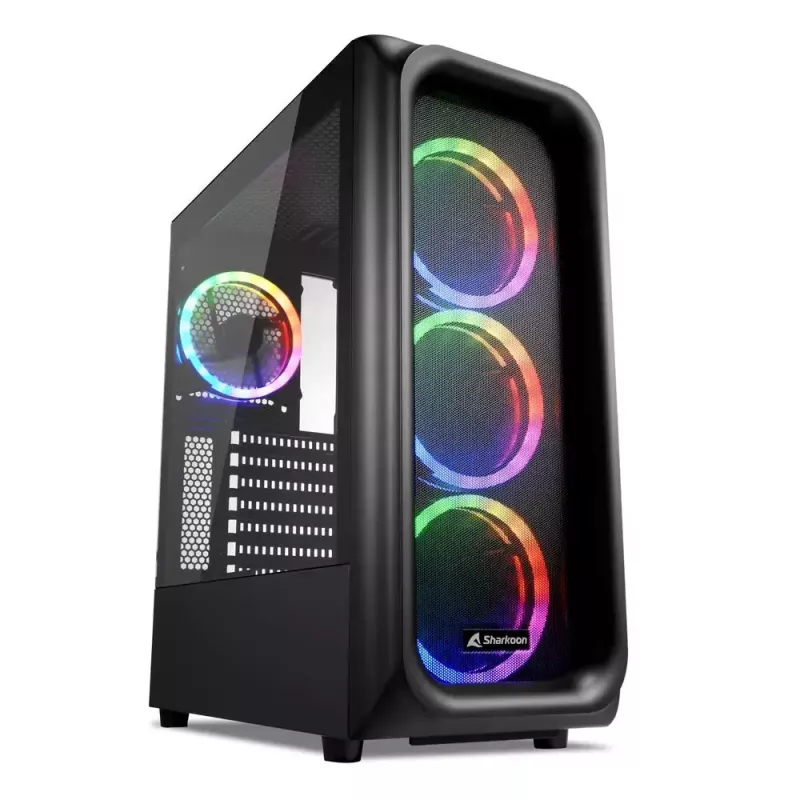

The ATX case TK5M RGB combines a mesh front panel and four pre-installed 120 mm RGB LED fans to provide effective airflow and cooling for hardware. A tempered glass side panel offers clear visibility into the interior, while the included 4-port RGB controller with 14 selectable lighting modes enables adjustable illumination. The I/O panel features two USB 3.0 ports and a USB Type-C 3.2 Gen 2 port for modern peripherals and fast data transfer.

Advantages

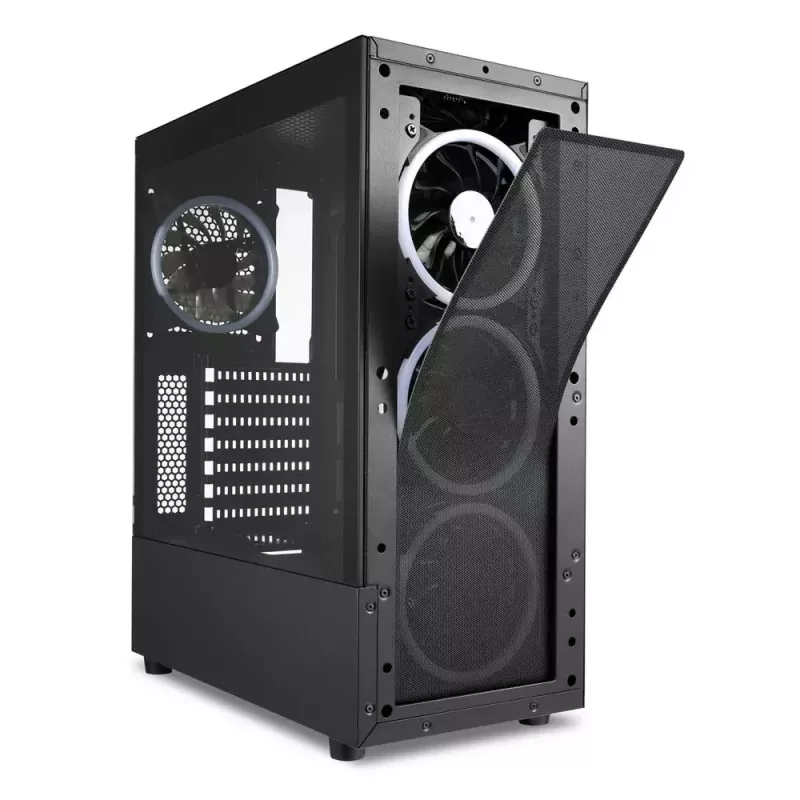

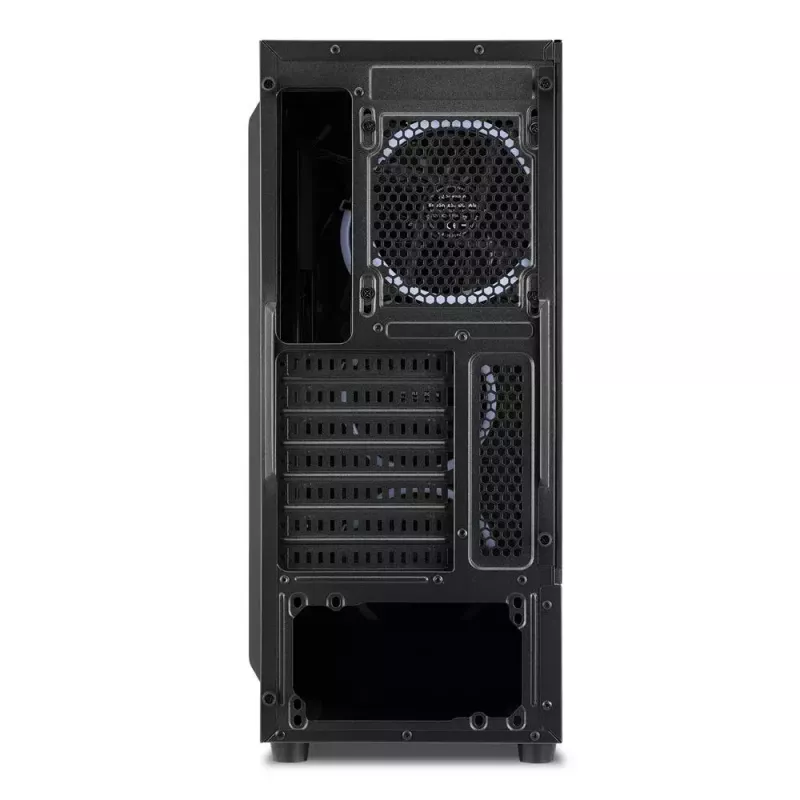

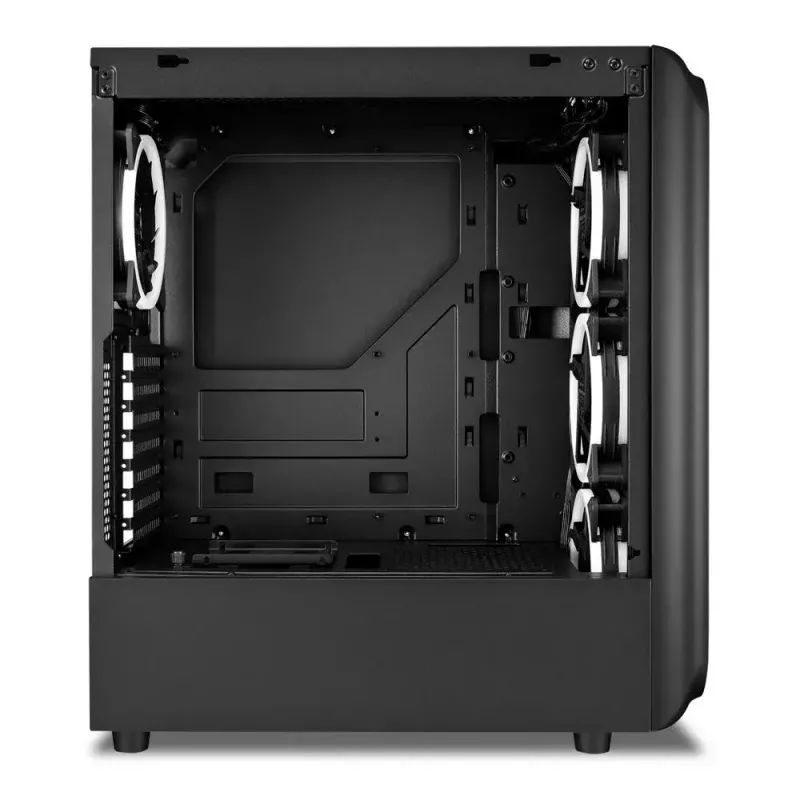

The TK5M RGB arrives with three 120 mm RGB fans at the front and one 120 mm RGB fan at the rear, delivering balanced airflow out of the box. The magnetic front dust filter and slotted frame are easy to remove and reattach for cleaning. The tempered glass side panel presents installed components clearly, and a power supply tunnel keeps cables organized and out of sight. Despite a compact footprint, the case supports long graphics cards, tall CPU coolers, and standard ATX power supplies.

Key specifications

• Pre-installed fans: 4 × 120 mm RGB LED
• RGB controller: 4-port with 14 lighting modes
• Front panel: air-permeable mesh with magnetic dust filter
• I/O: 2 × USB 3.0, 1 × USB Type-C (USB 3.2 Gen 2, up to 10 Gbps)

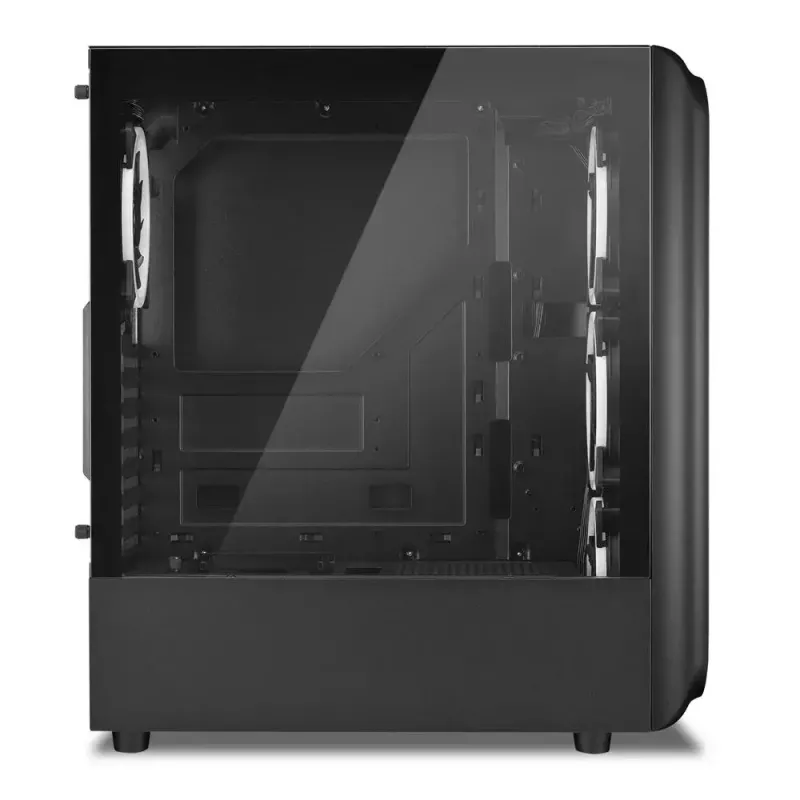

• Side panel: tempered glass
• Max GPU length: 31 cm
• Max CPU cooler height: 15.7 cm
• Max PSU length: 17.5 cm
• Drive bays: supports 2.5" drives and up to two 3.5" HDDs in HDD/SSD cage; additional 2.5" mounting locations on motherboard tray and PSU tunnel

How to use

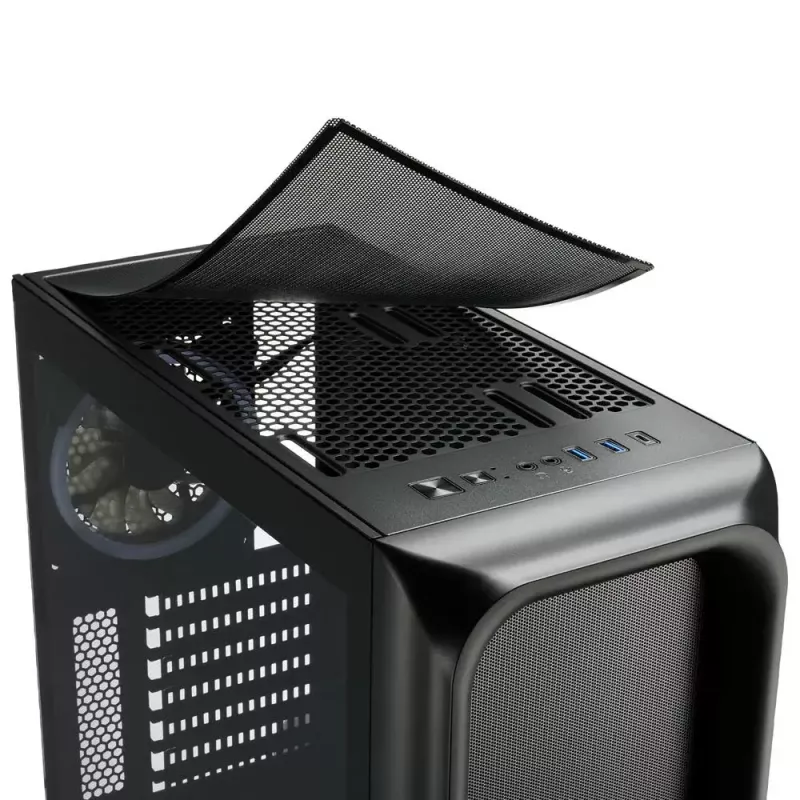

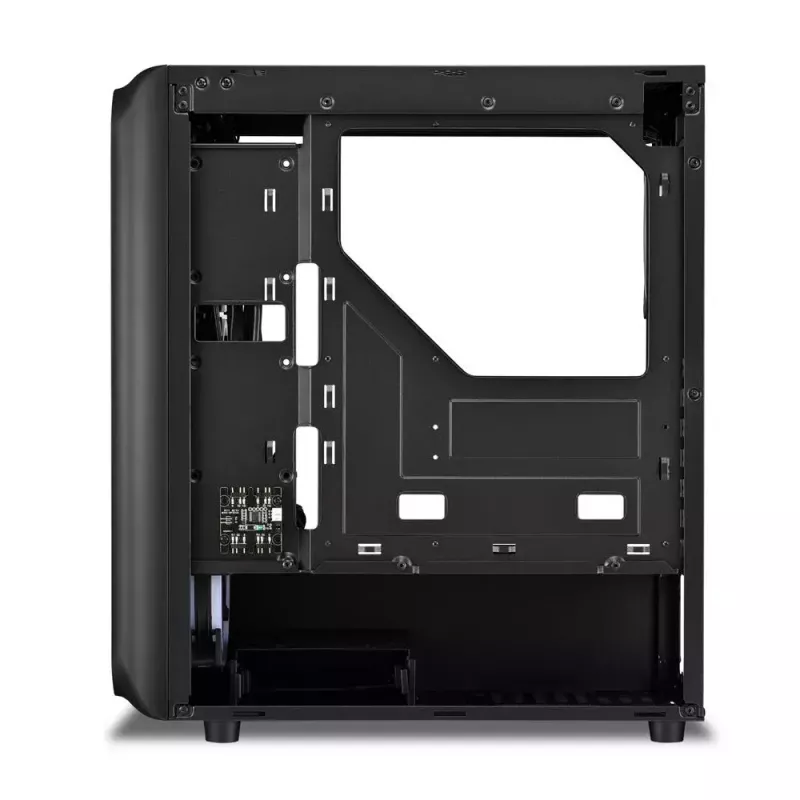

Install the motherboard and route cables through the pass-throughs behind the tray to maintain a tidy interior. Place the power supply into the PSU tunnel and mount storage drives into the HDD/SSD cage or into the designated 2.5" mounting points. If additional cooling is required, install up to two extra fans under the top panel (supports two 120 mm or two 140 mm fans). Connect the included RGB fans to the 4-port RGB controller and select a lighting mode to illuminate the interior. Use the I/O panel USB ports, including the Type-C port, to connect high-speed peripherals.

Recommendations

For optimal cooling and dust management, keep the magnetic front filter clean and consider adding top-mounted fans if you install high-power components. Verify GPU, CPU cooler and PSU dimensions against the case limits (GPU up to 31 cm, CPU cooler up to 15.7 cm, PSU up to 17.5 cm) before purchase to ensure compatibility.
