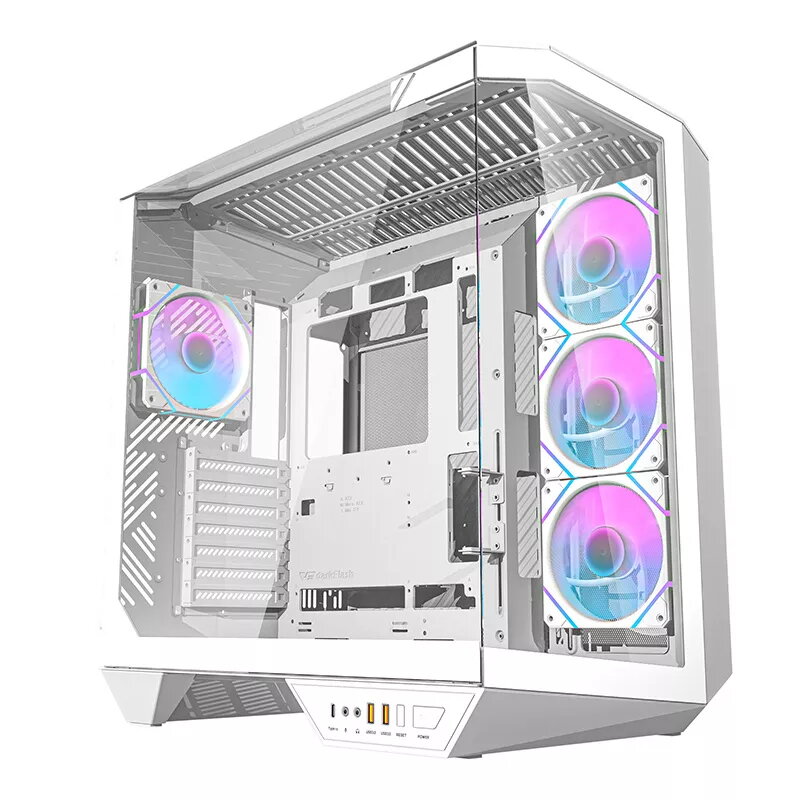

Case per computer Darkflash DY470 ATX bianco

Darkflash DY470 computer case in white with four DM12 Pro ARGB fans and a GPU bracket designed for ATX, Micro ATX and ITX builds. The tempered glass side panels expose internal components while the spacious Big Tower interior supports large graphics cards, multiple storage drives and extensive cooling options. The included GPU holder protects the graphics card and the front I/O provides USB 3.0, USB-C 3.2 and HD audio connectors for everyday connectivity.

Advantages

The case offers a roomy interior with support for horizontal GPU lengths up to 410 mm and vertical mounting up to 390 mm (with an optional PCIE4.0 cable). Four preinstalled DM12 Pro ARGB fans (up to 1600 RPM, ~27.5 dB) provide quiet, effective airflow and up to 20 ARGB lighting effects compatible with ASUS AURA SYNC (5V). The design includes full dust filters and a back-connect motherboard layout for cleaner cable management, plus an included GPU bracket to prevent sagging and mechanical stress on the graphics card.

Key specifications

• Manufacturer: Darkflash
• Model: DY470
• Type: Big Tower, color: White
• Side panel: Tempered glass
• Motherboard compatibility: ATX / Micro ATX / ITX
• Maximum GPU length: 410 mm (horizontal) / 390 mm (vertical with optional PCIE4.0 cable)
• Maximum CPU cooler height: 175 mm
• Maximum PSU length: 200 mm (bottom-mounted)
• Internal drive bays: 3.5" HDD x2, 2.5" SSD x1
• Expansion slots: 7 (vertical mounting supported with optional cable)
• Preinstalled fans: 4 × DM12 Pro ARGB (up to 1600 RPM, 27.5 dB)
• Max fan capacity: up to 10 × 120 mm
• Water cooling support: up to two 360 mm radiators (top and side), rear 120 mm
• Fan connectors: 4-pin PWM and 5V 3-pin A-RGB
• Front I/O: USB 3.0 ×2, USB-C 3.2 ×1, HD Audio
• Material: 0.7 mm SPCC
• Dimensions (H×W×D): 497 × 298 × 473 mm

How to use

Install the chosen motherboard (ATX, Micro ATX or ITX) following the included manual and route most cables behind the back-connect area to keep the front interior tidy. Fit the power supply to the bottom bay (up to 200 mm), mount storage drives into the provided HDD/SSD slots and install the CPU cooler (maximum height 175 mm). Place the graphics card horizontally up to 410 mm or vertically up to 390 mm when using an optional PCIE4.0 vertical cable, and secure it with the included GPU holder to avoid sagging. Connect the DM12 Pro fans to 4-pin PWM and 5V A-RGB headers and, if desired, synchronize lighting with ASUS AURA SYNC (5V).

Recommendations

For optimal airflow and noise balance, combine the four preinstalled DM12 Pro fans with additional 120 mm fans as needed and regularly clean the removable dust filters. Use the GPU bracket when installing heavier graphics cards and consider a PCIE4.0 vertical cable for vertical GPU mounting if you plan that configuration.
