Case rack per server TECHLY I-CASE IPC-240L, 2U, Micro-ATX, 4 vani 3,5 pollici, 1 vano 5,25 pollici, 465x400x88,8 mm, nero

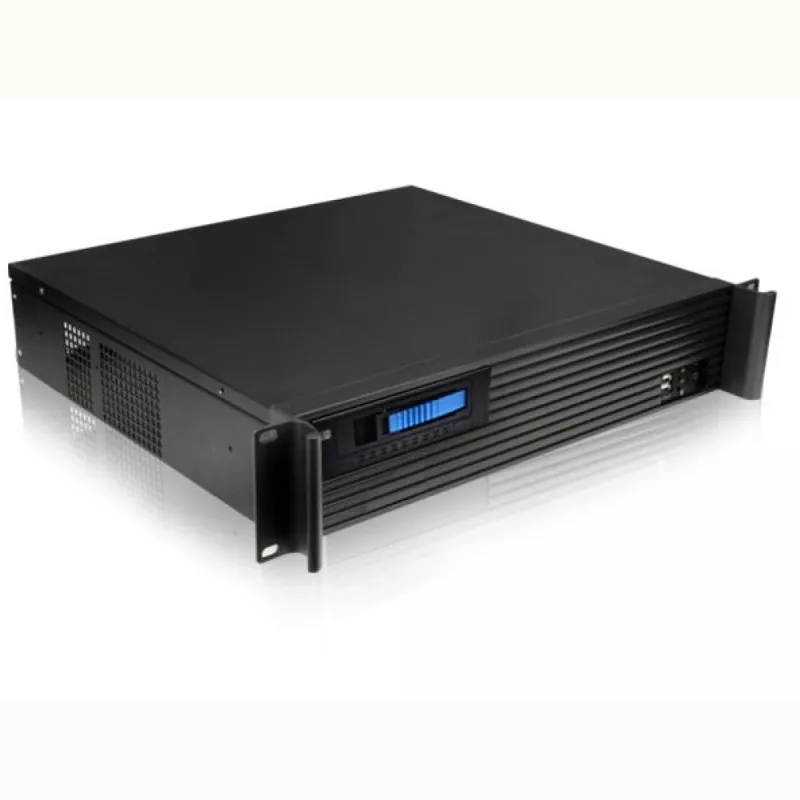

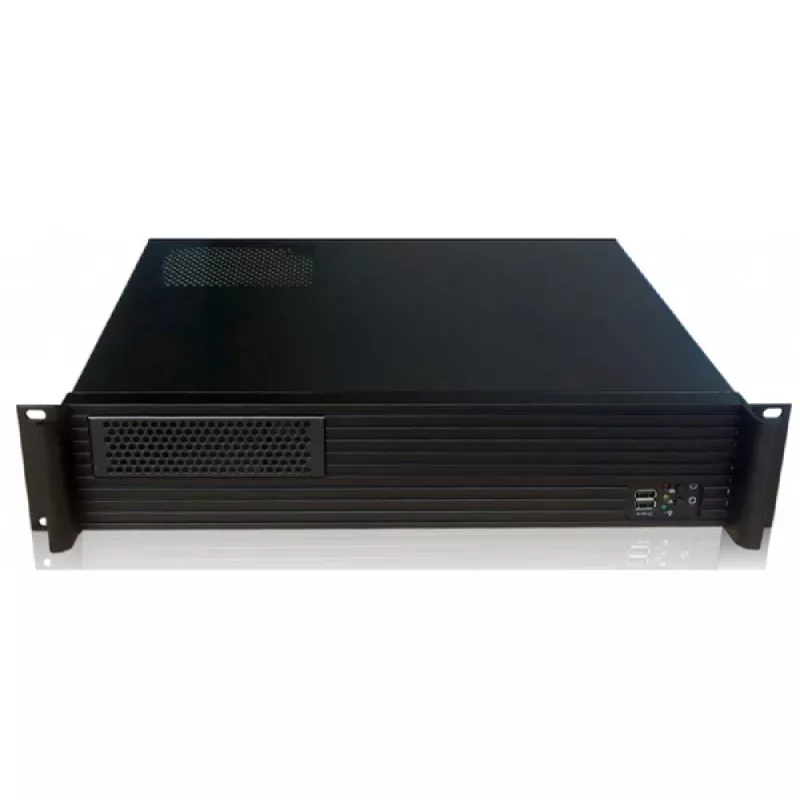

The Techly I-CASE IPC-240L Rack Black is an ultra-compact server chassis suitable for rack mounting or use as an HTPC/desktop case. It supports Micro ATX and Mini ITX motherboards, accepts an ATX PS2 power supply, and provides space for up to four internal 3.5" hard drives plus one internal CD-ROM drive. The front panel can accommodate two 80 mm fans to improve airflow within the 400 mm depth enclosure.

Advantages

This chassis combines a small footprint with practical expandability: it fits in a standard rack while still allowing multiple internal 3.5" HDDs and an optical drive. Compatibility with ATX PS2 power supplies and Micro ATX/Mini ITX motherboards ensures flexibility for server or compact workstation builds. Front fan mounting locations permit additional cooling where needed.

Suitable for

• Small rack-mounted servers for offices or branch sites
• Home server or NAS builds with multiple 3.5" HDDs
• Compact HTPC or desktop systems using Micro ATX or Mini ITX motherboards

Key specifications

• Brand: TECHLY
• Model: I-CASE IPC-240L
• MPN: I-CASE IPC-240L
• EAN: 8051128101980
• Dimensions (W×D×H): 465 × 400 × 88.8 mm
• Form factor support: Micro ATX, Mini ITX
• Power supply support: ATX PS2

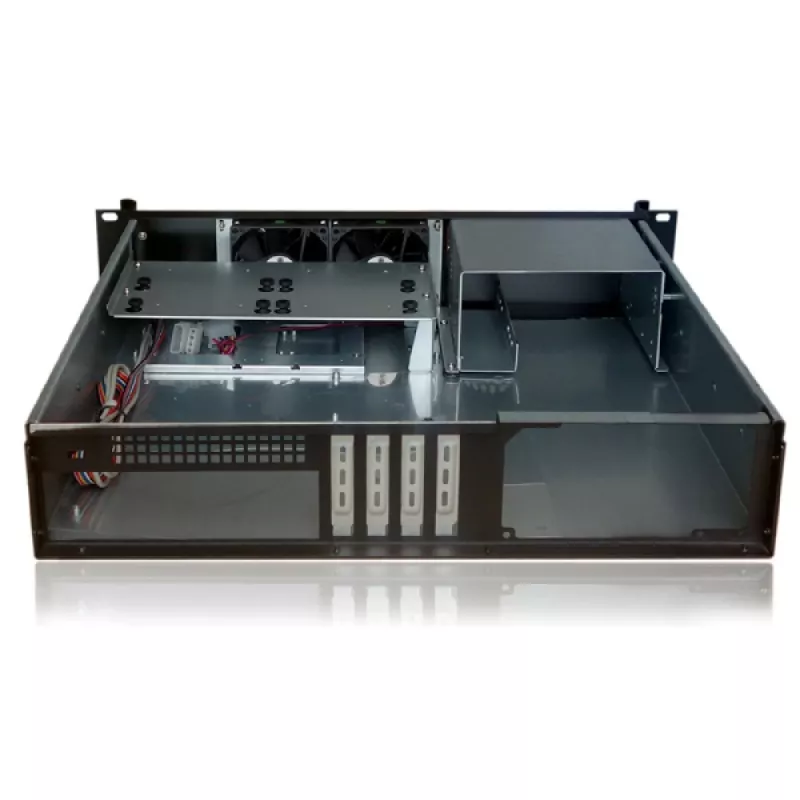

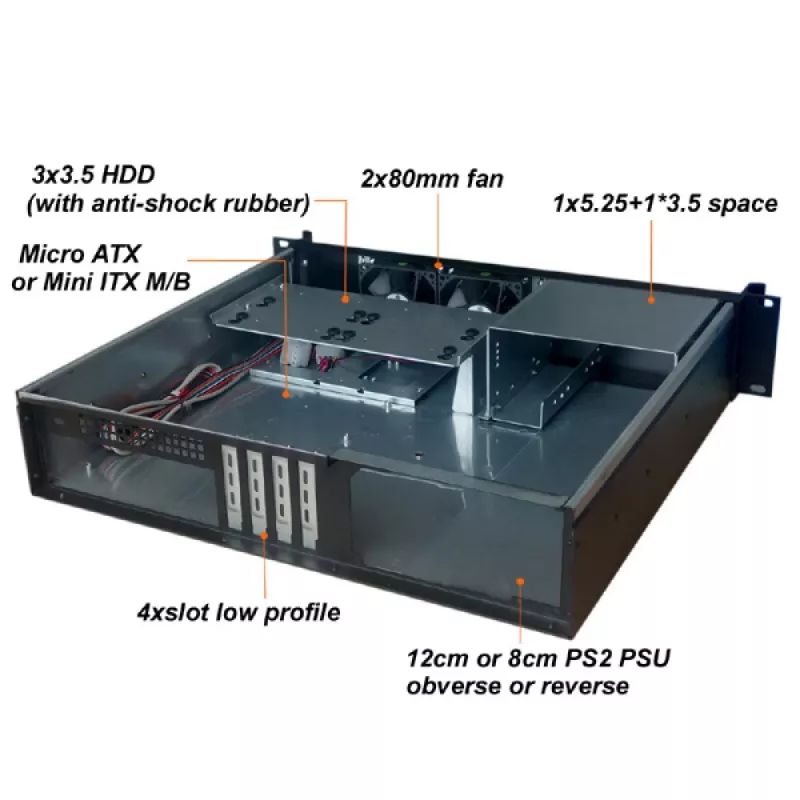

• Internal drive bays: 4 × 3.5" HDD, plus space for 1 × internal CD-ROM
• Front fan support: 2 × 80 mm

How to use

Install a compatible Micro ATX or Mini ITX motherboard and mount an ATX PS2 power supply in the designated bay. Secure up to four 3.5" hard drives in the internal drive slots and, if required, install a CD-ROM in the available internal bay. Fit up to two 80 mm fans on the front panel to improve airflow. Mount the chassis into a 19" rack using standard rack rails or place it horizontally as an HTPC/desktop case depending on the intended setup.

Recommendations

Use low-profile CPU coolers and short-depth components where possible to ensure adequate clearance in the 400 mm deep chassis. Choose quality 80 mm fans for balanced airflow and low noise when installing front cooling. Verify power supply clearance and connector compatibility before assembly.
