Cavo audio PROCAB PLS225/3 300 m nero rame AWG 13

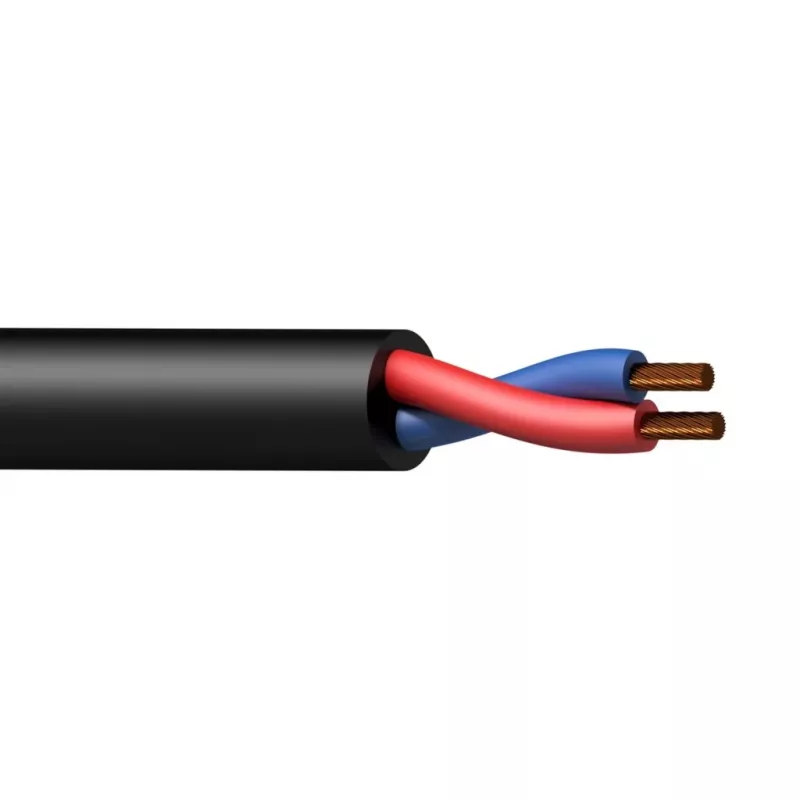

The PROCAB PLS225/3 300m Black Copper AWG 13 is a professional loudspeaker cable designed for long runs and reliable audio transmission. It consists of two 2.5 mm² (13 AWG) conductors, each made from 50 strands of 0.24 mm high-purity copper, and is finished in a smooth black PVC jacket. The construction balances electrical performance and flexibility to suit fixed installations as well as demanding mobile and touring setups.

Advantages

Stranded high-purity copper conductors provide low resistance and consistent signal transmission while offering greater flexibility compared with single-strand wire of the same cross section. The 2.5 mm² conductor size (equivalent to 13 AWG) supports efficient power delivery for loudspeakers across long cable runs. The smooth, flexible PVC outer jacket (Highflex™) eases pulling through trusses and conduits and delivers reliable rolling and unrolling behavior for frequent deployment.

Suitable for

• Permanent loudspeaker installations in venues and auditoriums
• Mobile and touring audio setups where cables are rolled and unrolled frequently
• Stage and PA systems requiring long cable runs with minimal signal loss
• Installed AV systems in conference rooms, houses of worship, and schools

Key specifications

• Cable length: 300 m
• Conductor cross section: 2.5 mm² (13 AWG)
• Conductor construction: stranded copper, 50 strands × 0.24 mm
• Jacket material: flexible PVC (Highflex™)
• Outer colour: black
• Designed for: loudspeaker / audio power transmission

How to use

Route the cable following standard audio installation practices, avoiding tight bends and sharp edges that could damage the jacket or conductors. For fixed installations, pull the cable through conduits or trusses using appropriate cable lubricant or pulling equipment as needed. For mobile applications, roll and unroll the cable using smooth coils to prevent kinks; store on reels or in protective cases when not in use. Terminate the conductors with compatible speaker connectors or solder joints following polarity conventions and ensuring secure mechanical and electrical connections.

Recommendations

Use the PROCAB PLS225/3 where a balance of electrical performance and flexibility is needed: choose this cable for runs that require durable jacket performance, frequent handling, or long-distance speaker feeds. Maintain bend radii recommended for 2.5 mm² cables and avoid exposure to excessive heat or sharp objects to preserve conductor integrity and jacket life.
