Cavo di ricarica EV Akyga AK-EC-08 Type 2 a Type 1, monofase, 32 A, 7,2 kW, 6 m

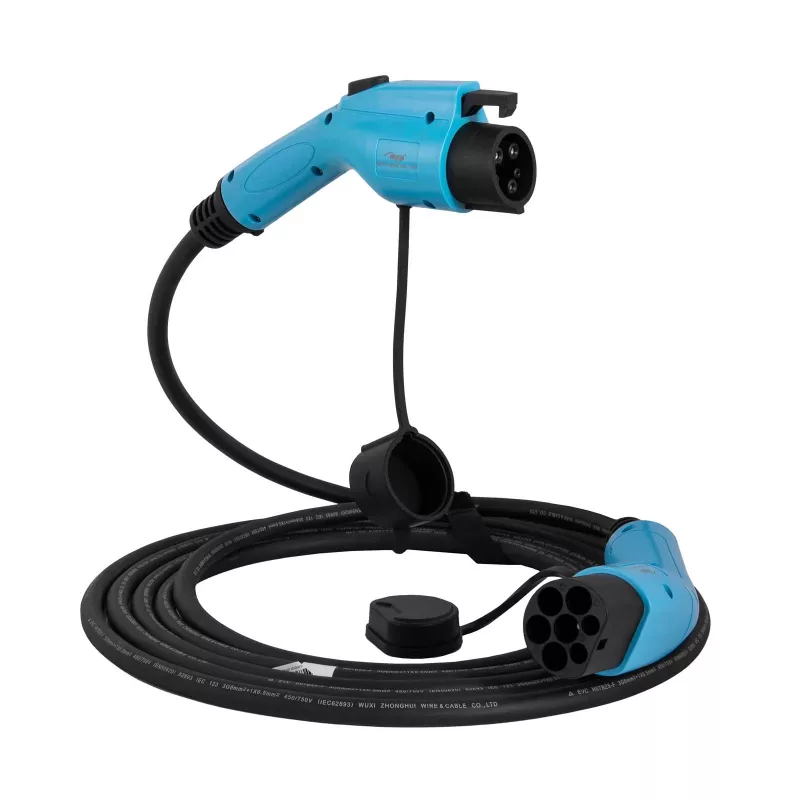

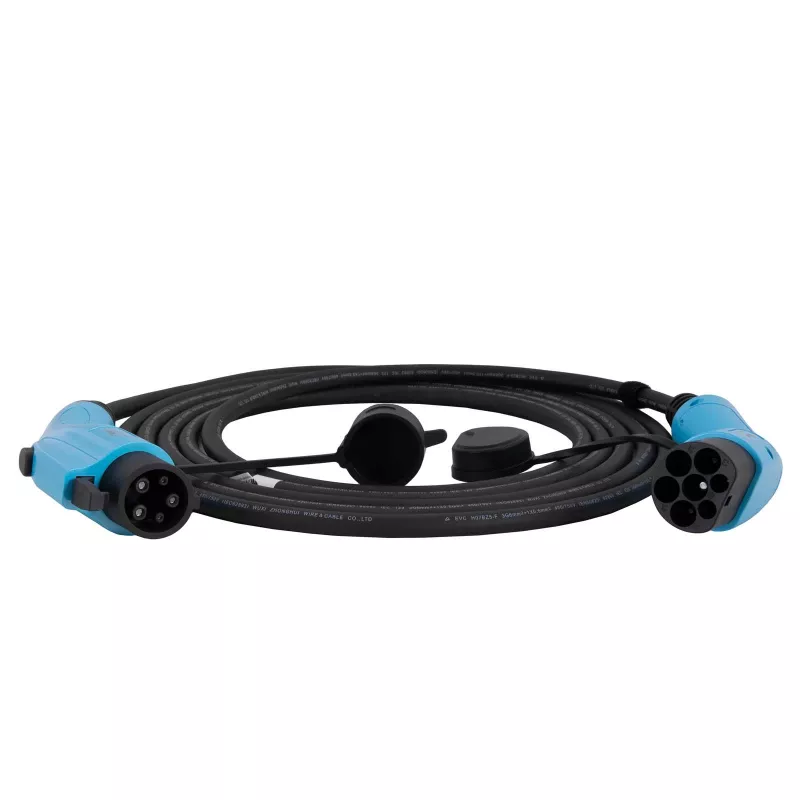

The Akyga AK-EC-08 is an EV charging cable with a Type 2 (IEC 62196-2) male connector and a Type 1 (SAE J1772) female connector. It supports single-phase charging with a maximum current of 32 A and a maximum power of 7.2 kW, and features a 6 m cable.

Key features

• Type 2 to Type 1 charging cable
• Single-phase, 32 A, 7.2 kW
• 6 m cable length
• Copper conductors
• IP54 protection rating
• Operating temperature: -30°C to +50°C

Specifications

• Brand: Akyga
• MPN: AK-EC-08

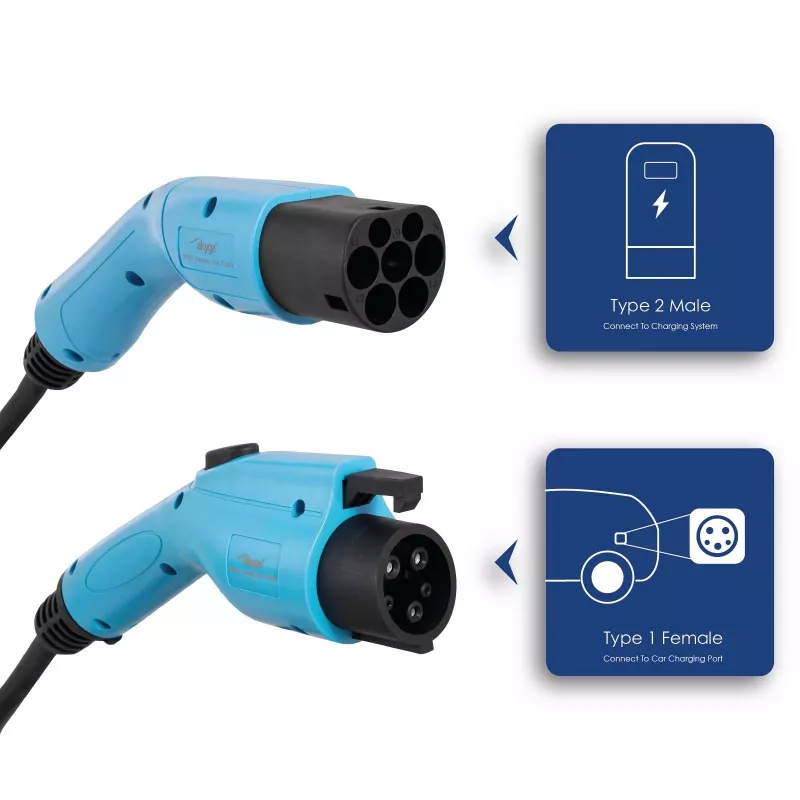

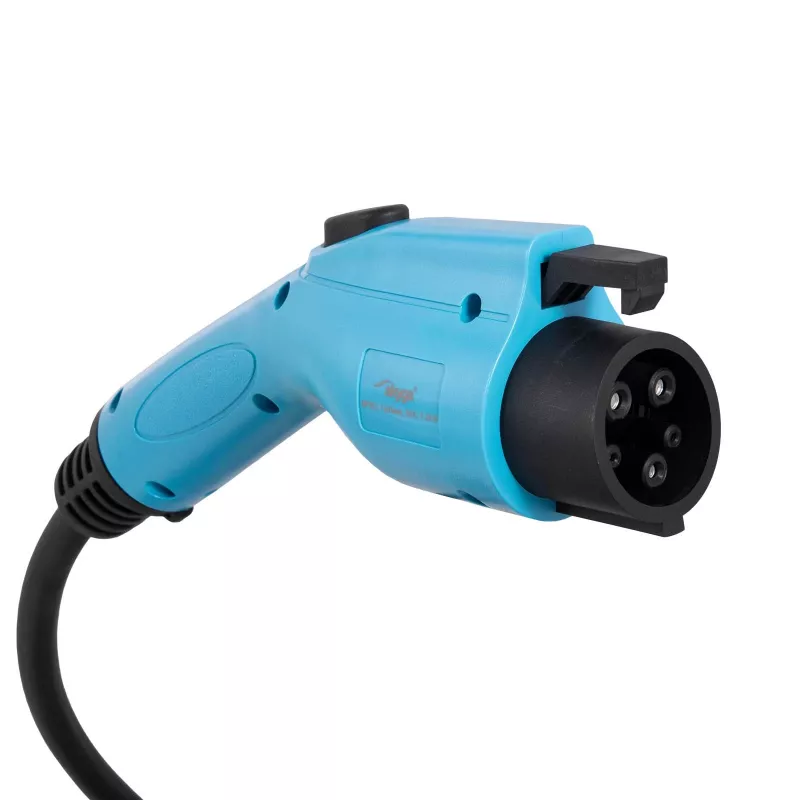

• Connector 1: Type 1 (SAE J1772) female connector

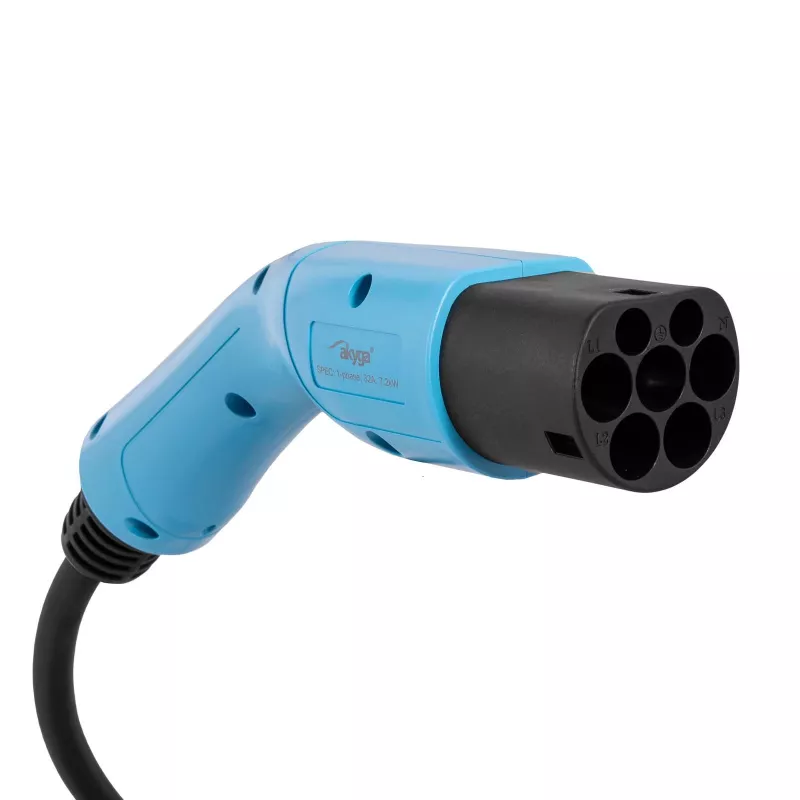

• Connector 2: Type 2 (IEC 62196-2) male connector
• Maximum operating current per phase: 32 A
• Maximum operating power (single-phase): 7.2 kW

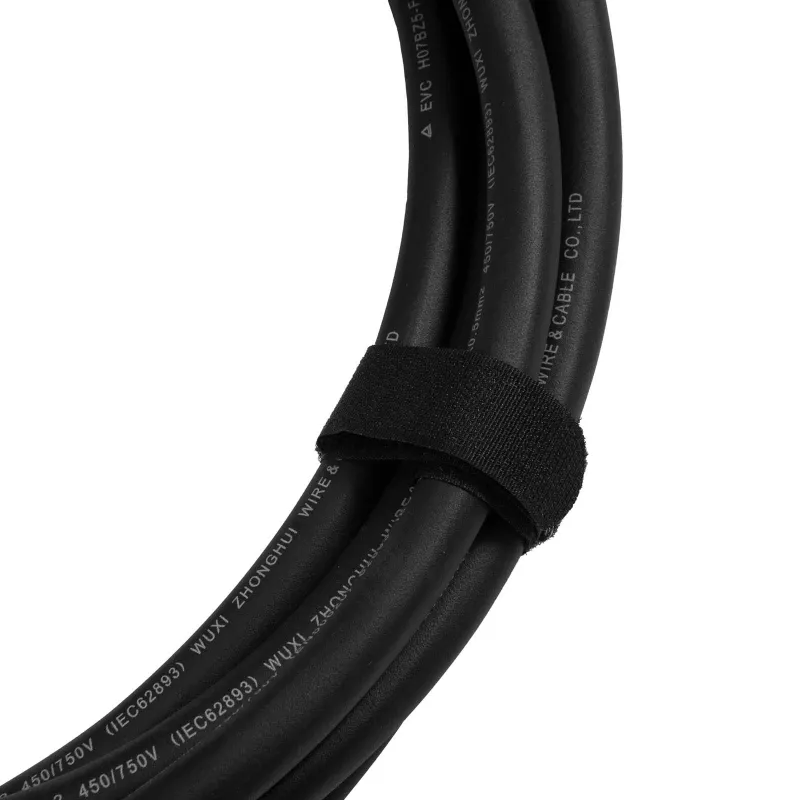

• Cable length: 6 m
• Cable colour: Black, blue
• Conductor material: Copper
• Conductor cross section: 3 x 6 mm² + 1 x 0.5 mm²
• Operating temperature (T-T): -30°C to +50°C
• International Protection (IP) code: IP54
• Certification: CE, FCC, RoHS, REACH
• Weight: 3.06 kg
