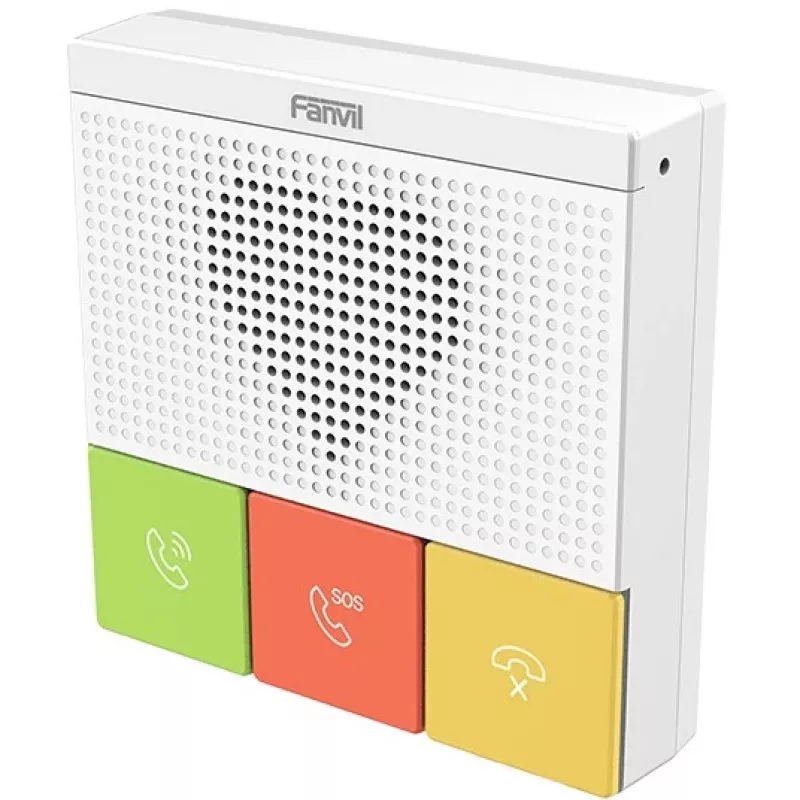

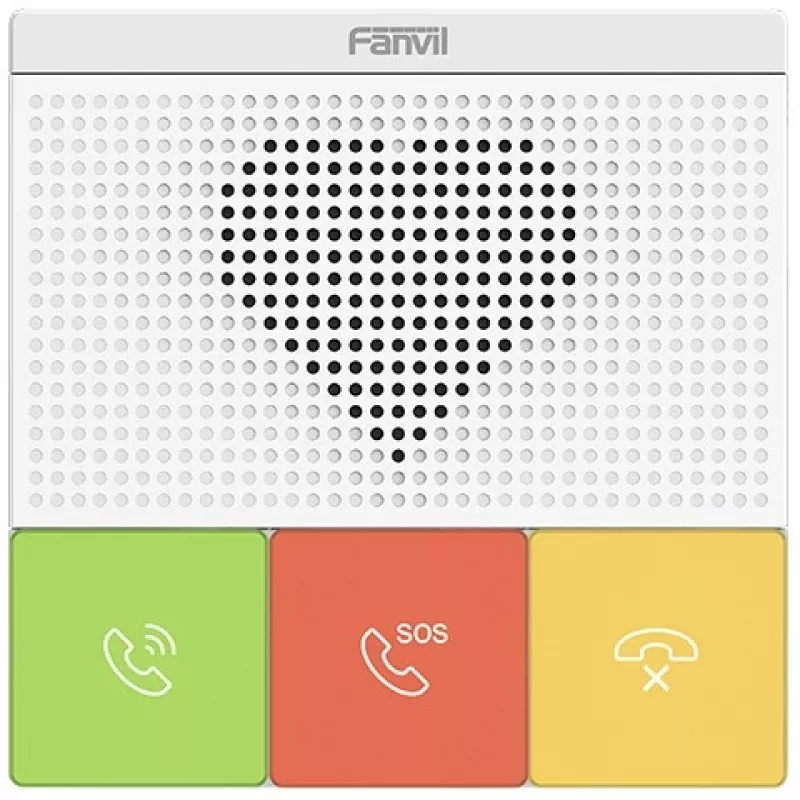

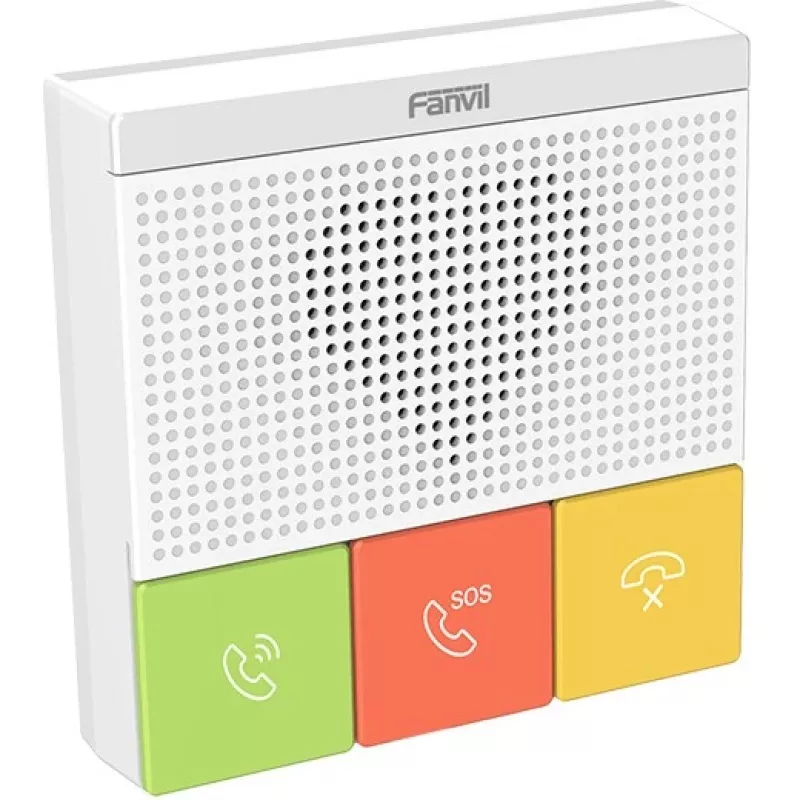

Citofono audio Fanvil Y501

The Fanvil Y501 audio intercom system is designed for indoor healthcare and assisted-living environments such as home-based care and nursing homes. It supports emergency communication, security protection and broadcasting while offering compact dimensions (87.6 × 87.6 × 30 mm), low power consumption (1.42 W) and a white wall-mountable design. The device supports both wired and wireless connectivity, with models that include built-in 2.4G & 5G Wi‑Fi (Y501W / Y501W-E) and uses a 433 MHz frequency for additional wireless features.

Advantages

The Fanvil Y501 provides HD audio for clear voice communication, two SIP accounts for flexible VoIP integration, detachable DSS keys for customizable shortcuts, and IP54 protection against dust and splashes for reliable indoor operation. Its compact form factor and low power draw make it suitable for continuous use in care settings, and available Wi‑Fi models simplify installation where wired networks are impractical.

Suitable for

• Home-based care and assisted living facilities
• Nursing homes and healthcare wards
• Indoor emergency call points and security intercoms
• Rooms or corridors requiring broadcasting or paging

Key specifications

• Model: Fanvil Y501
• Dimensions: 87.6 mm × 87.6 mm × 30 mm
• Power consumption: 1.42 W
• Connectivity: Wired SIP; Y501W / Y501W-E include built-in 2.4G & 5G Wi‑Fi
• Wireless frequency: 433 MHz (additional features)
• SIP accounts: 2
• Protection rating: IP54 (dust and splash resistant)
• Color: White

How to use

Mount the Fanvil Y501 on a standard 86 box or install it on a wall using the wall-mountable option. Connect the device to your IP network and configure SIP account details through the web interface or provisioning system. For Wi‑Fi models, enable and connect to the local 2.4G or 5G network if a wired connection is not available. Assign or program the detachable DSS keys to needed functions such as emergency call, paging or speed-dialing.

Recommendations

Place the unit at an accessible height for users and position it away from strong sources of interference. Use the IP54 protection rating as guidance for indoor placement where occasional splashes may occur, and test SIP integration and audio levels after installation to ensure reliable emergency communication.
