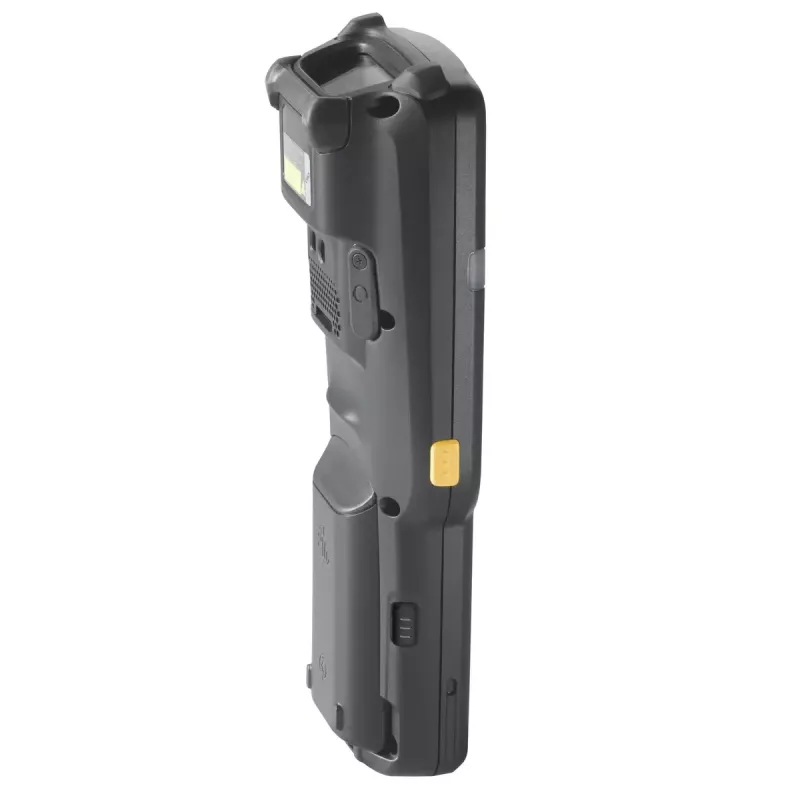

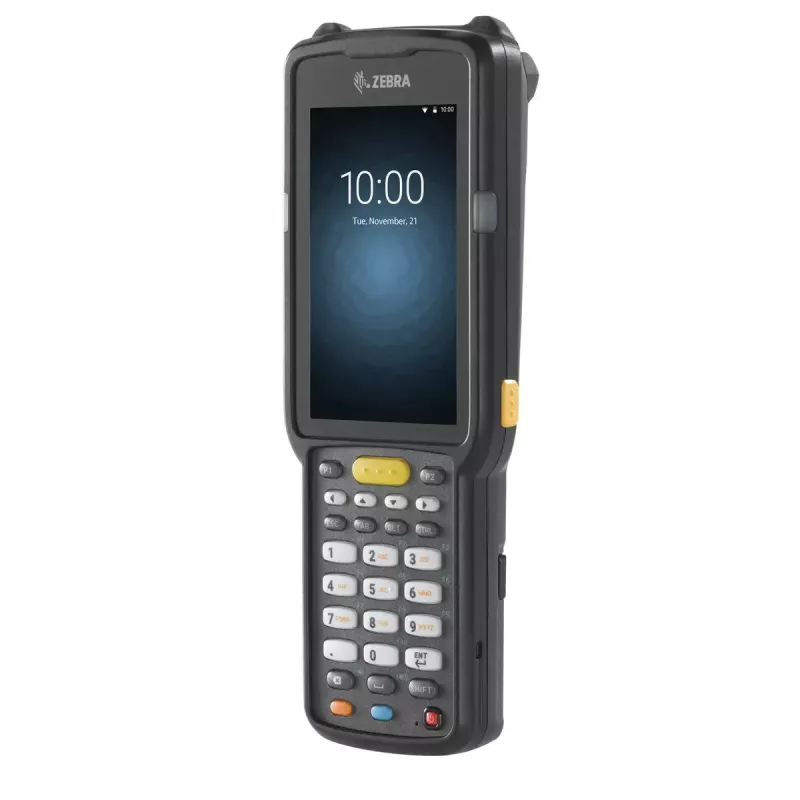

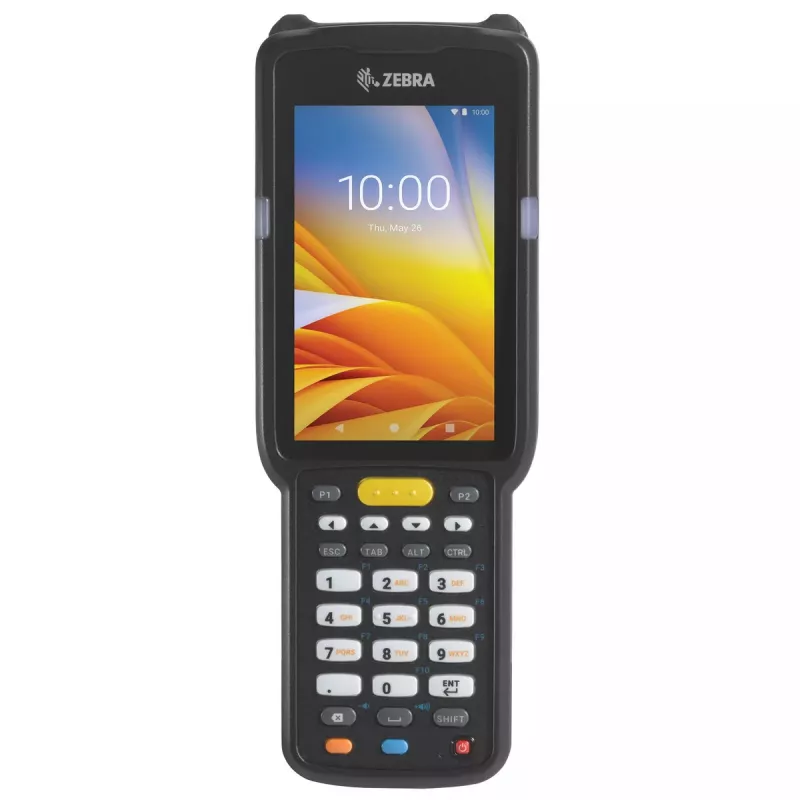

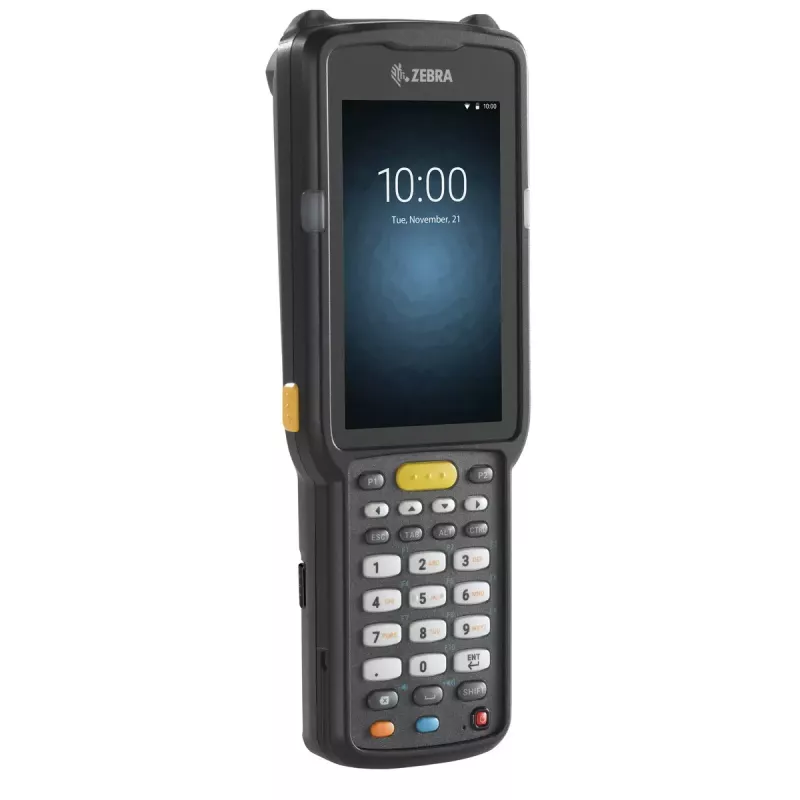

Computer mobile palmare Zebra MC3300x

The Zebra MC3300x handheld mobile computer combines a 4" touchscreen and physical keypad in a lightweight, rugged design built for warehouse, manufacturing and retail environments. Powered by a 2.2 GHz octa-core Snapdragon 660 processor with 4 GB RAM and 32 GB flash (expandable via MicroSD), the MC3300x runs Android and supports 802.11ac Wi‑Fi and Bluetooth 5.0 for fast, reliable connectivity. The device features an extended-range scanner option, Corning Gorilla Glass on the touch panel and scan window, and a 7000 mAh battery that supports up to three shifts.

Advantages

The MC3300x offers improved battery life with a class‑leading 7000 mAh extended capacity battery, reducing the need for frequent battery swaps and simplifying battery management. It delivers faster Wi‑Fi performance and extended range through 2x2 MU‑MIMO and beamforming while conserving device power. Bluetooth 5.0 provides higher peripheral speeds and greater range with lower energy use. Ruggedized specifications—including a 1.8 m (6 ft) drop rating, IP64 dustproof sealing, triple the tumble tolerance and Gorilla Glass protection—increase reliability in demanding workflows. The combination of touchscreen and multiple keypad options (alphanumeric, numeric, functional numeric) supports both legacy keypad applications and touch‑based interfaces.

Suitable for

• Warehouse inventory and order picking
• Manufacturing floor data capture and tracking
• Retail backroom and stockroom operations
• Logistics and distribution center scanning

Key specifications

• Processor: Snapdragon 660 octa‑core, 2.2 GHz
• Memory: 4 GB RAM, 32 GB Flash (expandable via MicroSD)
• Display: 4" touchscreen, 800 x 480 resolution
• Battery: 7000 mAh extended capacity
• Wireless: Wi‑Fi (802.11ac), Bluetooth 5.0
• Durability: Drop rating 1.8 m (6 ft), tumble rating 3,000 drops at 1 m, IP64
• Protection: Corning Gorilla Glass on touch panel and scan window
• Weight: 0.375 kg

How to use

Power on the MC3300x and connect to your Wi‑Fi network using the Android settings menu or your enterprise mobility management solution. Choose the keypad configuration that matches your application (alphanumeric, numeric or functional numeric) and, if required, insert a microSD card to expand storage. Use the touchscreen or physical keys to navigate applications; point the scanner at barcodes for data capture, including extended‑range barcodes on high racks if equipped with that scanner option. Charge the device with the supplied charger or place it in compatible multi‑bay charging accessories between shifts as needed.

Recommendations

To maximize uptime, deploy the 7000 mAh battery as standard, use MU‑MIMO enabled access points for optimal Wi‑Fi performance, and choose the keypad type that matches user workflows. Regularly inspect Gorilla Glass surfaces and follow your site’s cleaning procedures to maintain the scan window and touchscreen clarity.
