Convertitore di rete Barox PC-HPMC101-GE

Convertitore di rete Barox PC-HPMC101-GE
Convertitore di rete Barox PC-HPMC101-GE
397,84 €
PDF
PDF
Stock EsauritoNon disponibile Codice 2573259 Modello PC-HPMC101-GE Garanzia 2 anni

Spedizioni e resi

Fai una domanda – l'assistente AI risponde subito.

Descrizione

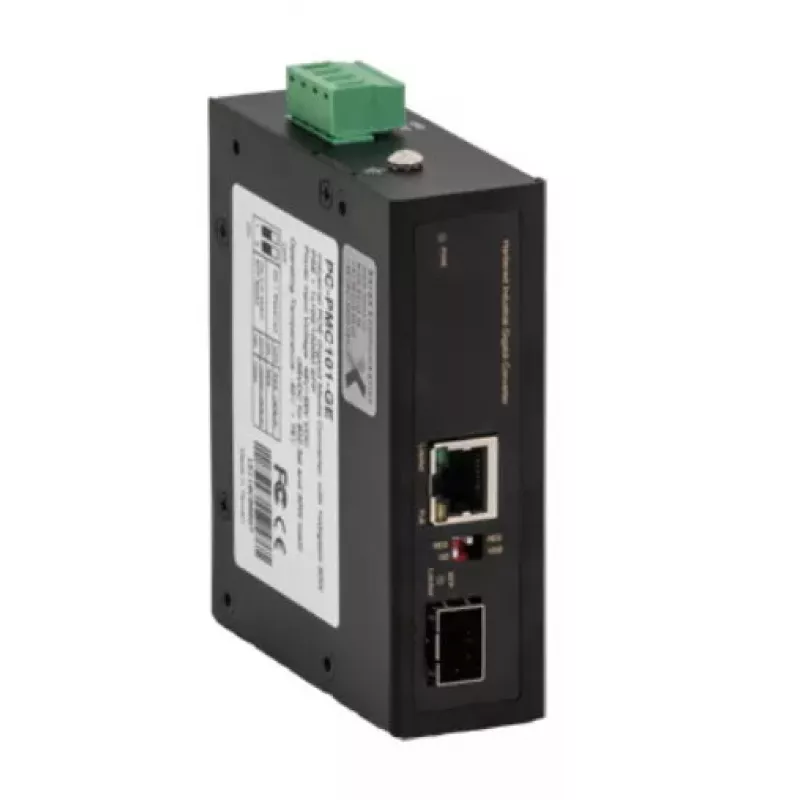

The Barox PC-HPMC101-GE is an industrial-grade network media converter designed for high-data-load applications such as video-over-IP and streaming. Its compact housing, wide operating temperature range and support for Gigabit Ethernet make it suitable for deployments in remote or harsh environments. The unit provides one optical SFP port and one copper RJ-45 port that supports 10/100/1000TX and PoE standards 802.3af/at/bt with up to 60 W. The converter is supplied with a clamp for DIN-rail mounting and a clip for wall mounting.

Advantages

Compact dimensions and low power consumption allow flexible installation in space-constrained sites. Gigabit Ethernet support and an optical SFP port provide reliable high-throughput links for video and other bandwidth-intensive services. Integrated PoE on the copper port supplies up to 60 W to powered devices, reducing the need for separate power cabling. The included DIN-rail clamp and wall-mount clip simplify mounting in industrial racks or on walls.

Suitable for

  • Video over IP and streaming systems
  • Industrial network segments and remote sites
  • PoE-powered devices such as cameras, access points, and controllers
  • Migrating between copper and fiber links

Key specifications

  • Maximum data transfer rate: 1000 Mbit/s (Gigabit Ethernet)
  • Ports: 1 × RJ-45 (10/100/1000TX), 1 × SFP (optical)
  • PoE: 802.3af/at/bt support, up to 60 W on copper port
  • Power input: 48–56 V
  • Power consumption: 4 W
  • Dimensions: 36 × 82 × 104 mm
  • Colour: Black

How to use

Mount the media converter on a DIN rail using the supplied clamp or attach it to a wall using the supplied clip. Insert a compatible SFP module into the optical SFP port and connect the fiber cable, then connect the copper RJ-45 port to the local Ethernet device. Supply the unit with 48–56 VDC power. If using PoE, ensure the powered device is compatible with the supported 802.3af/at/bt classes and that the required power does not exceed 60 W.

Recommendations

For reliable operation in industrial environments, install the converter within its specified operating temperature range, use certified SFP modules and fiber cabling, and verify PoE power requirements of connected devices before commissioning.
Punti salienti
  • Video over IP and streaming systems
  • Industrial network segments and remote sites
  • PoE-powered devices such as cameras, access points, and controllers
  • Migrating between copper and fiber links
  • Maximum data transfer rate: 1000 Mbit/s (Gigabit Ethernet)
  • Ports: 1 × RJ-45 (10/100/1000TX), 1 × SFP (optical)
  • PoE: 802.3af/at/bt support, up to 60 W on copper port
  • Power input: 48–56 V
  • Power consumption: 4 W
  • Dimensions: 36 × 82 × 104 mm
  • Colour: Black

Specifiche

Specifiche
Alimentatore incluso
No
Alimentazione via Ethernet (PoE)
Sì
Altezza
104 mm
Auto MDI/MDI-X
Sì
Certificazione
EN55022/24 EN50155 EN50121-3-2 EN50121-4 EN55011 EN60950-1 EN50155 / EN60068-2-6 EN50155 / EN60068-2-27 EN50155 / EN600-2-32 FCC Class A, CE
Colore del prodotto
Nero
Consumo energetico (max.)
4 W
Indicatori LED
Y
Interfaccia di ingresso del convertitore
100Base-TX, 1000Base-T, 10Base-T
Interno
No
Larghezza
36 mm
Montaggio su guida DIN
Sì
Negoziazione automatica
Sì
Numero di porte Power over Ethernet plus (PoE+)
1
Porte Ethernet LAN (RJ-45)
1
Profondità
82 mm
Sistema duplex
Half, Full
Standard di rete
IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3
Supporto controllo di flusso
Sì
Tecnologia di cablaggio Ethernet in rame
10BASE-T, 1000BASE-T, 100BASE-TX
Tecnologia di connettività
Con filo
Temperatura di esercizio (T-T)
-40 - 75
Tensione di ingresso
48 - 56
Tipo di interfaccia Ethernet
Gigabit Ethernet
Velocità di trasferimento Ethernet LAN
10, 100, 1000
Velocità massima di trasferimento dati
1000 Mbit/s
