CPU Thermal Grizzly AMD Ryzen 7 9800X3D delidded Boxed preparata per dissipatori Direct-Die

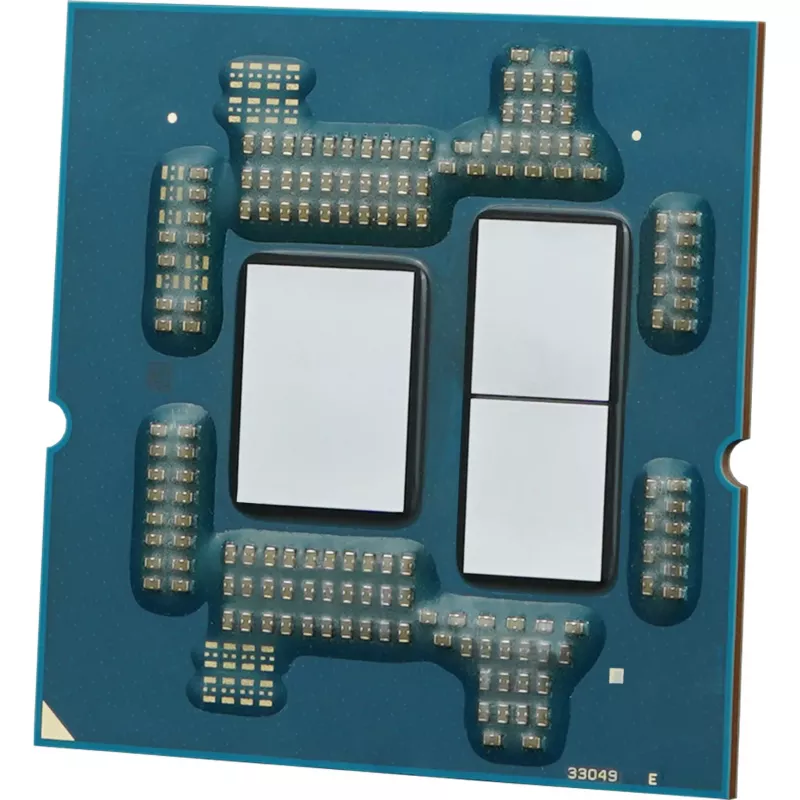

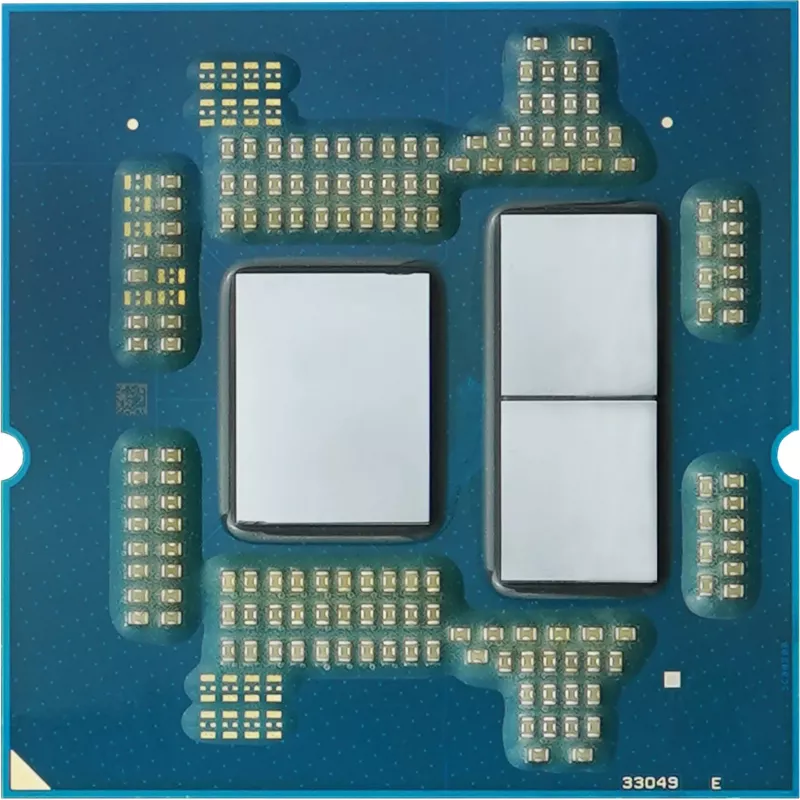

Thermal Grizzly delidded AMD Ryzen 7 9800X3D boxed CPU for direct-die heatsinks is a processor unit prepared for direct‑die cooling applications. The integrated heatspreader (IHS) has been removed to expose the bare silicon die, enabling direct contact between the CPU surface and an aftermarket cooler or liquid cold plate. This configuration improves thermal conductivity and is intended for experienced builders who install direct‑die heatsinks or custom cooling solutions.

Advantages

Direct access to the processor die reduces thermal interface layers and can lower operating temperatures compared with standard IHS-mounted coolers. Removing the heatspreader allows more efficient heat transfer to high-performance air coolers, vapor chambers, or direct‑contact water blocks. This boxed unit from Thermal Grizzly is prepared for integration into advanced cooling loops and extreme performance systems where thermal management is critical.

Suitable for

• Custom liquid cooling loops with direct‑contact cold plates
• Enthusiast overclocking and thermal benchmarking
• Small form factor builds requiring lower package temperatures
• High‑performance workstation and gaming rigs with aftermarket direct‑die coolers

Key specifications

• CPU model: AMD Ryzen 7 9800X3D (delidded for direct‑die cooling)
• Package state: bare die exposed (integrated heatspreader removed)
• Intended use: compatible with direct‑die air coolers, direct‑contact water blocks, and cold plates
• Cooling interface: designed for direct thermal contact to silicon die with proper thermal interface material and mounting hardware
• Application level: for advanced builders and professional cooling installations

How to use

Install this delidded CPU only if your cooling solution supports direct‑die contact and your motherboard socket and mounting mechanism are compatible. Apply a thin, even layer of an appropriate high‑performance thermal interface material on the exposed die surface, then mount the direct‑contact heatsink or cold plate according to the cooler manufacturer's instructions. Ensure correct alignment and even mounting pressure to avoid mechanical stress on the die. Validate BIOS settings and monitor temperatures closely during initial boot and stress testing.

Recommendations

Use only proven thermal compounds compatible with direct‑die applications and follow static, ESD, and mechanical safety precautions. This product is intended for users familiar with advanced PC assembly; improper installation can damage the processor or socket. For best results, pair the delidded CPU with a high‑quality mounting kit and cooling solution designed specifically for direct‑die contact and verify cooling performance under load.
