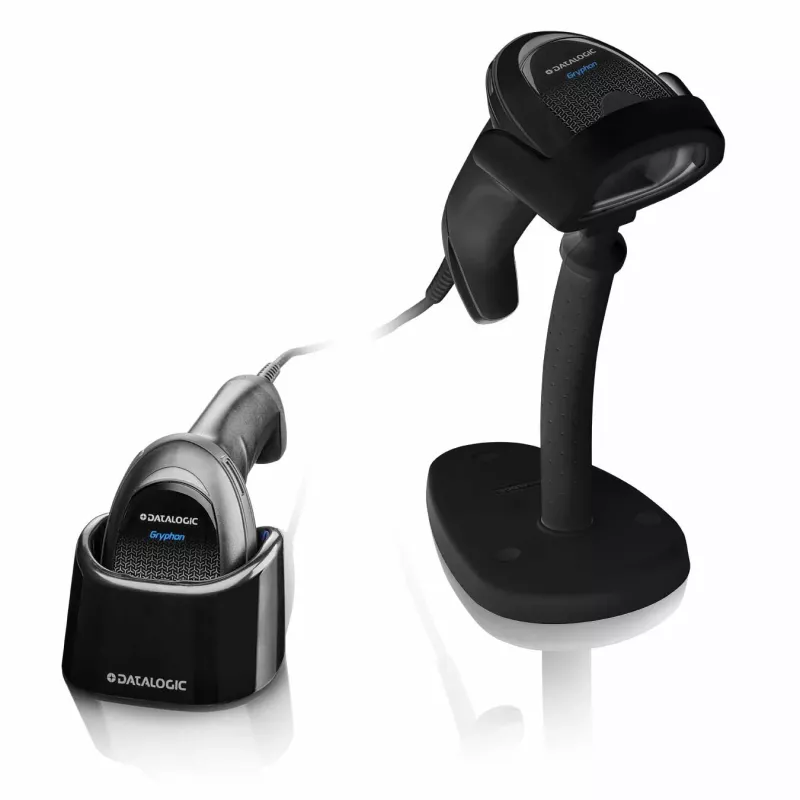

GRYPHON I GD4590 2D MPIXEL IMGR USB/RS-232/WEDGE MULTI-INTF DIGI

The Gryphon I GD4590-BK-DGM sets itself apart from ordinary scanners with its megapixel sensor and extreme motion tolerance, capturing 1D and 2D codes at up to 400 inches per second. This handheld imager is built for high-throughput retail, light industrial, and healthcare environments where speed and accuracy are non-negotiable.

Highlights

• Megapixel 2D area imager (1280 x 800) reads 1D, 2D, postal, and optional Digimarc barcodes.
• Multi-interface connectivity: USB, RS-232, and Keyboard Wedge in one device.
• Datalogic 'Green Spot' good-read confirmation plus audible beeper and LED.
• Withstands 1.8 m drops onto concrete and rated IP52 against dust and moisture.
• 4-dot aimer with center cross for precise targeting even in bright light.

In daily use

The GD4590-BK-DGM excels in fast-paced checkout lines, pharmacy dispensing, and warehouse picking. Its white LED illumination and high motion tolerance let operators scan moving items without pausing. The ergonomic shape reduces fatigue during long shifts, while the multi-interface cable means one SKU covers different POS systems. ESD protection up to 16 kV adds reliability in dry or carpeted environments.

Full specifications

• Scanner type: 2D area imager (handheld)
• Image sensor: Megapixel, 1280 x 800 pixels
• Decoding capability: 1D, 2D, postal, Digimarc (optional)
• Connectivity: USB, RS-232, Keyboard Wedge
• Light source: White LED
• Aiming system: 4-dot aimer with center cross
• Motion tolerance: up to 400 ips (10.2 m/s)
• Field of view: 48° horizontal x 30° vertical
• Minimum print contrast: 25%
• Reading indicators: beeper, Green Spot, good read LED
• Drop resistance: 1.8 m onto concrete
• IP rating: IP52
• Operating temperature: 0°C to 50°C
• Storage temperature: -40°C to 70°C
• Humidity: 5–95% non-condensing
• ESD protection: 16 kV
• Power consumption (operating): 500 mA
• Colour: black

Final note

For businesses needing a rugged, high-speed 2D scanner that works across multiple interfaces, the Gryphon I GD4590-BK-DGM delivers dependable performance in a compact, ergonomic design.
