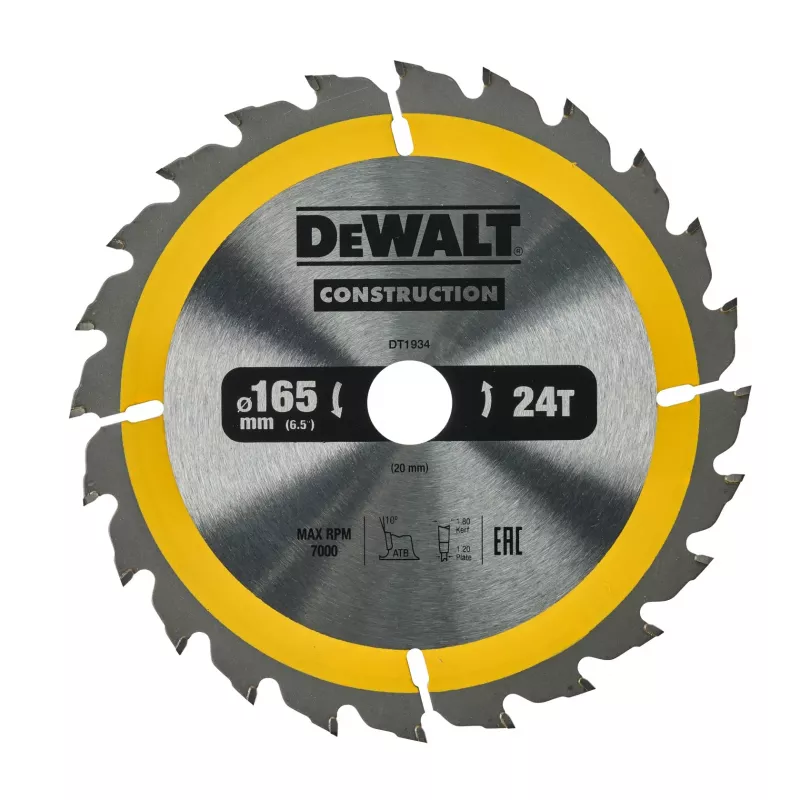

DEWALT DT1934 lama per sega circolare 165x20mm 24T ATB TCT per legno

The DEWALT DT1934 circular saw blade is a high-performance tungsten carbide tipped (TCT) blade designed for handheld circular saws. With a 165 mm diameter, 20 mm bore, and 24 teeth in an ATB (Alternate Top Bevel) configuration, it delivers fast, coarse to medium finish cuts in softwood, hardwood, plywood, and MDF. Ideal for ripping and general wood cutting tasks.

Advantages

Engineered for durability and precision, this blade features a ground and polished finish for reduced friction and longer life. The ATB tooth geometry ensures clean cuts with minimal tear-out, while the Makforce series construction provides reliable performance in demanding applications.

Suitable for

• Softwood and hardwood
• Plywood and MDF
• General wood ripping and cross-cutting
• Handheld circular saws

Key specifications

• Blade Diameter: 165 mm
• Bore Diameter: 20 mm
• Number of Teeth: 24
• Kerf Thickness: 2.2 mm
• Plate Thickness: 1.4 mm
• Tooth Configuration: ATB (Alternate Top Bevel)
• Tooth Material: Tungsten Carbide Tipped (TCT)
• Max Rotational Speed: 9250 RPM
• Hook Angle: 20°
• Blade Series: Makforce
• Application: Wood (General Purpose, Ripping)

Recommendations

For optimal performance, ensure the blade is properly mounted and the saw is set to the correct speed. Always use appropriate safety equipment.
