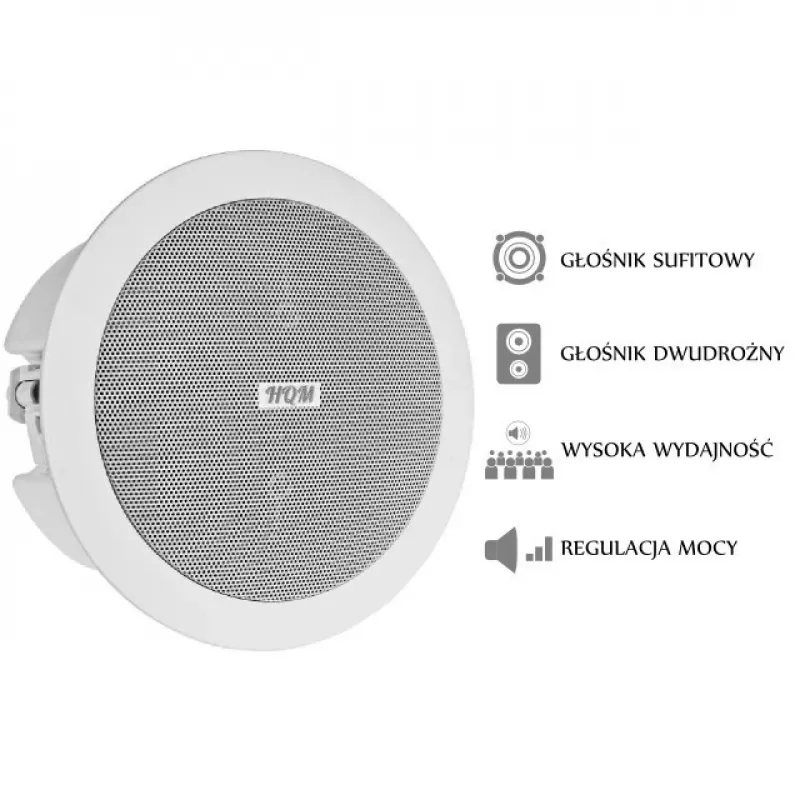

Diffusore da soffitto PA HQM-SOZ1024 10W 100V bianco

The HQM-SOZ1024 is a high-quality ceiling speaker designed for public address systems in commercial environments. With a 10W RMS power rating and 100V constant voltage line, it delivers clear and intelligible audio for offices, retail spaces, and public areas. The flush-mount design with a metal grille ensures a discreet and professional installation.

Advantages

Easy installation with spring terminals and standard cutout size. Durable ABS plastic housing and metal grille provide long-lasting performance. The 120° dispersion angle ensures even coverage, while the 90 dB sensitivity offers efficient sound output.

Suitable for

• Commercial offices
• Retail stores
• Public spaces (airports, hospitals, schools)
• Background music and paging systems

Key specifications

• Speaker Type: Ceiling Speaker
• Audio System: Public Address (PA)
• Power Rating (RMS): 10 W
• Constant Voltage: 100 V
• Transformer Taps: 10W, 5W, 2.5W
• Frequency Response: 80 Hz - 18 kHz
• Sensitivity: 90 dB (1W/1m)
• Driver Size: 6.5 inches (16.5 cm)
• Driver Type: Full-range
• Mounting: Flush Mount
• Cutout Diameter: 180 mm
• Overall Diameter: 200 mm
• Mounting Depth: 70 mm
• Housing Material: ABS Plastic
• Grille Material: Metal
• Color: White
• Connector: Spring Terminals
• Dispersion Angle: 120°
• Number of Speakers: 1

Recommendations

For optimal performance, pair with a compatible 100V PA amplifier. Ensure proper cutout dimensions before installation. Suitable for use in dry indoor environments only.
