Diffusore Edifier S360DB 150 W

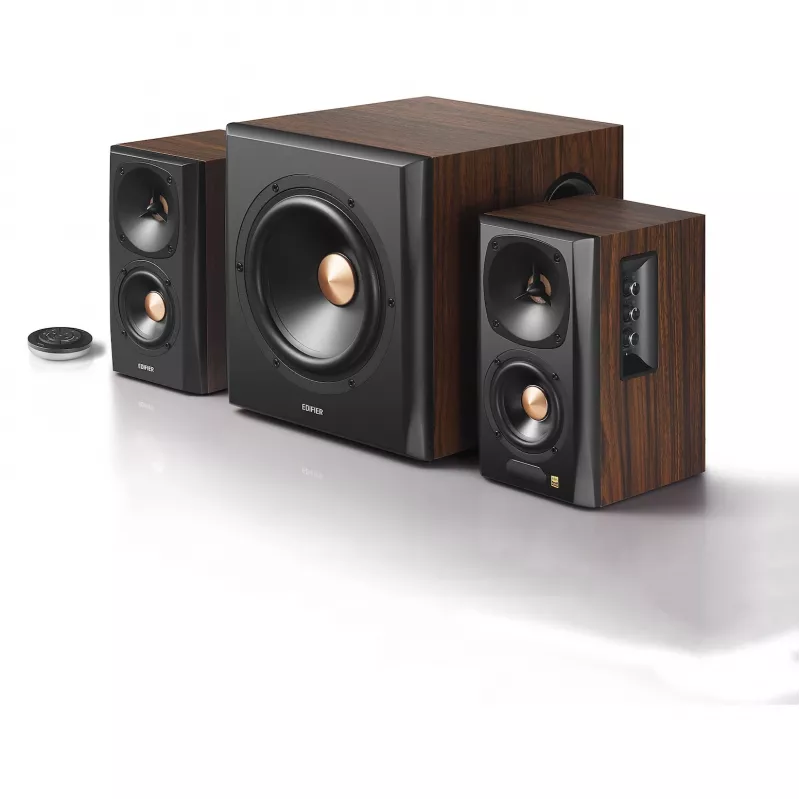

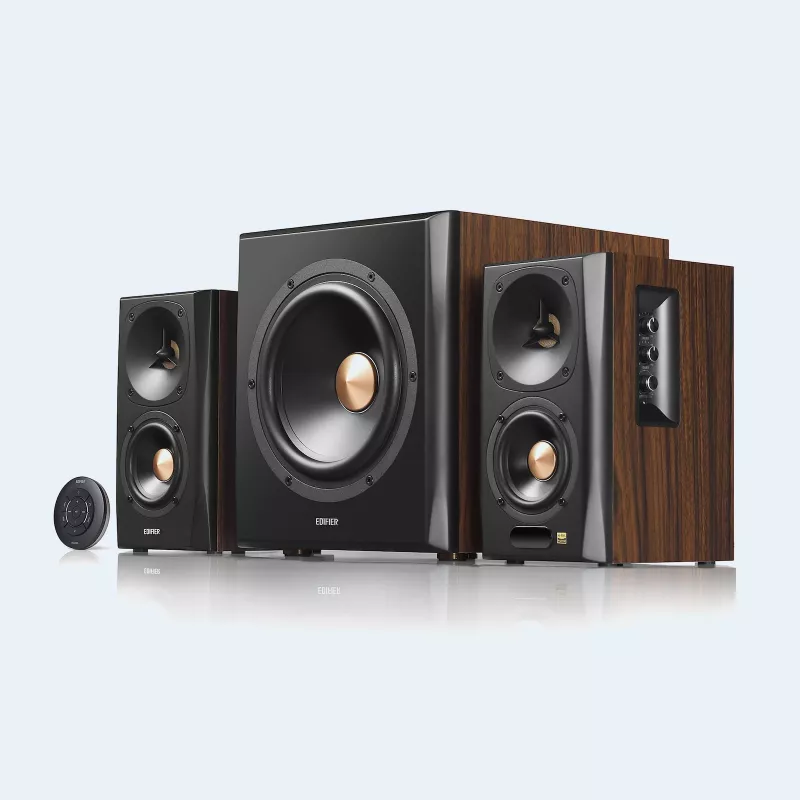

The Edifier S360DB 150 W speaker set is a 2.1-channel audio system designed for clear full-range sound with flexible connectivity. The set combines a wooden cabinet over a dense particle board and aluminum driver diffusers for reduced cabinet resonance and a modern appearance. Key elements include a planar tweeter developed with Fostex, 4-inch aluminum mid-range drivers engineered with KLIPPEL, and a wireless 8-inch subwoofer with a bass reflex port for controlled low-frequency output. The system supports multiple inputs including two analog RCA, Hi-Res USB, optical and coaxial digital inputs, and offers wired and wireless connectivity with a total RMS power of 150 W.

Advantages

The S360DB delivers Hi-Res capable audio with minimized cabinet resonance thanks to its wooden vinyl finish over dense particle board and aluminum diffusers. The planar tweeter—co-developed with Fostex—provides improved high-frequency detail while the KLIPPEL-designed 4-inch aluminum midrange drivers ensure clear midband reproduction. A dedicated wireless 8-inch subwoofer with a bass reflex port produces controlled, vibration-free bass. Integrated DSP and a Texas Instruments TAS5754M digital amplifier optimize electro-acoustic performance for clean low-bass and stable output across inputs.

Suitable for

• Desktop PC audio for gaming, music and movies
• Home office setups requiring clear speech and media playback
• Small living rooms and multimedia playback where a compact 2.1 system is preferred

Key specifications

• Brand: Edifier
• Model: S360DB (MPN: S360DB)
• Channels: 2.1
• RMS rated power: 150 W
• Connectivity: Wired & Wireless; inputs: 2× RCA, 1× Hi-Res USB, optical, coaxial

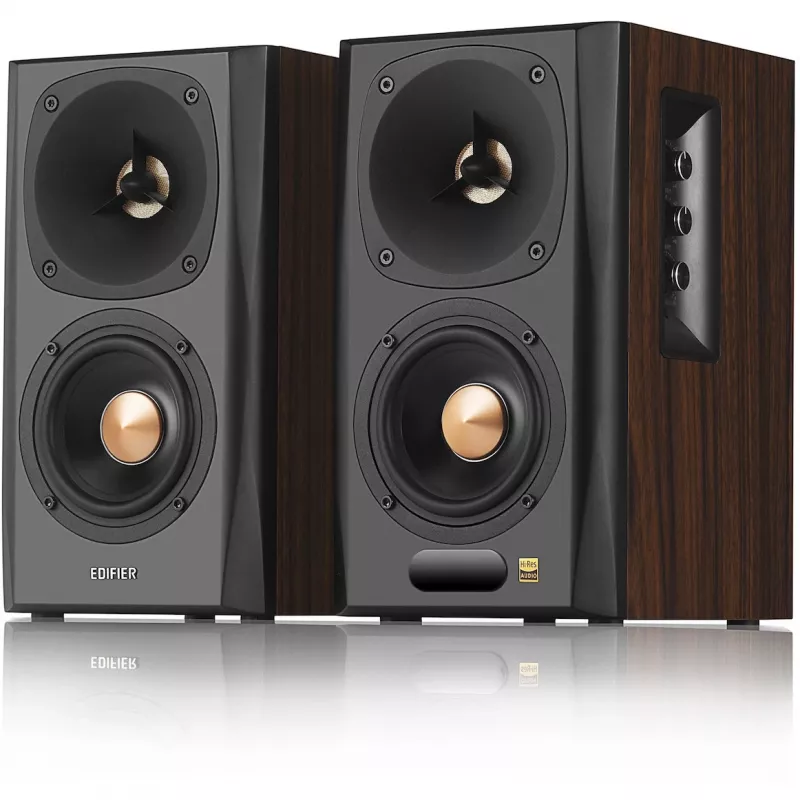

• Drivers: Planar tweeter (Fostex collaboration), 4" aluminum midrange (KLIPPEL)

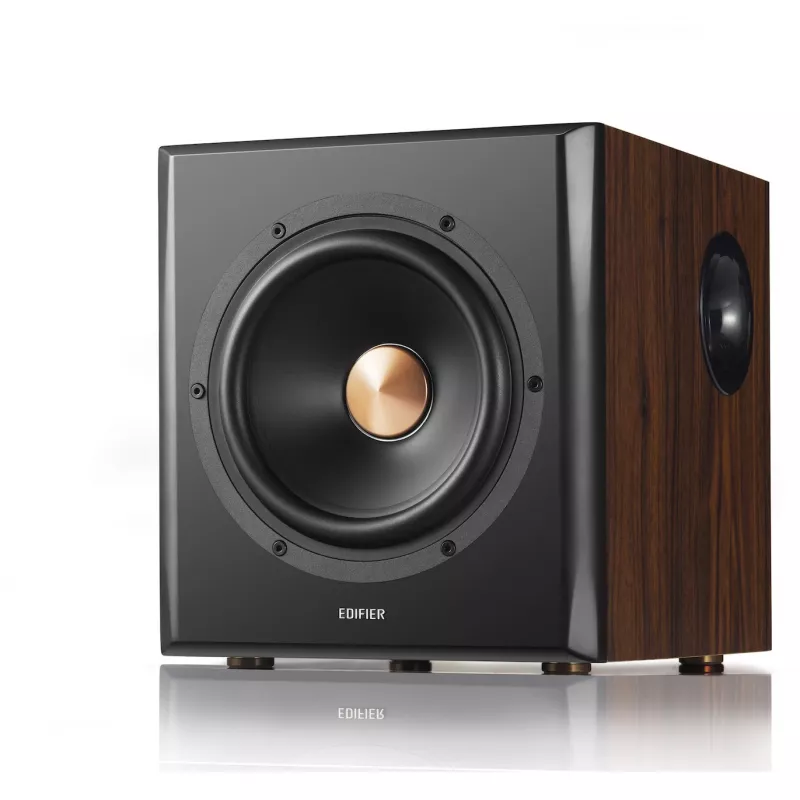

• Subwoofer: Wireless 8" with bass reflex port
• Processor / Amplifier: DSP with Texas Instruments TAS5754M digital amplifier
• Colour: Black, wood colour

How to use

Place the satellite speakers on the desk or stands and position the wireless subwoofer on the floor for best bass response, keeping the subwoofer’s bass reflex port unobstructed. Connect source devices using RCA, Hi-Res USB, optical or coaxial inputs as available, or pair via wireless connection if supported. Adjust volume and input selection using the system controls or connected device. Allow a short break-in period at moderate volume for the drivers to settle before setting preferred equalization or DSP modes.

Recommendations

For balanced sound, position the satellites at ear height and the subwoofer near a wall or corner to reinforce low frequencies; avoid covering the subwoofer port. Use Hi-Res USB or digital inputs for the best audio fidelity and enable DSP settings appropriate to music or movies for optimal performance.
