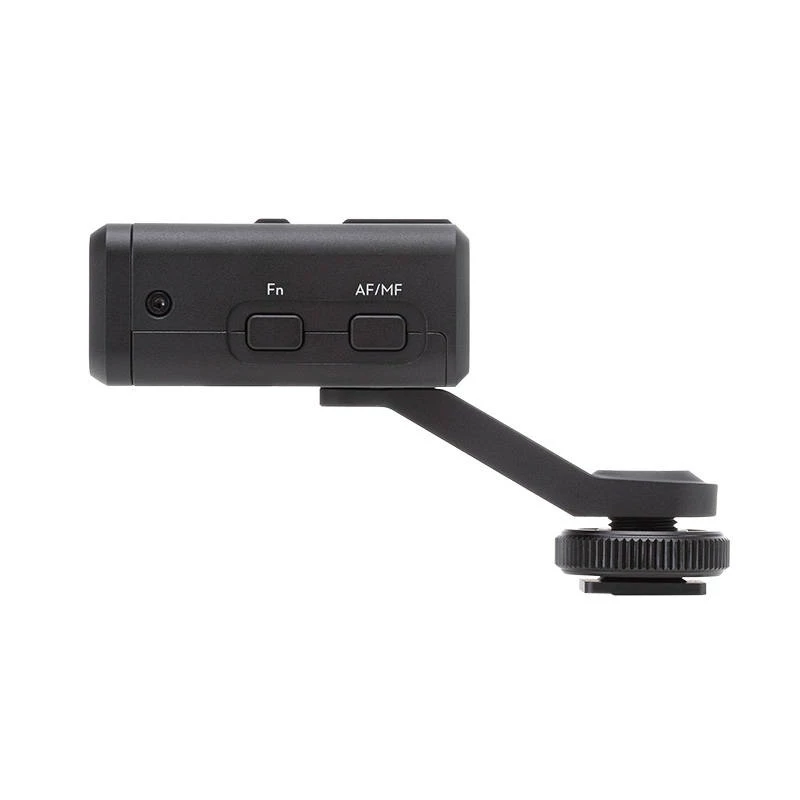

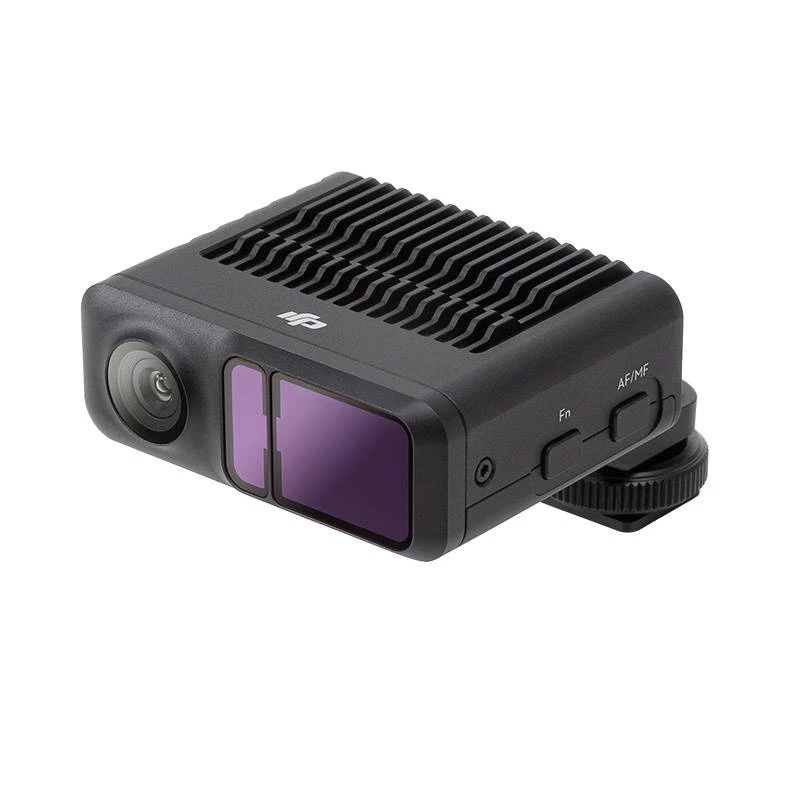

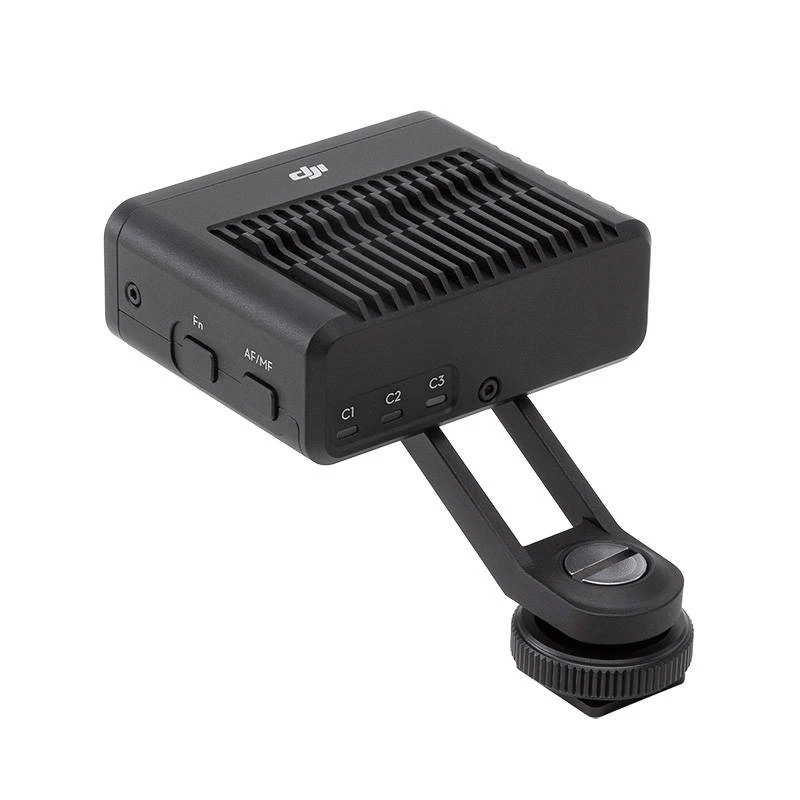

DJI LiDAR Range Finder (RS 3 Pro)

The DJI LiDAR Range Finder (RS 3 Pro) is a high-precision LiDAR module designed for professional filmmakers and photographers. It provides real-time distance measurement and autofocus capabilities, enhancing the accuracy and efficiency of your shooting workflow. Compatible with DJI RS 3 Pro and other gimbals, this range finder delivers reliable performance in various lighting conditions.

Advantages

With a detection range of 0.5 to 14 meters and an accuracy of ±1%, the DJI LiDAR Range Finder ensures precise focusing even in challenging environments. It features 43,200 LiDAR points and a 30 Hz refresh rate, providing smooth and responsive autofocus. The compact and lightweight design makes it easy to mount on your gimbal without adding significant weight.

Suitable for

• Professional videographers and filmmakers using DJI RS 3 Pro gimbal
• Photographers requiring accurate autofocus in dynamic scenes
• Content creators who need reliable distance measurement for manual focus assist

Key specifications

• Sensor Type: LiDAR
• Detection Range: 0.5-14 m (100% reflectivity), 0.5-7 m (10% reflectivity)
• LiDAR Points: 43,200
• Refresh Rate: 30 Hz
• Field of View: 30° (H) x 23° (V)
• Accuracy: ±1%
• Equivalent Focal Length: 30 mm
• Compatibility: DJI RS 3 Pro, RS 3, RS 2, RSC 2
• Mounting Interface: Cold Shoe, 1/4">-20 Thread
• Connector Type: USB-C
• Power Consumption: 6.5 W
• Operating Temperature: -20° to 45° C
• Material: Aluminum Alloy, Plastic
• Color: Black

Recommendations

For optimal performance, use the DJI LiDAR Range Finder with the DJI RS 3 Pro gimbal. Ensure the lens is compatible with autofocus for full functionality. The range finder is ideal for fast-paced shooting scenarios where precise focus is critical.
