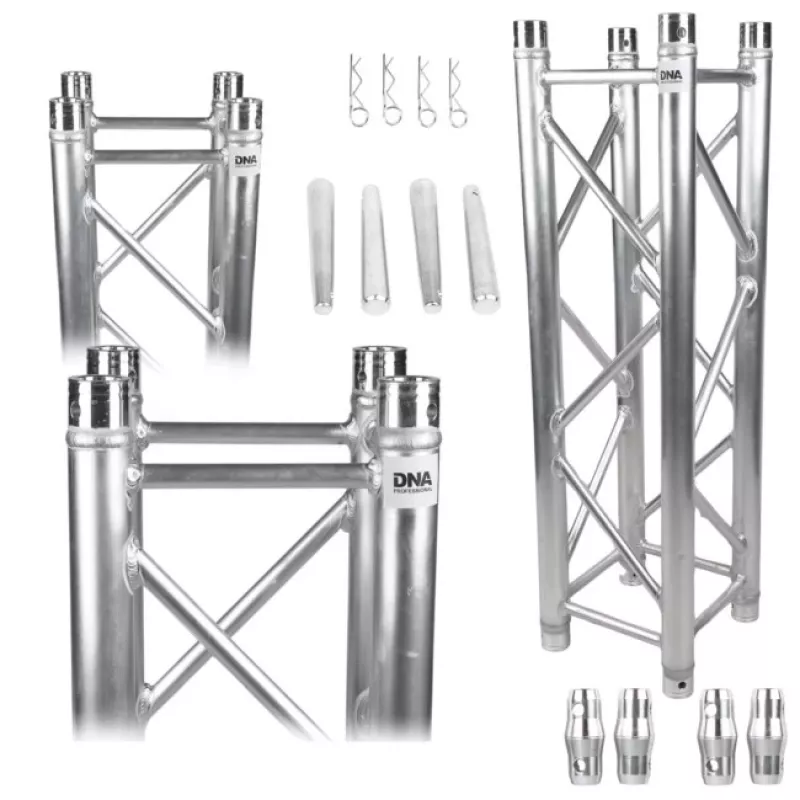

DNA PROFESSIONAL DNA T4 200 Stage Truss Traverse for Lighting

The DNA PROFESSIONAL DNA T4 200 is a high-quality 4-point stage truss traverse designed for professional lighting, sound, and event applications. Made from durable aluminium alloy EN AW-6082 T6, this 2.0-meter truss section offers excellent strength-to-weight ratio and corrosion resistance. The T4 200 features a 290 x 290 mm cross-section with 50 mm main chords and 20 mm bracing tubes, all precision TIG welded for maximum reliability. It uses a conical connector system with pins and safety clips for quick and secure assembly, and is fully compatible with other DNA T4 series trusses and standard 290/290 mm 4-point systems. TÜV certified for safety, it is ideal for medium to heavy duty loads in stage lighting, LED screens, exhibition stands, and event structures.

Advantages

Robust aluminium construction ensures long-lasting performance and high load capacity. The conical connector system allows for fast, tool-free assembly, saving time during setup and teardown. Lightweight yet strong, the truss is easy to transport and handle. Natural aluminium finish provides a professional look and requires minimal maintenance.

Suitable for

• Stage lighting rigs for concerts, theatres, and events
• Sound system suspension
• LED screen and video wall support
• Exhibition and trade show stands
• Architectural and temporary structures

Key specifications

• Type: 4-Point (Quad) Truss
• Material: Aluminium Alloy EN AW-6082 T6
• Cross-section: 290 x 290 mm
• Length: 200 cm (2.0 m)
• Main chord tube diameter: 50 mm, wall thickness: 2 mm
• Bracing tube diameter: 20 mm, wall thickness: 2 mm
• Connection: Conical connector with pins and safety clips
• Finish: Natural aluminium
• Certification: TÜV certified

Recommendations

For complete system design, always refer to the load tables provided by the manufacturer. Ensure all connections are secured with safety clips before use. Compatible with DNA T4 series and standard 290/290 mm 4-point truss systems.
