Docking station Lindy DST-Mini Duo mini docking station per laptop USB-C 2x 4K HDMI

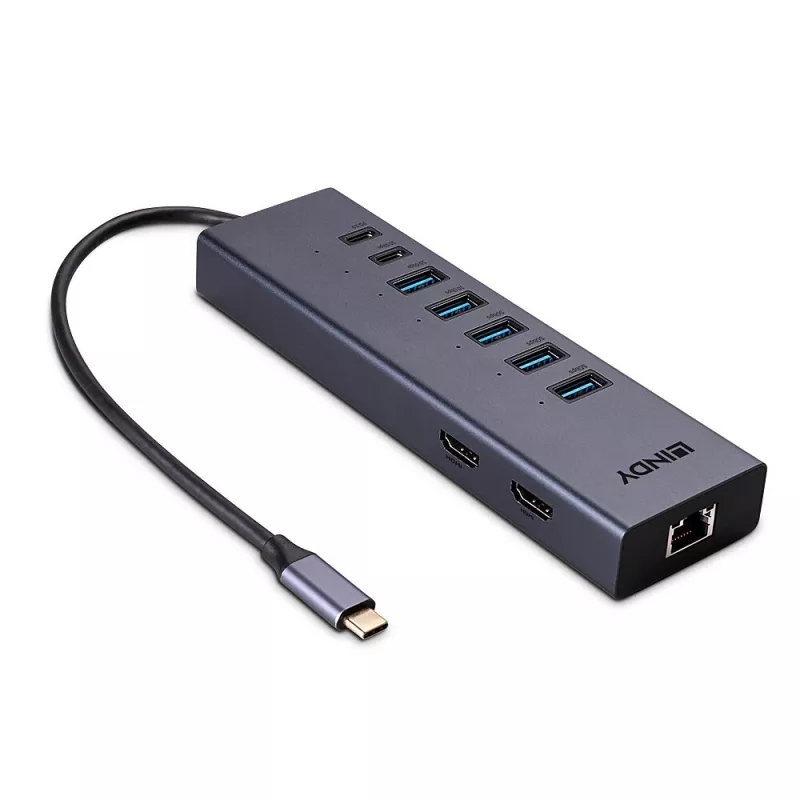

The DST-Mini Duo is a compact docking station that connects laptops, tablets or smartphones to multiple interfaces, including support for two HDMI displays. It uses a single USB 3.2 Type-C cable to provide video output, Gigabit Ethernet and multiple USB ports, and supports Power Delivery 3.0 up to 100W for charging compatible laptops.

Advantages

The docking station supports dual-display setups with up to two 4K displays when the host device and connections allow. It offers high-speed data transfer via USB 3.2 Gen 2 Type-C and Type-A ports (10 Gbps) plus additional 5 Gbps USB Type-A ports. Video capabilities include DisplayPort Alternate Mode over USB-C for up to 8K at 7680x4320 30Hz and 4K at 120Hz where supported. The unit also adds wired network connectivity through Gigabit Ethernet.

Key specifications

• Interface to host: USB 3.2 Type-C (single cable)
• Video outputs: 2 × HDMI (supports up to two 4K displays, DisplayPort Alt Mode via USB-C)
• Maximum video resolutions: up to 8K (7680×4320 at 30Hz) and 4K at 120Hz where supported
• USB ports: three USB 3.2 Gen 2 Type-C/A ports (10 Gbps) and three USB Type-A ports (5 Gbps)
• Ethernet: Gigabit Ethernet
• Power Delivery: PD 3.0 up to 100W (power adapter not included)
• Note: Apple computers do not support MST

How to use

Connect the DST-Mini Duo to your laptop, tablet or smartphone using the included USB-C cable or an equivalent USB 3.2 Type-C cable. Attach HDMI displays to the dock’s HDMI ports and connect peripherals to the USB ports. For wired network access, plug an Ethernet cable into the Gigabit Ethernet port. If you need to charge the host device, connect a compatible Power Delivery adapter (up to 100W) to the dock or use the laptop’s own power adapter. Verify your host device’s video output capabilities and MST support for dual-display operation; some devices (for example, Apple computers) do not support MST.

Recommendations

Use a certified USB 3.2 Type-C cable and a power adapter that supports PD 3.0 up to 100W for reliable performance. Check the graphics output specifications of your laptop or mobile device to confirm supported resolutions and multi-monitor modes.
