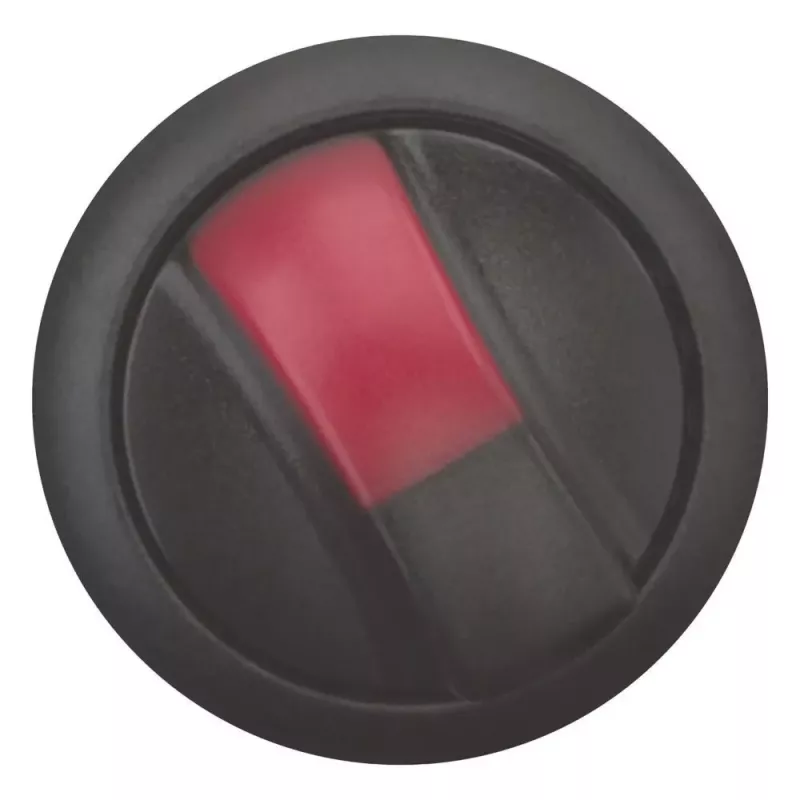

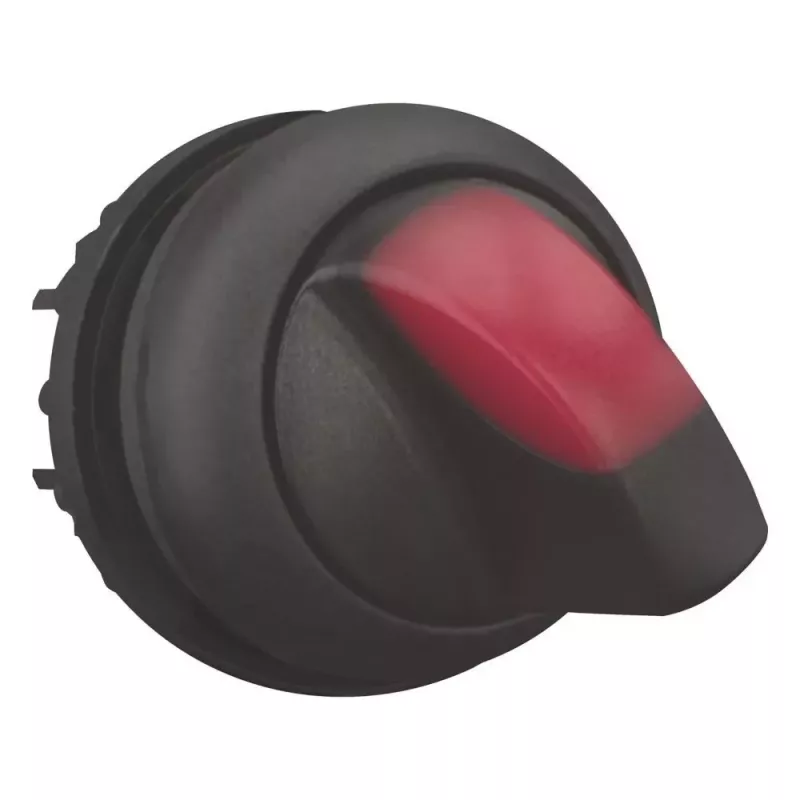

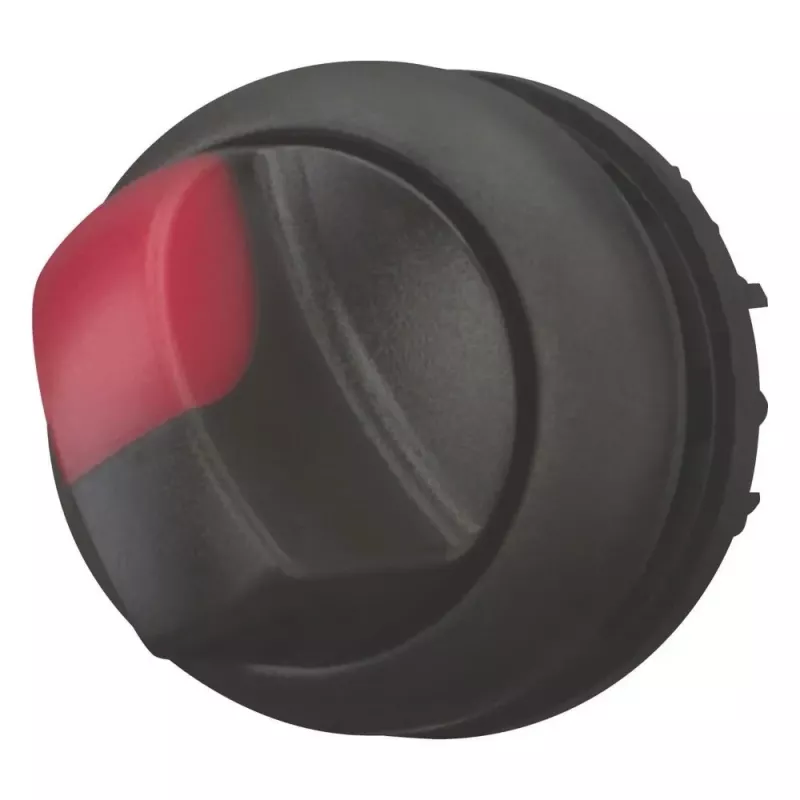

Eaton M22S-WLKV-R azionamento per selettore, 2 posizioni a scatto, manopola nera, anello frontale in plastica 284399

Industrial control panels often need a robust, easy-to-operate selector switch that can withstand harsh environments while providing clear, maintained position indication. The Eaton M22S-WLKV-R actuator solves this with a latching 2-position knob design and a durable plastic front ring, built for reliable switching in demanding applications.

Who is it for

Panel builders, machine OEMs, and maintenance technicians who require a dependable selector switch actuator for control circuits, motor starters, or mode selection in industrial equipment.

Main features

• Selector switch actuator with knob style, black color
• 2-position latching (maintained) operation with 90° switching angle
• Plastic front ring for secure mounting in 22.5 mm panel cutouts
• Non-illuminated design for straightforward function indication
• Front protection degree IP66, IP67, IP69K for washdown and outdoor use
• Operating temperature range from -25°C to +70°C
• Mechanical life exceeding 1,000,000 operations
• Compliant with IEC/EN 60947-5-1 standards

Specifications

• Brand: Eaton
• Model: M22S-WLKV-R
• Product Type: Selector Switch Actuator
• Number of Positions: 2
• Operation Type: Latching (Maintained)
• Switching Angle: 90°
• Actuator Color: Black
• Actuator Style: Knob
• Front Ring Material: Plastic
• Mounting Diameter: 22.5 mm
• Illumination: Non-illuminated
• Protection Degree (Front): IP66 / IP67 / IP69K
• Operating Temperature Range: -25 to +70 °C
• Standards Compliance: IEC/EN 60947-5-1
• Mechanical Life: > 1,000,000 operations
• RoHS Status: Compliant
• Quantity per Package: 1 Piece

Tips

Pair with Eaton M22 contact blocks and LED elements to build a complete control station. The IP69K front rating makes it suitable for high-pressure washdown areas.
