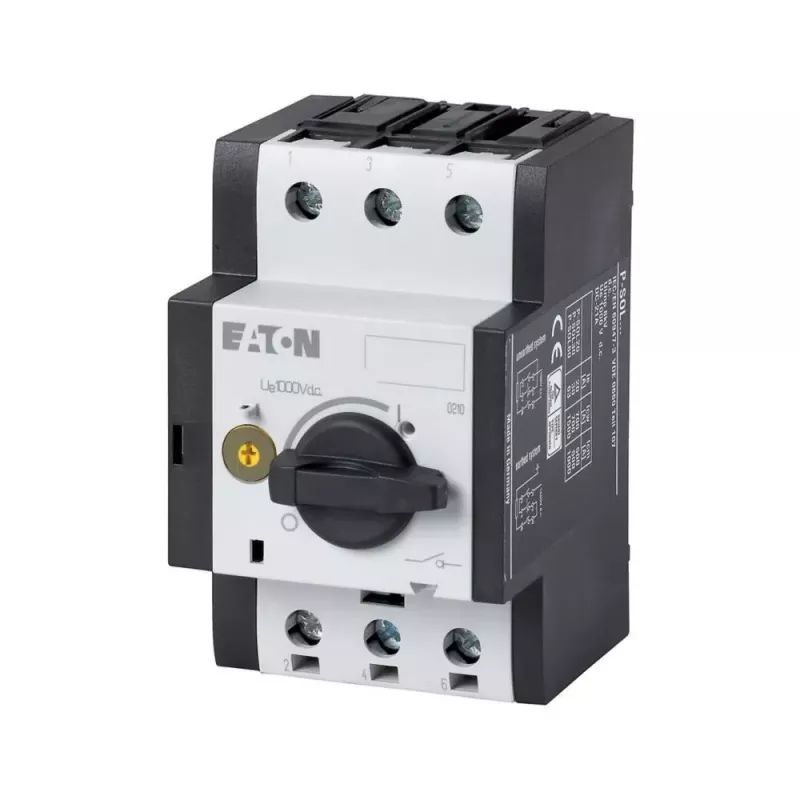

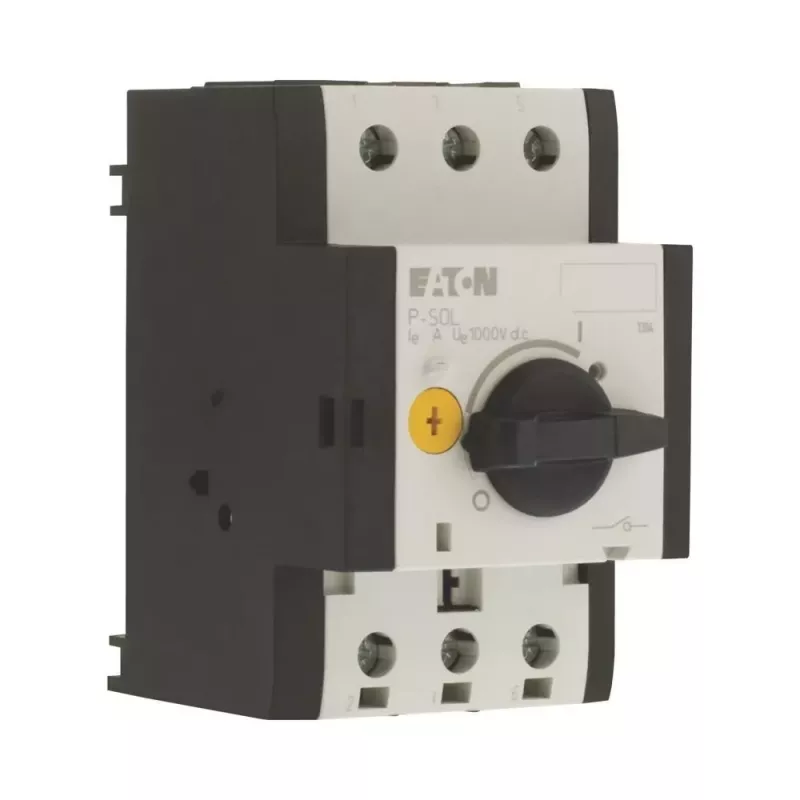

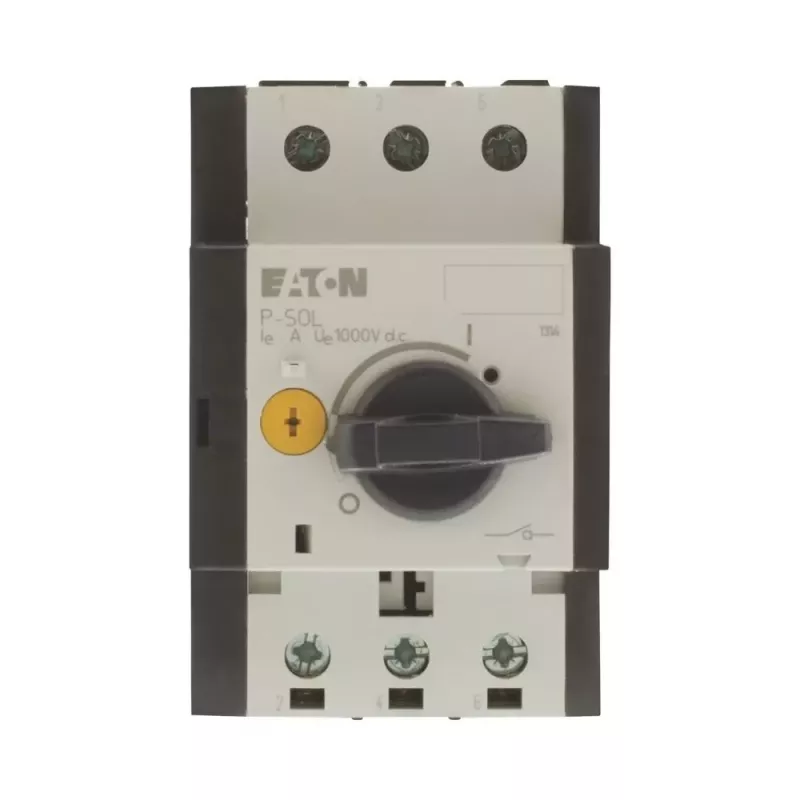

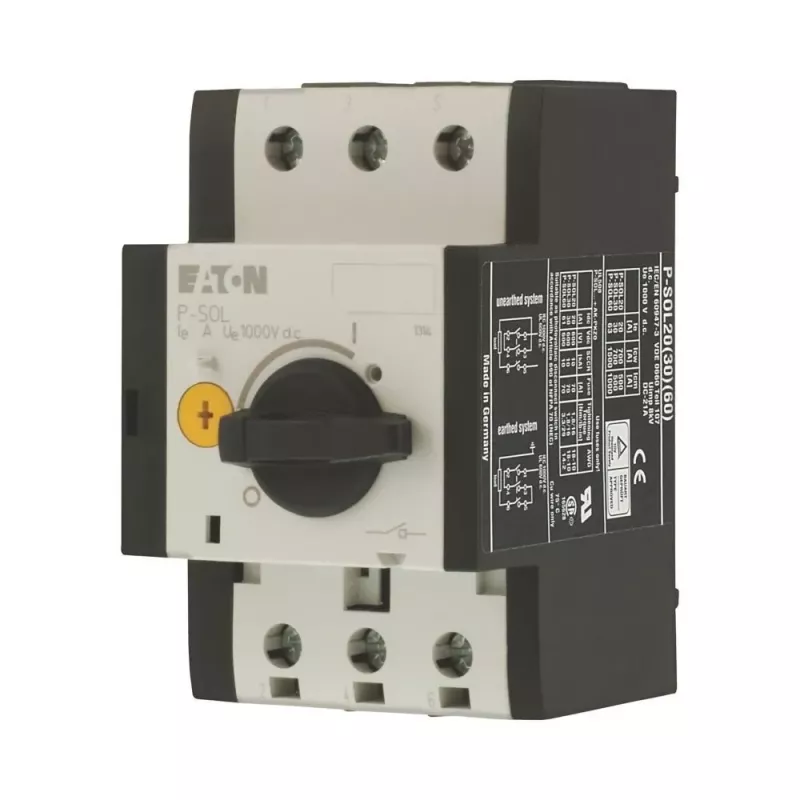

Eaton P-SOL30 interruttore principale rotativo a 2 poli, 32 A, nero/bianco 120935

Rotary main switch with 2-pole configuration and 32 A rated operational current, suitable for industrial control and maintenance applications. The front-mounted design with black rotary handle and white front plate provides clear ON/OFF switching.

Advantages

Robust construction with screw terminals and IP65 front protection ensures reliable operation in demanding environments. The 90° switching angle and 2-position operation allow quick and safe circuit isolation.

Suitable for

• Industrial machinery and control panels
• Maintenance and repair switching
• Motor and load isolation up to 11 kW (AC-23A, 400V)

Key specifications

• Switch type: Main switch / Maintenance switch
• Number of poles: 2P
• Rated operational current: 32 A (AC-21A, 400V), 25 A (AC-23A, 400V)
• Rated insulation voltage: 690 V
• Degree of protection: IP65 front, IP20 terminals
• Mounting: Front mounting (central)
• Switching angle: 90°
• Connection: Screw terminals

Recommendations

Ideal for applications requiring a compact and reliable main switch with clear visual status indication. Verify load characteristics and ambient temperature range (-25 to +50 °C) before installation.
