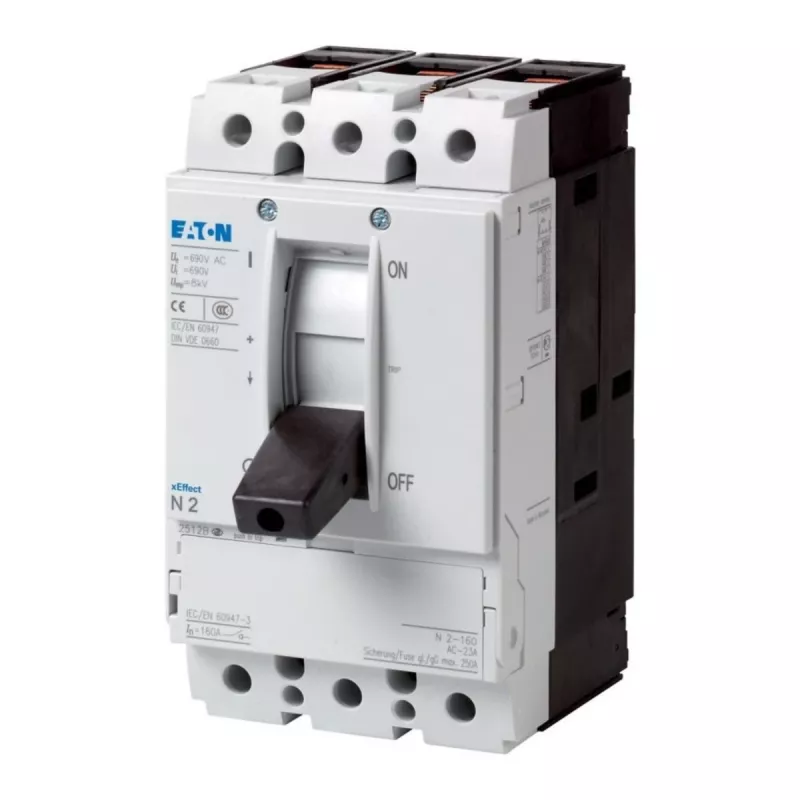

Eaton PN2-200 sezionatore di carico 3 poli 200A 266006

In industrial and commercial electrical installations, a reliable means of isolating circuits and disconnecting power is essential for maintenance and safety. The Eaton PN2-200 load break switch provides a robust solution for switching and isolating three-phase circuits up to 200 A.

Who is it for

This switch is intended for electricians, panel builders, and maintenance personnel who need a dependable main switch, maintenance switch, or emergency stop switch in low-voltage power distribution systems.

Main features

• 3-pole switching for three-phase systems
• Rated operational current of 200 A (AC-21A at 690V, AC-23A at 400V)
• High insulation voltage of 1000 V
• Base or front mounting for flexible installation
• Screw terminals for secure connections
• Complies with IEC/EN 60947-3

Specifications

• Number of poles: 3
• Rated operational current (AC-21A, 690V): 200 A
• Rated operational current (AC-23A, 400V): 200 A
• Rated operational current (AC-23A, 690V): 160 A
• Rated operational power (AC-23A, 400V): 90 kW
• Rated operational power (AC-23A, 690V): 110 kW
• Rated insulation voltage (Ui): 1000 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Rated short-time withstand current (Icw, 1s): 4 kA
• Rated short-circuit making capacity (Icm): 10 kA
• Degree of protection (terminals): IP00
• Mounting type: base mounting / front mounting
• Connection type: screw terminals
• Switching angle: 90 degrees
• Standards compliance: IEC/EN 60947-3
• Auxiliary contacts: none (base unit)
• Product series: PN2

Tips

Ensure the switch is installed by qualified personnel and that the circuit is de-energized before installation or maintenance. Select appropriate cable sizes based on the rated current and local regulations.
