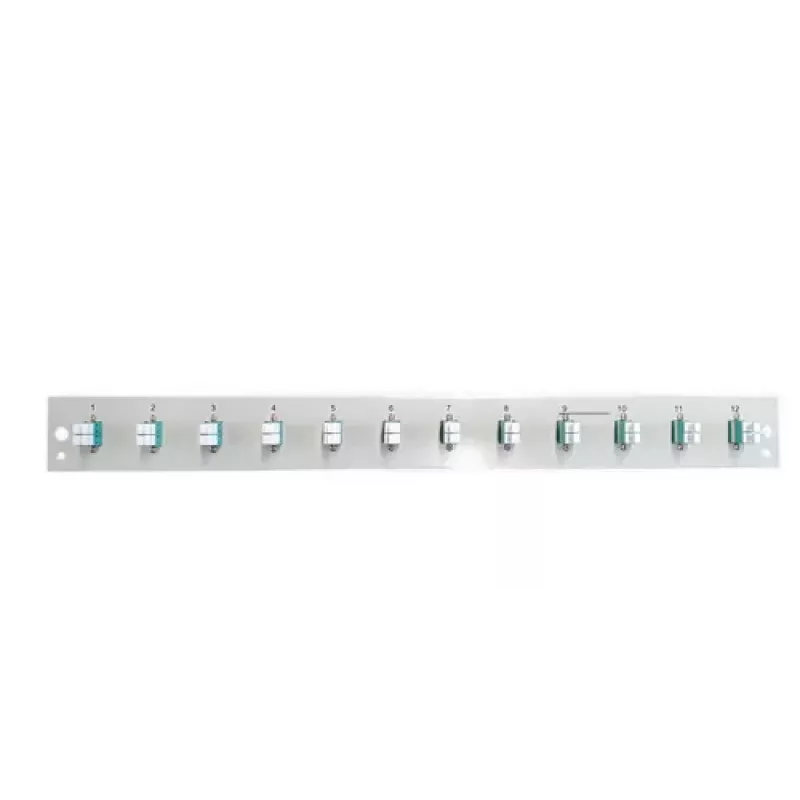

EFB Electronics SB-FP-12SC-S-OS2 pannello frontale preassemblato con 12 connettori femmina LC duplex OS2, grigio

The EFB Electronics SB-FP-12SC-S-OS2 is a high-quality loaded front panel designed for efficient fiber optic patching in data centers, LAN, telecommunications, and FTTx applications. This panel comes pre-populated with 12 LC duplex adapters, providing 24 fiber connections in a compact 1U form factor. Manufactured by EFB Elektronik, it ensures reliable performance and easy integration into standard patch panel cutouts.

Advantages

Pre-loaded with 12 LC duplex adapters saves installation time and ensures consistent quality. The zirconia ceramic sleeves provide low insertion loss (≤0.2 dB) and high return loss (≥50 dB), guaranteeing excellent signal integrity. The powder-coated steel front panel offers durability and a professional grey finish that blends seamlessly with network equipment.

Suitable for

• Data center patching and cross-connects
• Local area network (LAN) fiber distribution
• Telecommunications central offices
• FTTx (Fiber to the x) deployments

Key specifications

• Product Type: Fiber Optic Adapter Plate / Front Panel
• Connector Type: LC Duplex
• Number of Ports: 12 (24 fibers)
• Fiber Mode: Single-mode (OS2)
• Color: Grey
• Adapter Sleeve Material: Zirconia Ceramic
• Front Panel Material: Powder-coated Steel
• Mounting Compatibility: Standard Patch Panel Cutout
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 50 dB
• Mating Durability: > 500 cycles
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OS2 single-mode patch cables and ensure proper cleaning of all connectors before mating. This panel is ideal for high-density fiber environments where reliability and low loss are critical.
