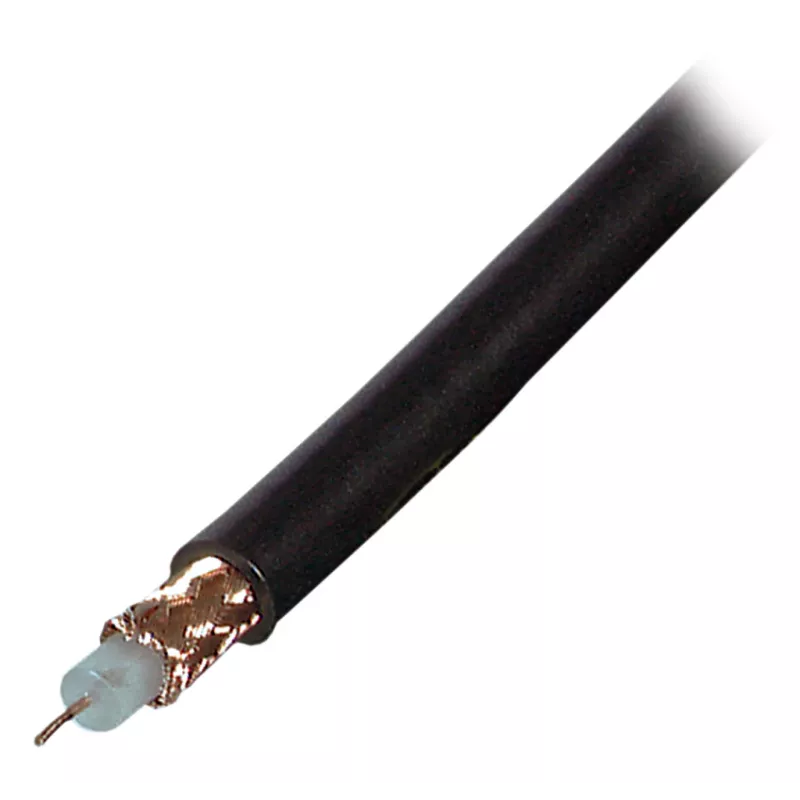

EFB Elektronik Cavo in bobina 100 m coassiale RG-59 nero

The EFB Elektronik Bulk Cable 100 m Coax RG-59 is a high-quality coaxial cable designed for professional video surveillance, CCTV, and antenna systems. This bulk cable offers excellent signal transmission with double shielding and a 75 Ohm impedance, making it ideal for long-distance installations.

Advantages

This RG-59 cable features a copper-clad steel conductor and foamed polyethylene dielectric for reliable performance. The double shielding (aluminium foil + aluminium braid) with 90% braid coverage ensures minimal interference and signal loss. With a length of 100 meters, it provides flexibility for various installation needs.

Suitable for

• CCTV and video surveillance systems
• Antenna and RF signal distribution
• Broadband and satellite installations
• Analog video transmission

Key specifications

• Cable type: RG-59 Coaxial
• Impedance: 75 Ohm
• Length: 100 m
• Colour: Black
• Conductor material: Copper Clad Steel (CCS)
• Conductor diameter: 0.58 mm
• Dielectric material: Foamed Polyethylene (FPE)
• Dielectric diameter: 3.7 mm
• Shielding: Double (Aluminium Foil + Aluminium Braid)
• Braid coverage: 90%
• Jacket material: PVC
• Outer diameter: 6.15 mm
• Attenuation @ 100 MHz: 10.5 dB/100m
• Attenuation @ 400 MHz: 21.0 dB/100m
• Attenuation @ 1000 MHz: 33.0 dB/100m
• Velocity of propagation: 66%
• Capacitance: 67 pF/m
• Operating temperature: -20°C to +70°C
• RoHS compliant

Recommendations

For optimal performance, use with BNC connectors and ensure proper termination. Suitable for indoor and outdoor installations when protected from direct exposure.
