EFB Elektronik INFRALAN U-DQ(ZN)BH 48E 9/125µm G657A LSZH nero CPR Eca

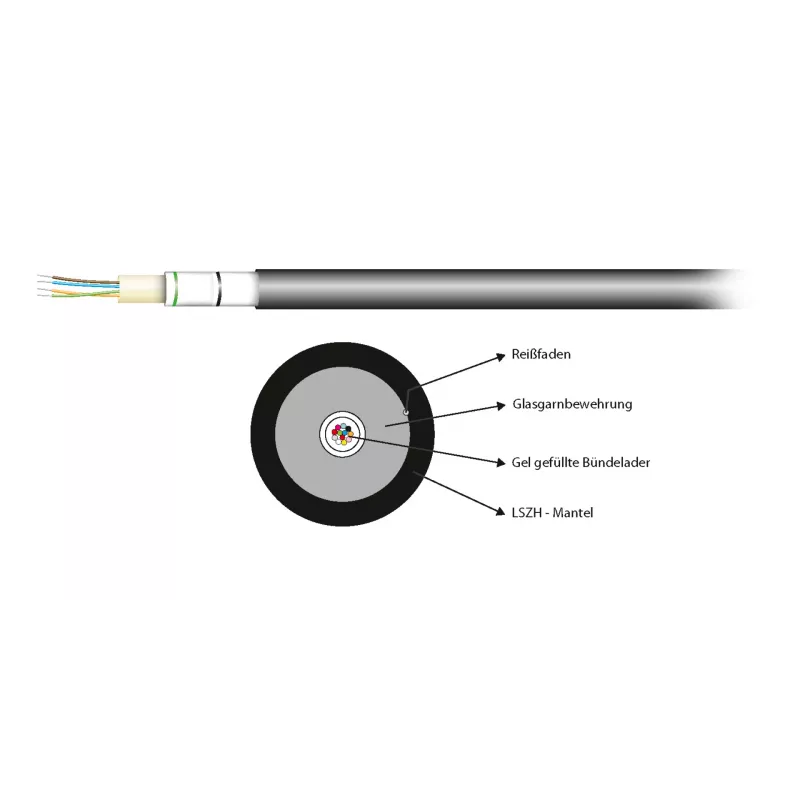

The EFB Elektronik INFRALAN U-DQ(ZN)BH 48E is a high-quality, loose tube single-mode fiber optic cable designed for universal indoor/outdoor use. With 48 fibers, 9/125µm core/cladding, and ITU-T G.657.A bend-insensitive technology, it ensures reliable data transmission in demanding environments. The black LSZH (Low Smoke Zero Halogen) sheath provides enhanced safety, while CPR Eca classification guarantees fire performance compliance.

Advantages

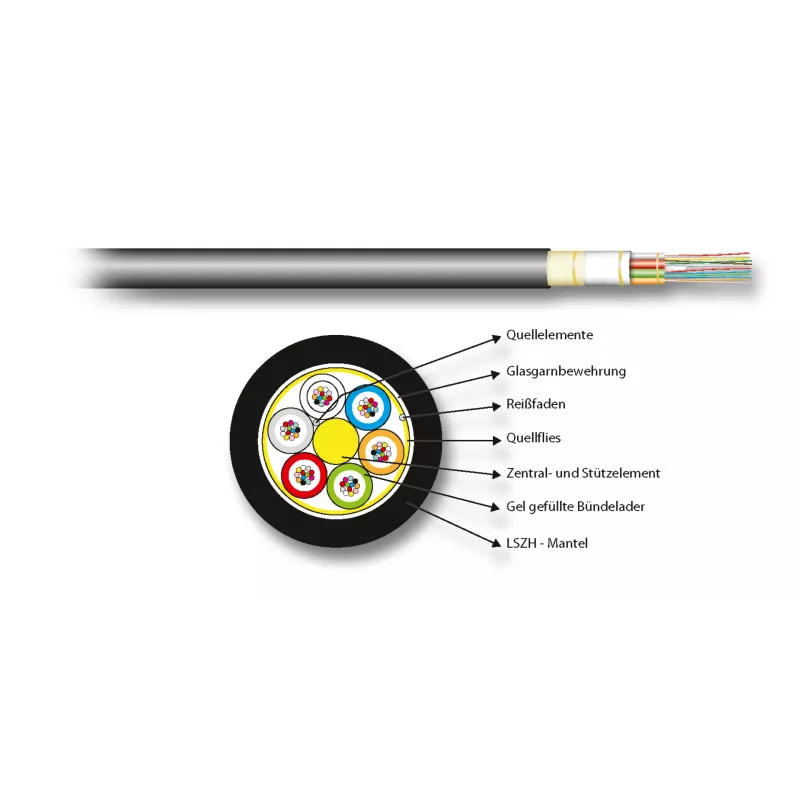

Bend-insensitive fibers reduce signal loss during installation and operation. Non-metallic tensile strength elements and rodent protection ensure durability. Water blocking swelling tape provides longitudinal protection. Suitable for a wide temperature range from -40°C to +70°C.

Suitable for

• Indoor and outdoor fiber optic installations
• Data centers, telecommunications, and enterprise networks
• Applications requiring LSZH safety and CPR Eca compliance

Key specifications

• Fiber Count: 48
• Fiber Type: Single-mode 9/125µm
• Fiber Standard: ITU-T G.657.A
• Sheath Material: LSZH
• Sheath Color: Black
• CPR Class: Eca
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.21 dB/km @1550nm
• Operating Temperature: -40°C to +70°C

Recommendations

For optimal performance, use with appropriate connectors and splicing equipment. Ensure proper bending radius during installation (20x outer diameter) and operation (10x outer diameter).
