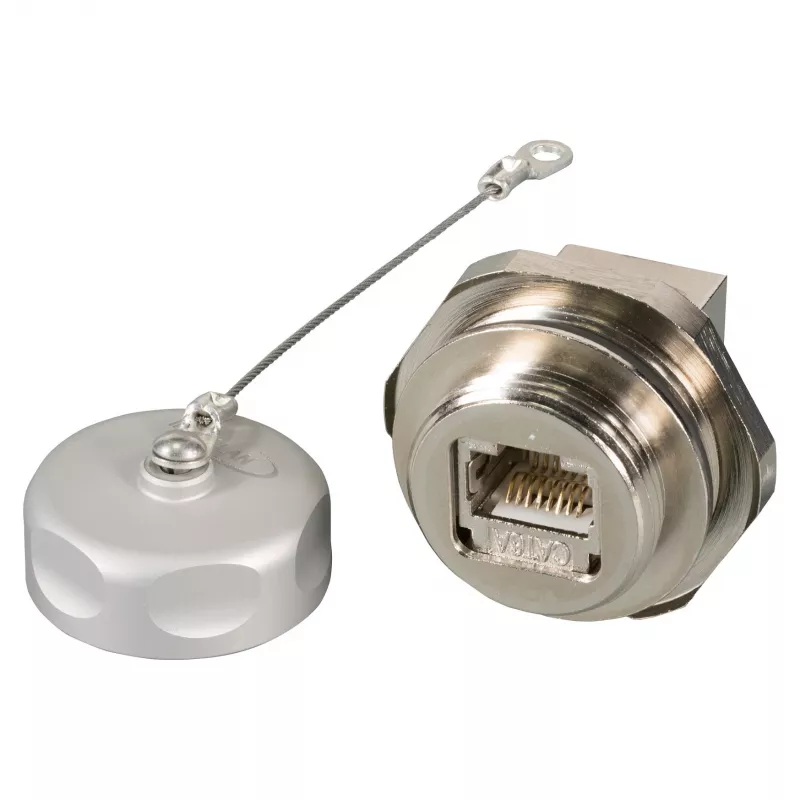

EFB Elektronik IP67DFKRJ45FL Cat.6A accoppiatore passante RJ45, M25, IP67, schermato

The EFB Elektronik IP67DFKRJ45FL is a robust RJ45 feed-through coupler designed for reliable Ethernet connections in harsh industrial environments. This Cat.6A shielded coupler ensures high-speed data transmission up to 10 Gigabit Ethernet and is ideal for panel mount applications with M25 thread.

Advantages

IP67 protection when mated ensures dust and water resistance. Nickel-plated brass housing provides durability and corrosion resistance. Supports 10GBASE-T and 500 MHz bandwidth for future-proof networking.

Suitable for

• Industrial Ethernet installations requiring IP67 protection
• Panel feed-through applications with M25 cutout
• Shielded cabling systems (STP/FTP)

Key specifications

• Product Type: RJ45 Feed-Through Coupler
• Ethernet Category: Cat.6A
• IP Protection Rating: IP67 (when mated)
• Mounting Type: Panel Mount
• Thread Size: M25 x 1.5
• Connector Type: RJ45 Female to RJ45 Female
• Shielding: Shielded (STP/FTP compatible)
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency Bandwidth: Up to 500 MHz
• Wiring: 1:1 straight-through
• Housing Material: Nickel-plated brass
• Operating Temperature: -20°C to +70°C
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Panel Cutout Diameter: 25.2 mm
• Max Panel Thickness: 4 mm
• Contact Material: Phosphor Bronze, Gold Plated

Recommendations

For optimal performance, use with Cat.6A shielded cables and ensure proper mating for IP67 seal. Suitable for industrial control cabinets and outdoor enclosures.
