EFB ELEKTRONIK rack server 19" PRO 24HE, 800x1200 mm, porta anteriore e posteriore a un'anta, RAL 7035

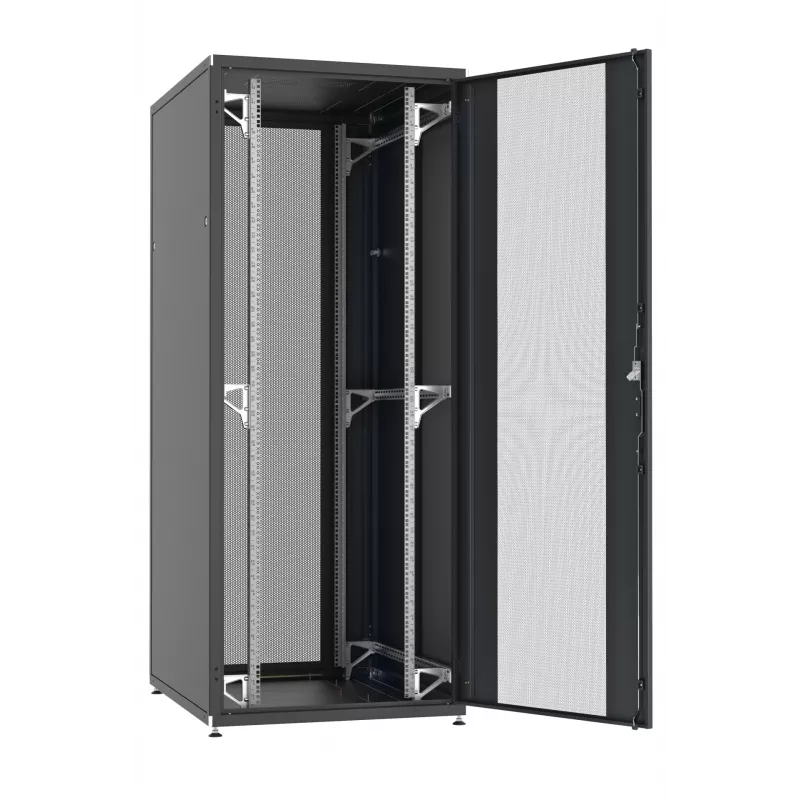

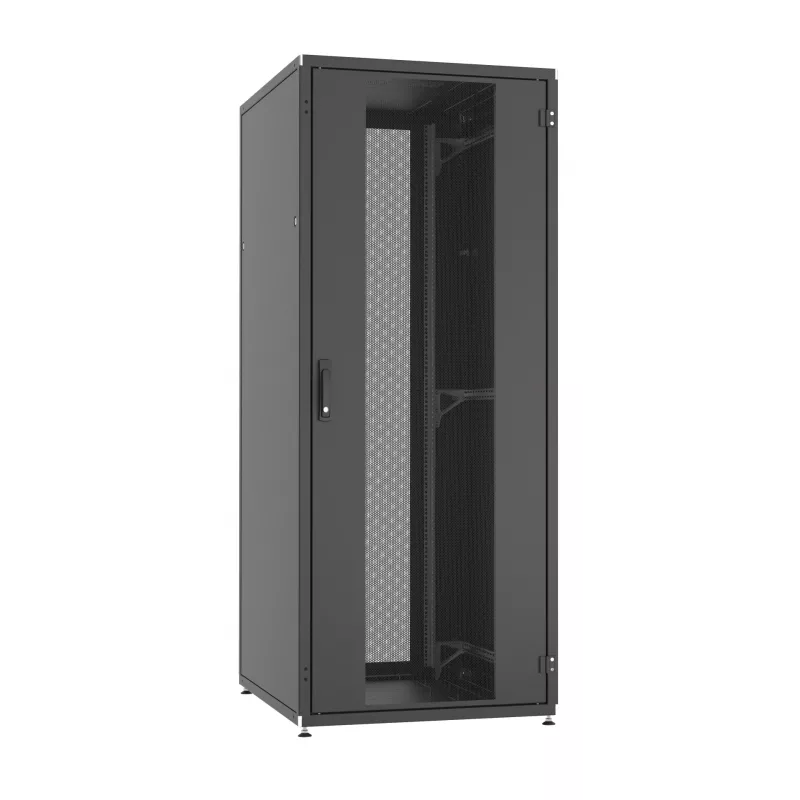

The EFB ELEKTRONIK PRO-2482GR.P1 is a high-quality 19-inch server rack designed for professional data center and network environments. With 24 rack units (24U) of space, an external width of 800 mm, and a depth of 1200 mm, this rack offers ample room for servers, switches, and other IT equipment. The rack features a light grey (RAL 7035) finish and includes single-section perforated steel doors on both front and rear, ensuring optimal airflow and security. Removable and lockable side panels provide easy access for cable management and maintenance. The rack is pre-assembled and comes with adjustable mounting rails, levelling feet, and castors for flexible installation.

Advantages

Robust construction with a static load capacity of 800 kg ensures reliable support for heavy equipment. Perforated doors promote efficient cooling, while lockable doors and side panels enhance security. The adjustable mounting rails allow for flexible depth positioning to accommodate various device sizes. Pre-assembled design saves time during setup.

Suitable for

• Data centers and server rooms requiring a 24U 19-inch rack
• Network cabinets for switches, patch panels, and UPS systems
• IT infrastructure where security and ventilation are critical

Key specifications

• Rack Standard: 19-inch
• Rack Units: 24U
• External Dimensions (W x D x H): 800 x 1200 x 1200 mm
• Colour: Light Grey (RAL 7035)
• Front/Rear Door: Single-section, perforated steel, lockable
• Side Panels: Removable, lockable
• Material: Steel sheet
• Static Load Capacity: 800 kg
• IP Protection Class: IP20

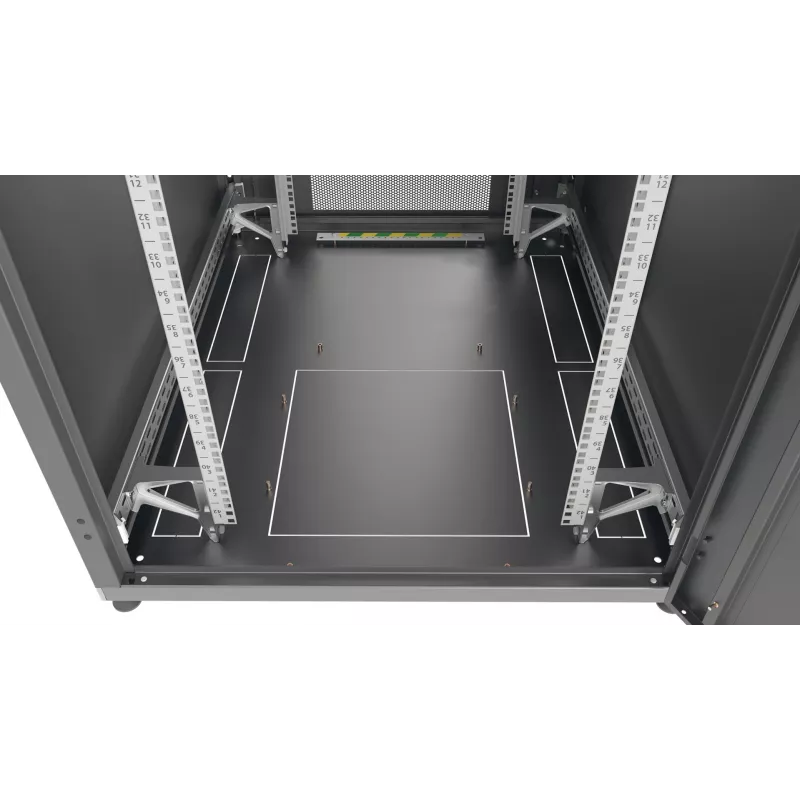

• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Adjustable depth, front and rear

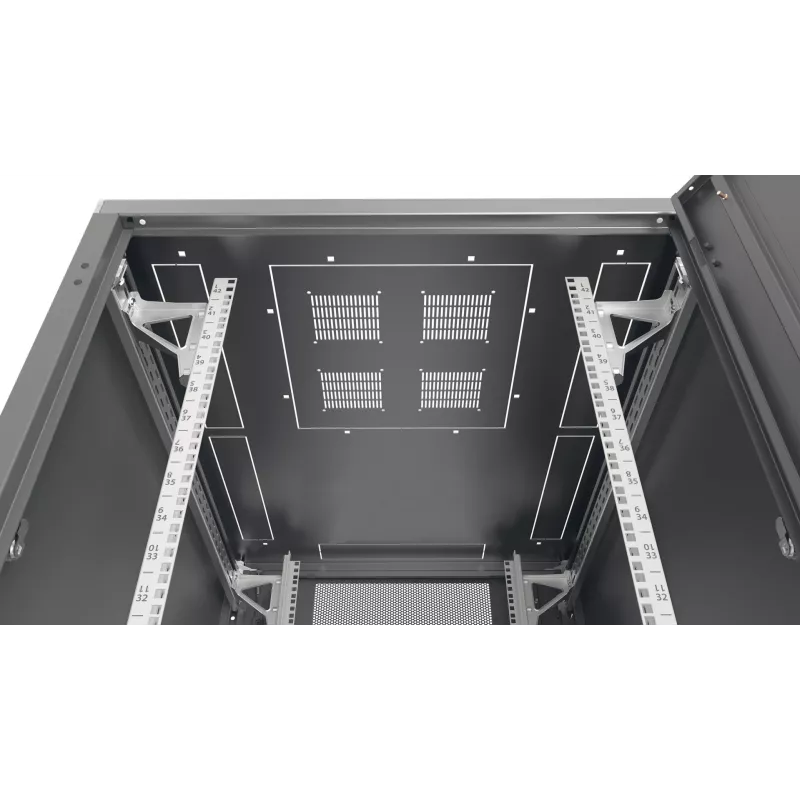

• Ventilation: Passive ventilation, prepared for active fan units
• Feet/Castors: Levelling feet and castors included
• Assembly: Pre-assembled
• Compliance: RoHS compliant

Recommendations

This server rack is ideal for professionals seeking a durable and secure enclosure for 19-inch equipment. Its 800 kg load capacity and adjustable rails make it suitable for a wide range of applications. Ensure proper ventilation and cable management for optimal performance.
