EK Water Blocks Raffreddatore alluminio argento 16,1 mm 192 mm 112 mm

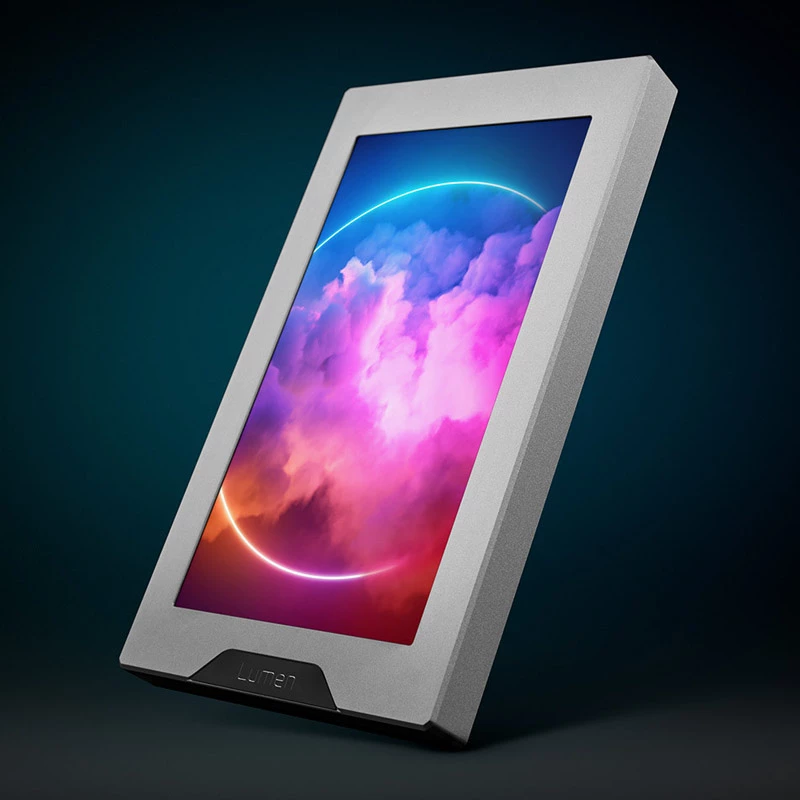

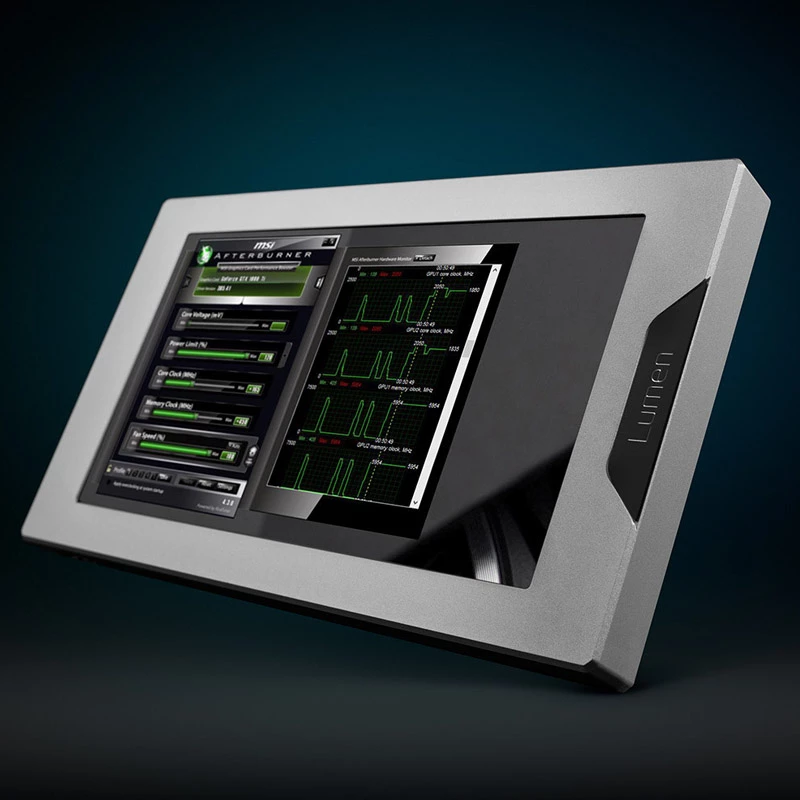

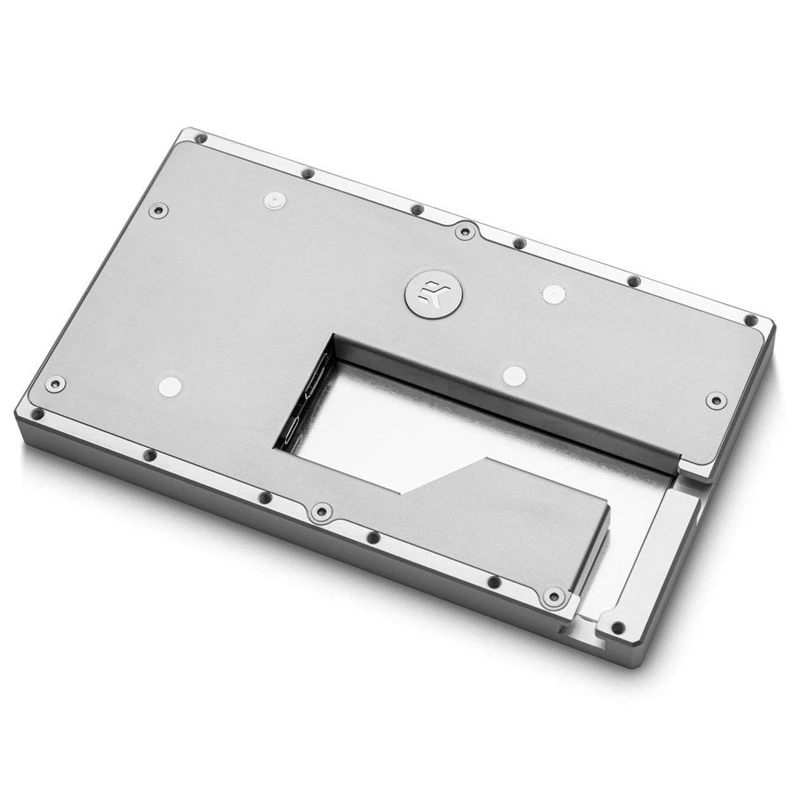

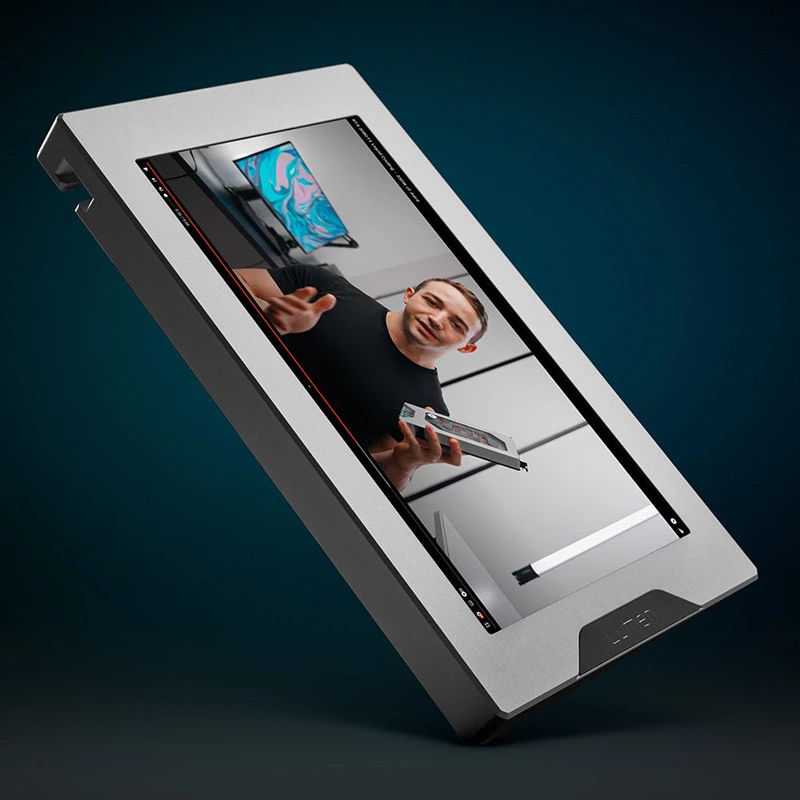

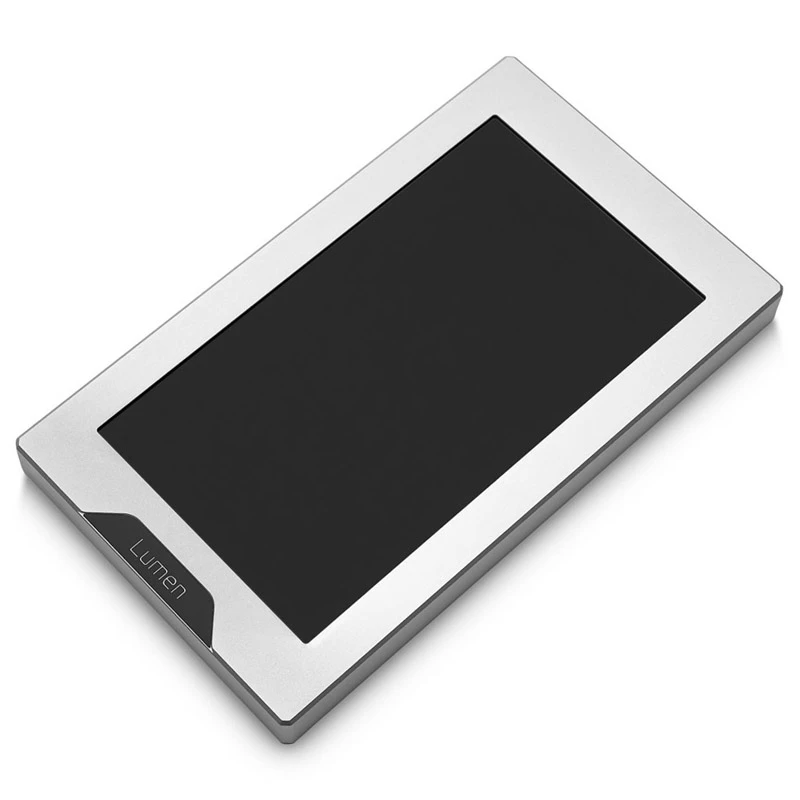

The EK-Quantum Lumen 7" LCD - Silver is a 7-inch IPS monitor designed for integration into liquid-cooled PC systems or for use as an external display. Recognized by the operating system as an additional desktop, the screen can show system telemetry such as component and coolant temperatures, fan RPM, core frequency, or any other content you choose. The display has a 1024 x 600 SVGA resolution, an IPS panel for wide viewing angles and accurate colors, and connects via included HDMI 2.0 and USB cables for both internal and external installation. The frame is CNC-machined from a single 20 mm thick aluminum piece and finished in anodized silver, with rear grooves and notches for clean cable routing.

Advantages

The monitor mounts on a standard 120 mm fan spacing and offers three adjustable mounting positions to move the screen up, down, or center to match case layouts. Included HDMI 2.0 and USB (Type-A and Type-C) connections allow use inside the case or as an external monitor. The IPS panel delivers vivid colors and stable viewing angles while the solid aluminum frame provides durable, precise mounting and improved cable management.

Suitable for

• Monitoring CPU, GPU and coolant temperatures and fan speeds
• Displaying system statistics, custom widgets, or dashboards
• In-case installation on 120 mm fan mounts or external desktop use

Key specifications

• Screen size: 7 inches (diagonal)
• Panel type: IPS
• Resolution: 1024 x 600 (SVGA)
• Input: HDMI 2.0 (cable included)
• USB: Internal Type-A USB 2.0 and USB Type-C (cables included)
• Frame material: CNC-machined 20 mm thick aluminum, anodized silver
• Frame dimensions: 195 mm x 115 mm
• Mounting: Compatible with 120 mm fan spacing, three adjustable positions; optional EK-Loop Angled Bracket 120 mm for 90° rotation

How to use

Install the monitor into a compatible PC case using the 120 mm fan mounting holes, selecting one of the three positions to fit your layout. For in-case operation connect the included HDMI cable to the GPU and the internal Type-A USB 2.0 to a motherboard USB header for touch/OS recognition. For external use, connect via the included HDMI and USB Type-C cable to the host device. After connection the operating system will detect the display as an additional desktop; configure display settings and place monitoring software or widgets to show temperatures, fan RPM, frequencies, or other preferred content.

Recommendations

Place the monitor where airflow and component access are not obstructed; route cables through the rear grooves for tidy cable management. Use compatible 120 mm mounting points or the EK-Loop Angled Bracket if you require rotated or alternate orientations.
