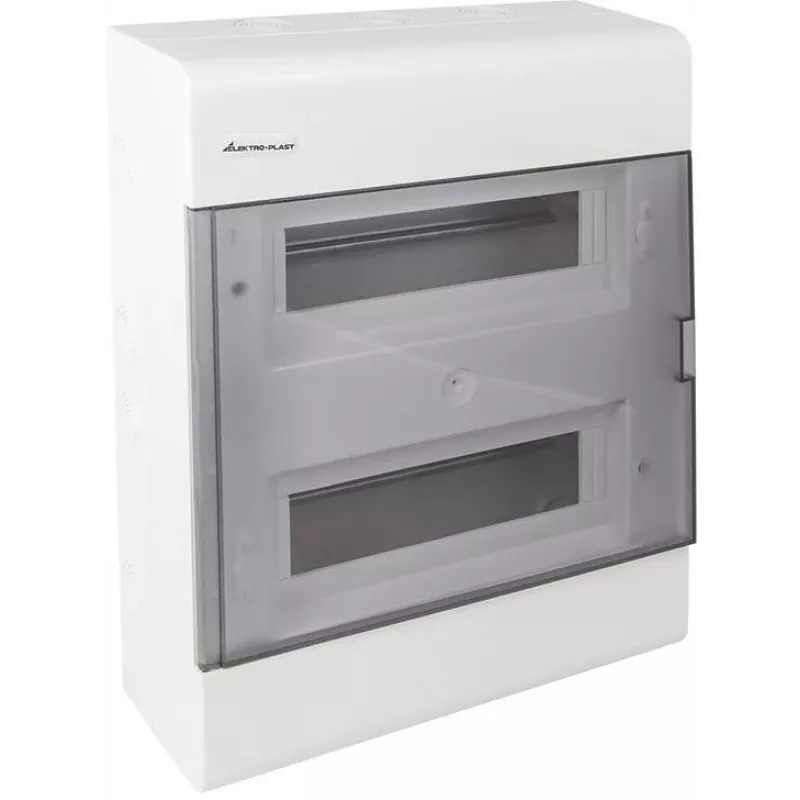

ELEKTRO-PLAST OPATÓWEK SRn-24 quadro da parete 2x12 moduli (N+PE) IP40

The ELEKTRO-PLAST OPATÓWEK SRn-24 is a high-quality surface-mounted modular distribution board designed for efficient and safe electrical distribution in residential and commercial indoor environments. With a capacity of 24 modules arranged in 2 rows of 12, this board provides ample space for circuit breakers, RCDs, and other modular devices. It comes pre-equipped with neutral (N) and earth (PE) busbars, simplifying installation and ensuring reliable connections.

Advantages

Robust construction from high-quality ABS plastic ensures durability and long service life. The transparent tinted door allows for easy visual inspection of the installed devices while maintaining a neat appearance. The IP40 rating protects against ingress of solid objects larger than 1 mm, making it suitable for indoor use. Impact resistance IK07 provides protection against mechanical impacts. Compliance with PN-EN 62208 and PN-EN 61439-3 standards guarantees safety and performance.

Suitable for

• Residential electrical distribution
• Commercial buildings
• Industrial control panels
• Lighting and power distribution

Key specifications

• Installation type: Surface-mounted
• Number of modules: 24 (2x12)
• Number of rows: 2
• IP rating: IP40
• Material: High-quality ABS plastic
• Colour: White (RAL 9003)
• Door type: Transparent, tinted
• Busbars included: Yes (neutral and earth)
• Neutral terminal connections: 1x25mm² + 14x16mm²
• Earth terminal connections: 1x25mm² + 14x16mm²
• Rated insulation voltage (Ui): 500V
• Rated operational voltage (Ue): 400V AC
• Max rated current (In): 63A
• Impact resistance: IK07
• Glow wire test: 650°C
• Standards compliance: PN-EN 62208, PN-EN 61439-3
• Application environment: Indoor
• Mounting: Wall
• Manufacturer series: SRn
• Cable entry: Pre-stamped knockouts

Recommendations

For optimal performance, ensure that the distribution board is installed by a qualified electrician in accordance with local regulations. The pre-installed busbars simplify wiring, but always verify compatibility with your devices.
