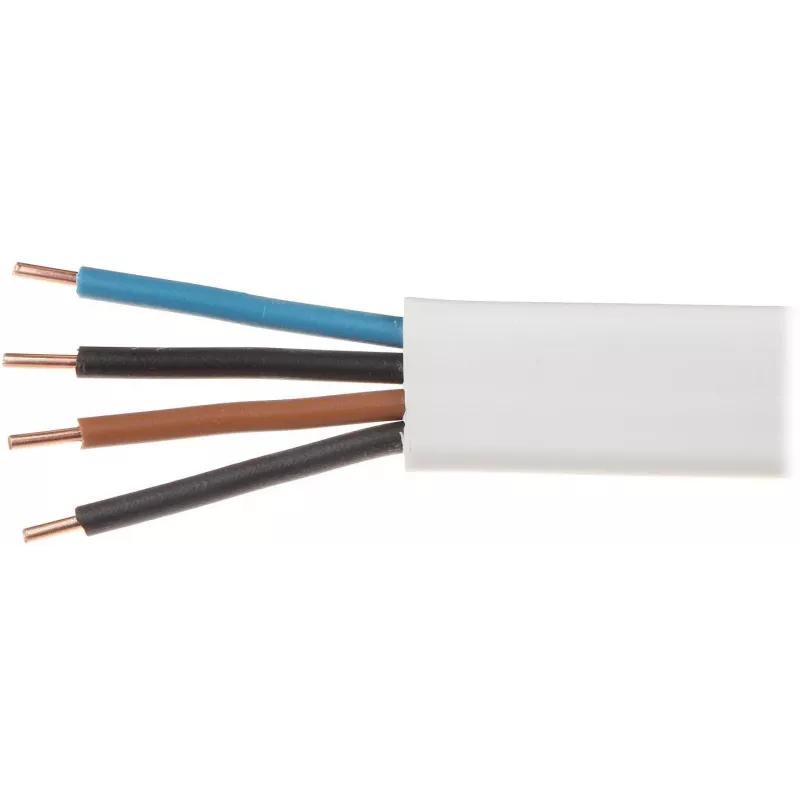

ELEKTROKABEL YDYp 4x1,5mm2 Cavo di installazione piatto 100m Bianco

The ELEKTROKABEL YDYp 4x1.5mm2 flat installation cable is designed for fixed electrical installations in dry and damp environments. With a rated voltage of 450/750V and a solid copper conductor, this cable ensures reliable power distribution for residential and commercial applications. The flat profile allows for space-saving installation, and the PVC sheath provides durability and flame retardancy.

Advantages

Flat design for easy routing in tight spaces; solid electrolytic copper conductors for excellent conductivity; flame retardant according to PN-EN 60332-1-2; suitable for surface-mounted or recessed installations.

Suitable for

• Fixed installation in dry and damp environments
• Surface-mounted or recessed wiring
• Power distribution in residential and commercial buildings

Key specifications

• Cable Type: Installation Cable
• Cable Designation: YDYp
• Conductor Material: Electrolytic Copper
• Conductor Type: Solid (Single-wire)
• Number of Cores: 4
• Nominal Cross-Sectional Area per Core: 1.5 mm²
• Rated Voltage (U0/U): 450/750 V
• Insulation Material: PVC
• Sheath Material: PVC
• Cable Shape: Flat
• Cable Length: 100 m
• Sheath Color: White
• Core Colors: Brown, Black, Grey, Blue
• Maximum Conductor Temperature: +70°C
• Operating Temperature Range (Fixed Installation): -30°C to +70°C
• Standard: PN-EN 50525-2-31
• Fire Performance: Flame retardant according to PN-EN 60332-1-2

Recommendations

Ensure compliance with local electrical regulations. This cable is intended for fixed installations only. Do not use for flexible connections or outdoor applications without additional protection.
